LOWER UNIT - 6-1190-826148R2 MARCH 1997
Gear Housing Removal
WARNING
To prevent accidental engine starting, remove
(and isolate) spark plug leads from spark plugs
before removing gear housing.
1. Remove (and isolate) spark plug leads from
spark plugs.
2. Shift into NEUTRAL.

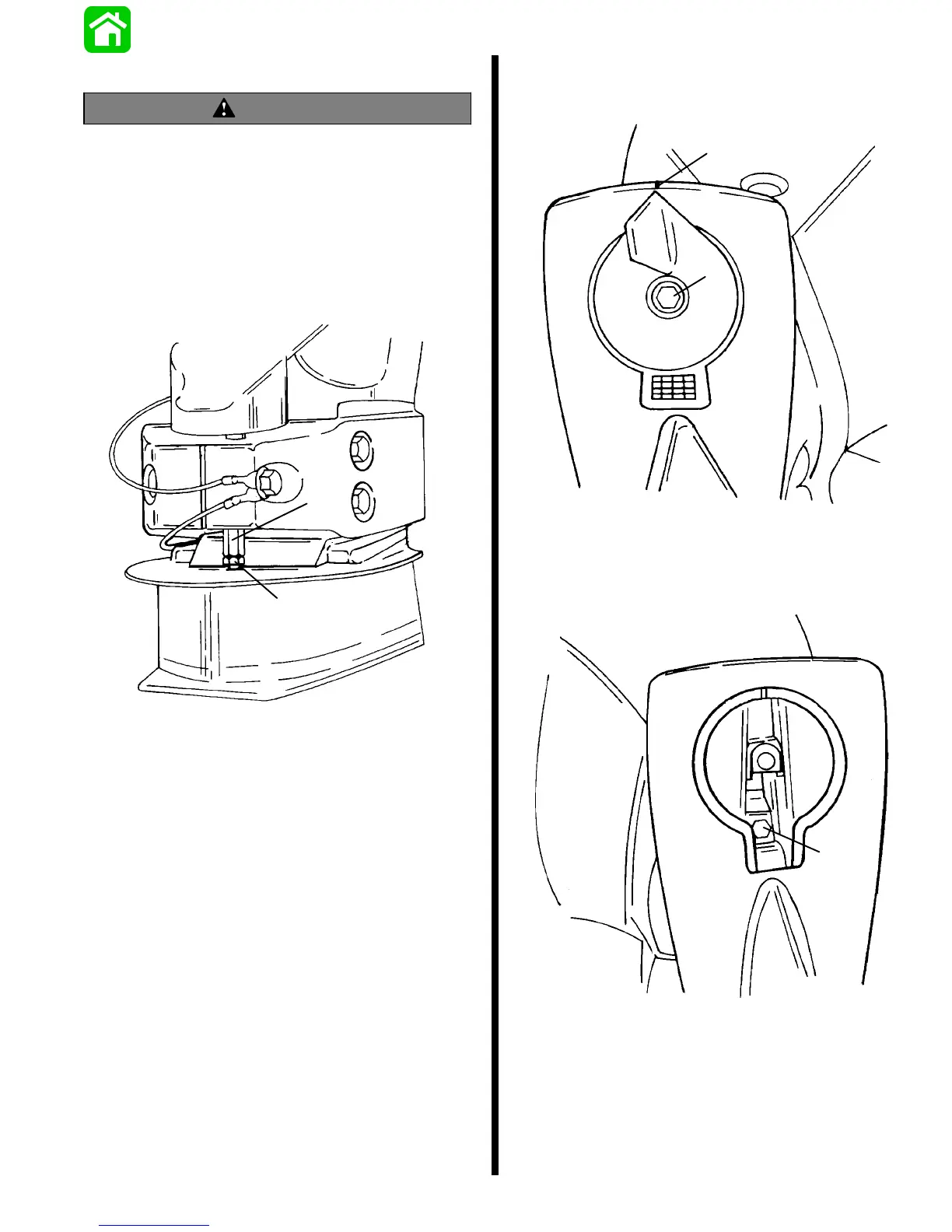

3. Loosen jam nut. Unscrew attaching nut to separate
shift shaft.
52832
b
a
a - Jam Nut
b - Attaching Nut
4. Make a scribe line showing alignment of trim tab
to gear case and remove trim tab bolt and wash-
er.
52835
b
a
a - Bolt and Washer
b - Scribe Line
5. Remove nut and washer in trim tab cavity.
52835
a
a - Nut and Washer
