Mercury 30 - 30;40 Manual Start; Tiller Handle Ignition Diagram (S;N-0 G590000 & Above)

90-826148R2 MARCH 1997 ELECTRICAL - 2D-7

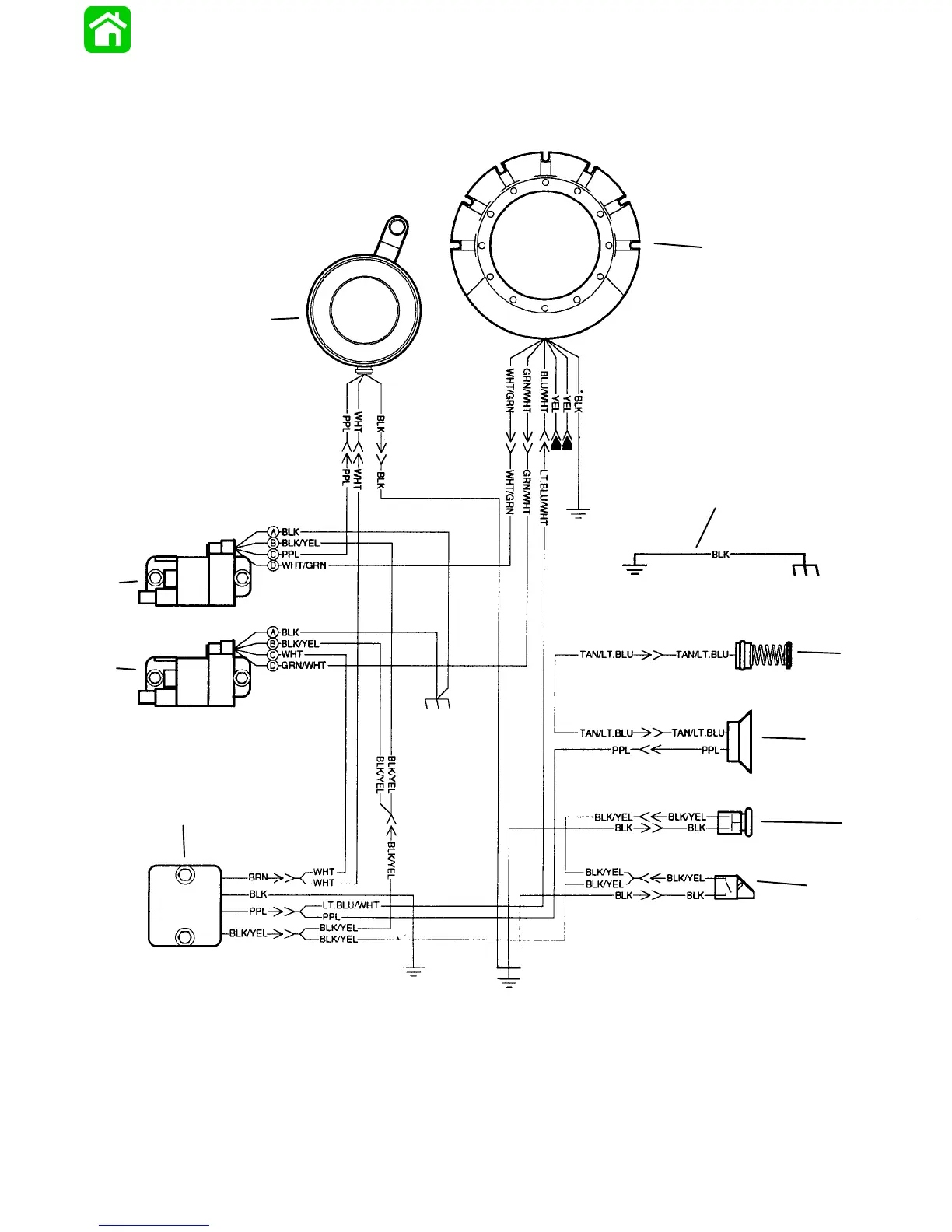

30/40 Manual Start / Tiller Handle Ignition Diagram
(S/N-0G590000 & Above)
d
c
b
a
f
g
h
i
j
e
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
Tan = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
a - Rev Limiter
b - CDM 2
c - CDM 1
d - Trigger
e - Stator
f - Electrical Plate to Block
g - Temperature Switch
h - Warning Horn
i - Push Button Stop Switch
j - Lanyard Stop Switch
