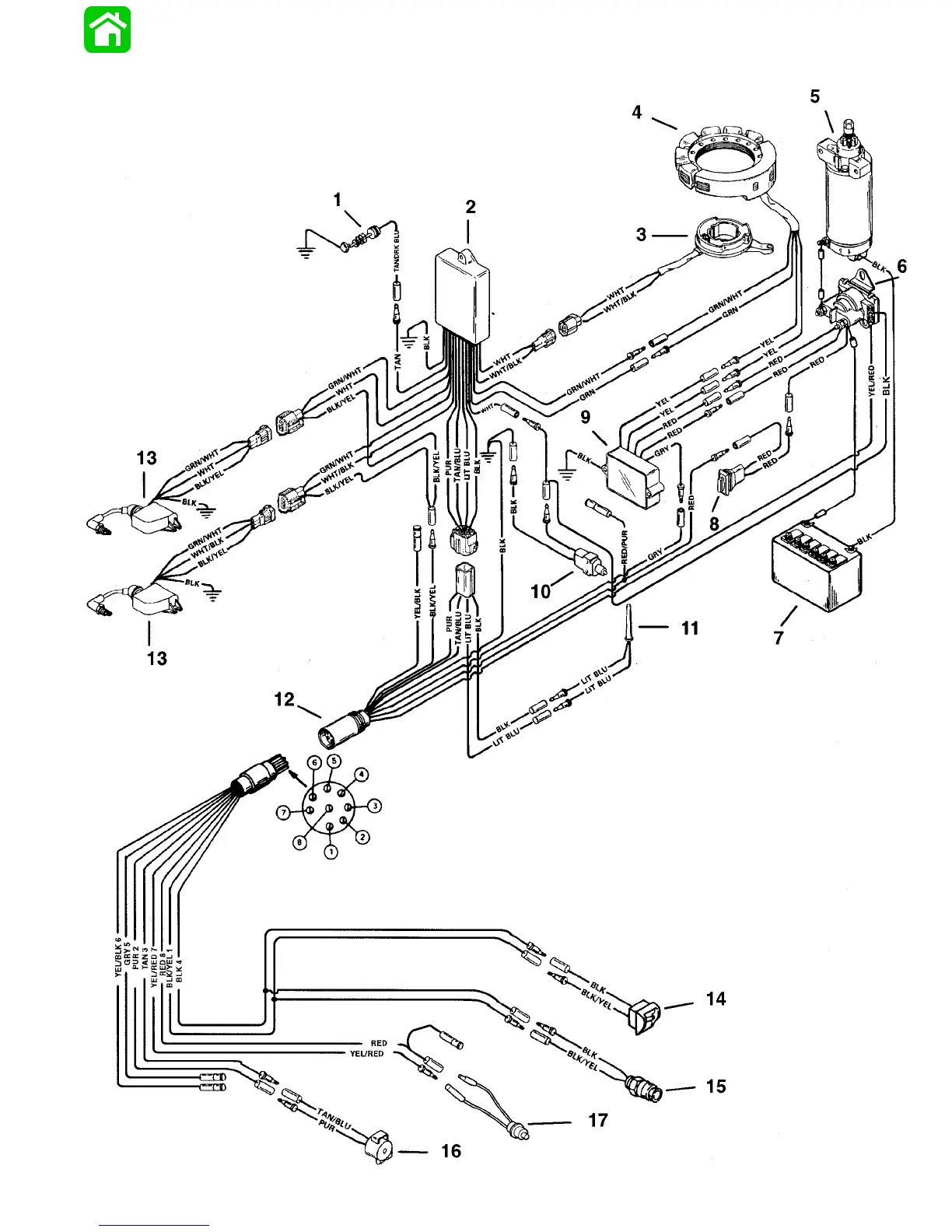

Mercury 30 - 30;40 Electric Start; Tiller Handle Ignition Diagram (S;N 0 G380074 & Below)

BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
1 - Engine Temperature Sensor
2 - Timing and Protection Module (TPM)
3 - Trigger
4 - Stator
5 - Starter
6 - Starter Relay
7 - 12VDC Battery
8 - 20 Ampere Fuse
9 - Voltage Regulator
10- Neutral Start Switch
11-Low Oil Switch
12- Engine Harness
13- Capacitor Discharge Module (CDM)
14 Emergency Stop Switch
15 Stop Button
16 Horn
17 Start Button
90-826148R2 MARCH 1997 ELECTRICAL - 2D-3
30/40 Electric Start / Tiller Handle Ignition Diagram
(S/N 0G380074 & Below)
