Mercury 30 Service Manual

90-826148R2 MARCH 1997 ELECTRICAL - 2A-19

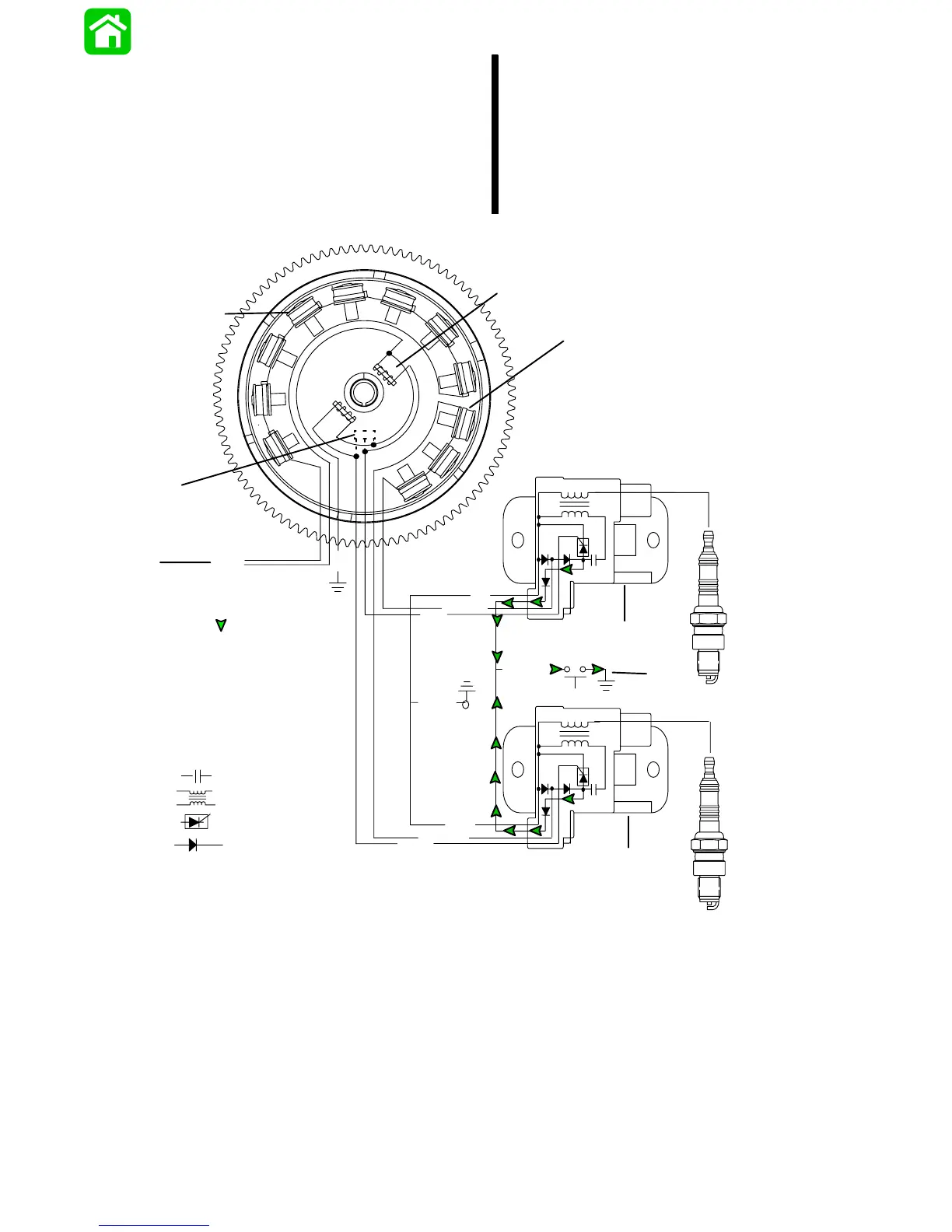

Stop Circuit
To stop the engine, the stop switch is closed al-
lowing the capacitor charge current from the sta-
tor to drain directly to ground. NOTE: The CDM
contains a zener diode (not shown for clarity).
This diode prevents overcharging of the capaci-
tor (and possible failure) if the SCR does not re-
ceive a trigger pulse.
N
S
S
S
S
S
S
N
N
N
N
N
SN
BLK
GRN/WHT
WHT/GRN
YEL
YEL
BLK
WHT
PPL
BLK/YEL
+
+
_
_
BLK
BLK
Return Voltage
Capacitor-
Coil-
SCR-
Diode-
1
2
a
b
c
f
h
e
d
g
a - Battery Charging Coils
b - Trigger Coils
c - Capacitor Charge Coils
d - CDM #1
e - CDM #2
f - Rev. Limiter
g - Stop Switch
h - To Voltage Regulator
