Mercury 30 - Shock Function; Shock Function Return

5B-18 - MID-SECTION 90-826148R2 MARCH 1997
ÁÁ
ÁÁ
ÁÁ
Á
Á
Á
Á
Á

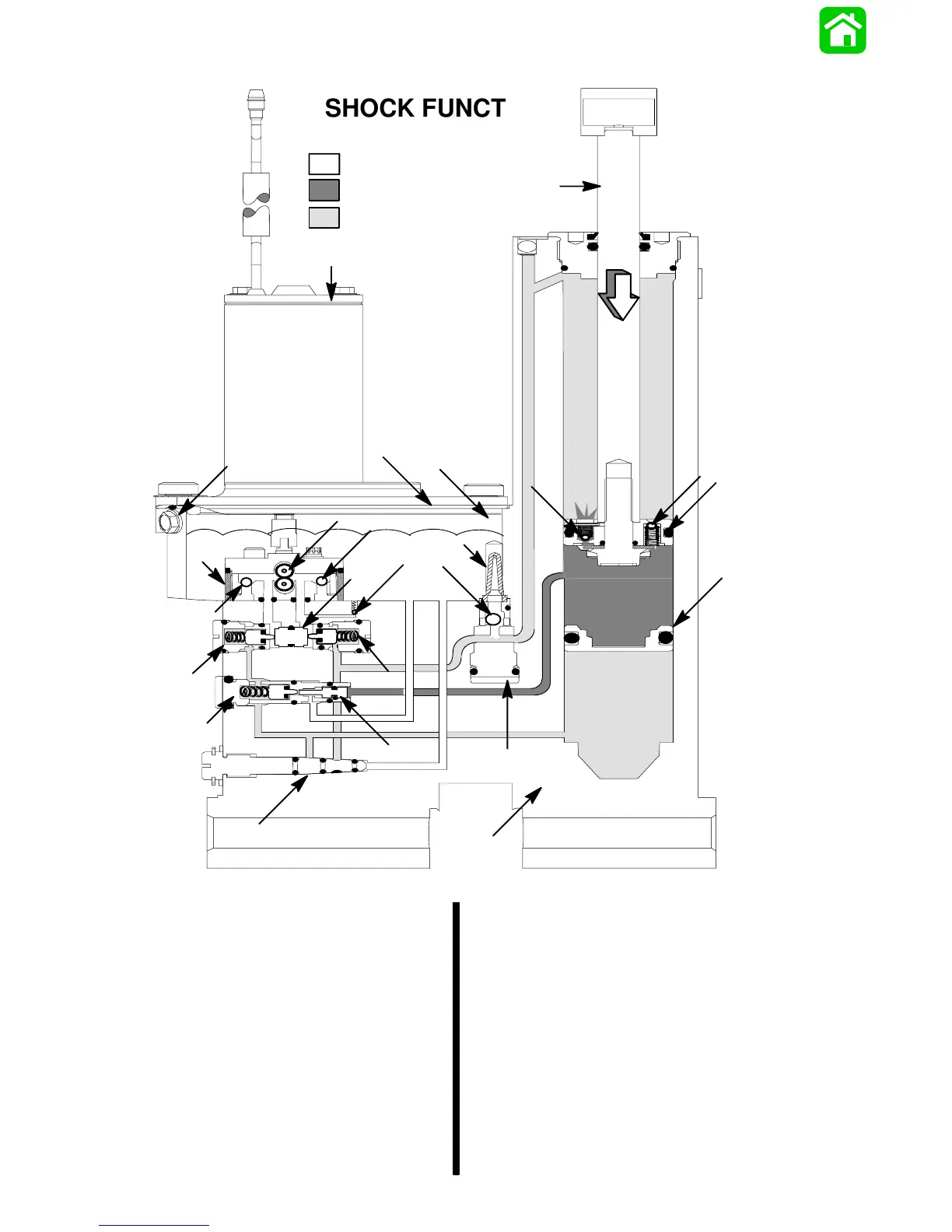

SHOCK FUNCTION
RETURN
Reservoir and Feed Oil
Oil Under Pressure
Return Oil
a
b
c
d
e
s
t
u
w
j
f
g
h
n
p
q
r
w
v
o
m
l
k
i
a - Electric Motor
b - Trim Ram
c - Impact Relief Valve
d - Shock Piston
e - Memory Piston
f - Manifold
g - Suction Seat
h - Down Pressure Operated Valve
i - Tilt Relief Actuator
j - Manual Release Valve
k - Tilt Relief Valve
l - Up Pressure Operated Valve
m- Down Circuit Feed Valve
n - Oil Pump
o - Up Circuit Feed Valve
p - Shuttle Valve
q - Down Pressure Regulating Valve
r - Check Ball
s - Reservoir Oil
t - Oil Reservoir
u - Oil Fill Cap
v - Shock Return Valve
w - Filter
