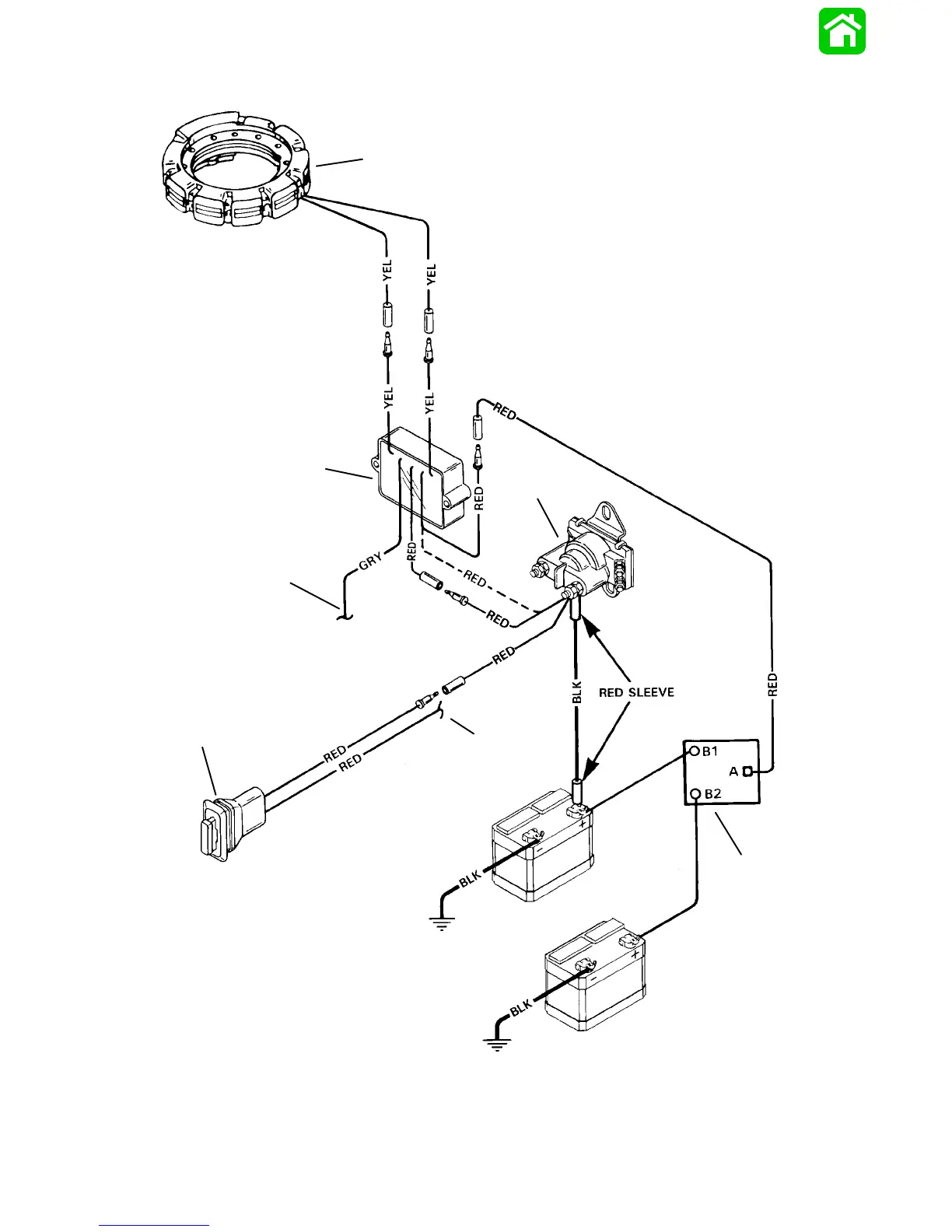

14 Ampere Stator Charging Diagram With Battery Isolator
51930
BLK = Black
GRY = Gray
RED = Red
YEL = Yellow
a
b
c
d
e
f
g
a - Stator/Alternator Assembly
b - Voltage Regulator
c - 20 Amp Fuse
d - Starter Solenoid
e - Gray Wire to Tachometer
f - Battery Isolation
g - To Engine Harness
