LOWER UNIT - 6-2190-826148R2 MARCH 1997

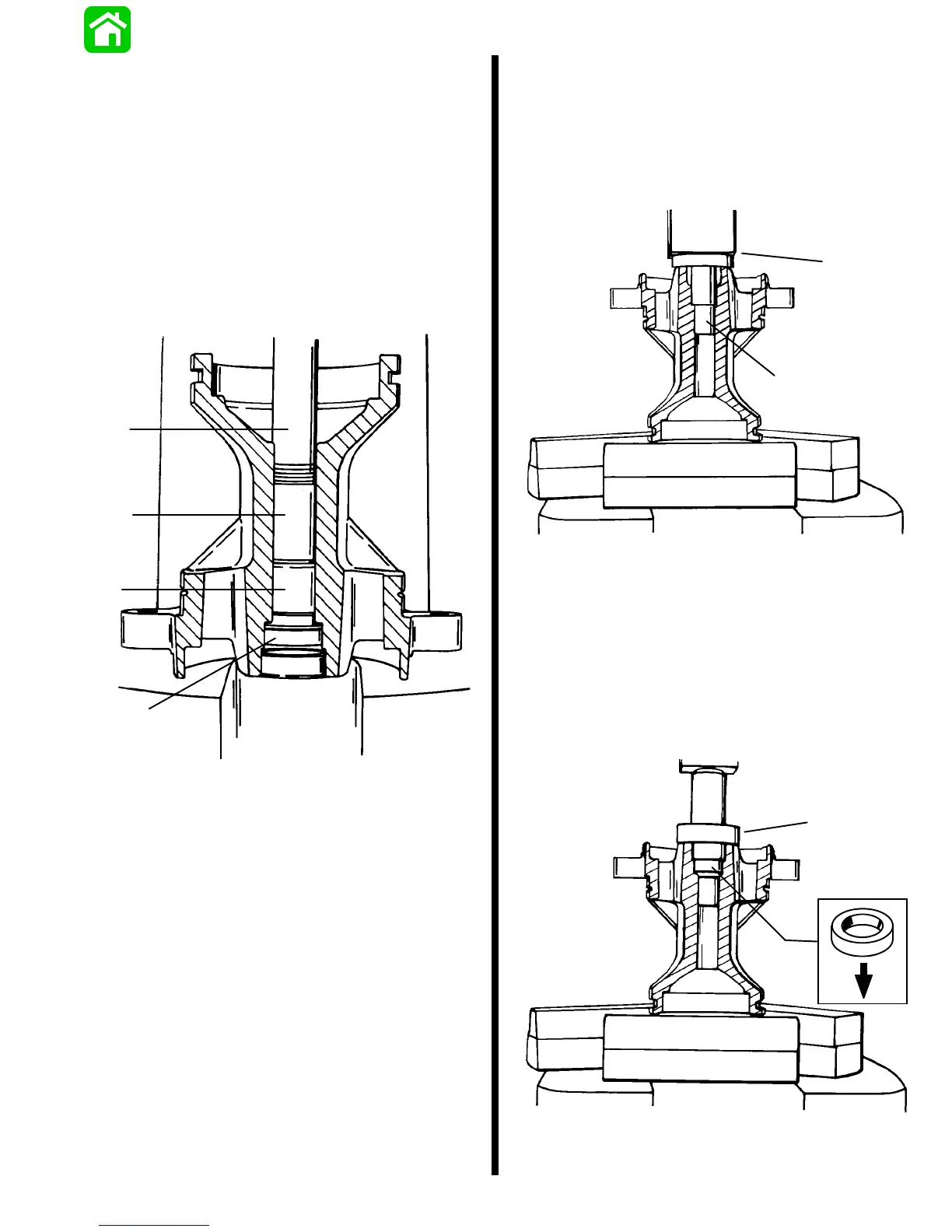

Bearing Carrier
NEEDLE BEARING
1. The condition of the carrier needle bearing can
be determined by inspecting its running surface
on the propeller shaft.
2. Iftheshaftisdiscolored(fromlackofoil)orpitted,
replace bearing and shaft.
3. Bearing can be removed by using Driver Rod
(91-37323) and Driver (91-37312). Removing
bearing will also remove both propeller shaft
seals.
51264
a
b
c
d
a - Driver Rod (91-37323)
b - Driver (91-37312)
c - Needle Bearing
d - Seals
4. Apply a light coat of Special Lubricant 101
(92-13872A1) to O.D. of bearing.
5. Install bearing using Mandrel 91-817011.
6. Press bearing into carrier until mandrel bottoms
on carrier.
52861
a
b
a - Bearing
b - Mandrel (91-817011)
7. ApplyLoctite271(92-823089--1)toO.D.ofsmall
diameter seal.
8. With seal lip FACING AWAY FROM LARGE
SHOULDER of Mandrel 91-817007, press seal
into carrier until mandrel bottoms on carrier.
52862
a
b
a - Seal
b - Mandrel (91-817007)
