Mercury 30 Service Manual

90-826148R2 MARCH 1997 IMPORTANT INFORMATION - 1D-7

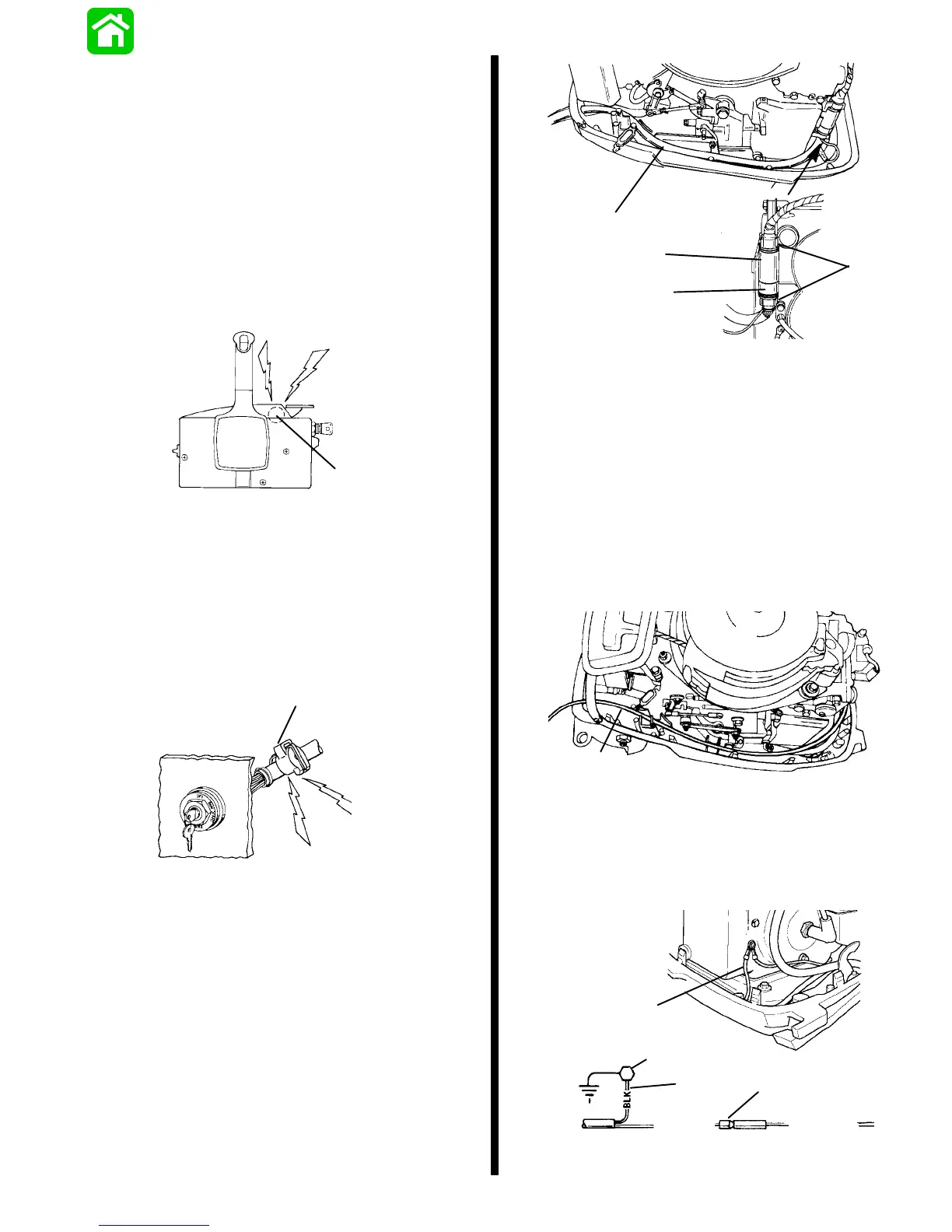

Required Side Mount
Remote Control or Ignition
Key Switch Assembly
Boats Equipped with Side Mount
Remote Control
A Quicksilver Commander 2000 series Side Mount
Remote Control equipped with a warning horn must
beusedwith this outboard.This warninghorn isnec-
essary for the engine warning system.
a
a -Warning Horn
Boats Equipped with Panel Or
Console Mount Remote Control
A Quicksilver Ignition Key/Choke Assembly
equipped with a warning horn must be used withthis
engine. This warning horn is necessary for the en-
gine warning system.
a
a - Warning Horn
Remote Wiring Connections
Electric Start Remote Control Model
1. Route the remote wiring harness to the back of
the engine block as shown.
2. Plug the remote wiring harness into the engine
wiring harness connector.
3. Push connectors into the holder.
a
b
c
a
a - Remote Wire Harness
b - Engine Wire Harness Connector
c - Holder
Manual Start Models Using
Quicksilver 2000 Series Side Mount
Remote Control
1. Route the remote control harness around the
back of the engine block as shown. Position the
harnesssothat the harnesswillnot interferewith
shift and throttle operation.
a
a - Remote Control Harness
2. Fasten the black wire from the remote control
harnesstoenginegroundandconnect theblack/
yellow from the remote control harness to the
black/yellow engine wire as shown.
BLK/YEL
BLK/YEL
a
b
a
ENGINE GROUND
a - Black Wire
b - Black/Yellow Lead

Mercury 30 Specifications

General

Horsepower	30 HP
Cylinders	3
Displacement	526 cc
Gear Shift	F-N-R
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20 in
Steering	Remote / Tiller
