Mercury 30 - Oil Pump Removal; Tilt Relief Valve Removal

90-826148R2 MARCH 1997 MID-SECTION - 5B-35
Oil Pump Removal
1. Remove oil filter and pump from manifold.
IMPORTANT: DO NOT disassemble the oil pump.
The pump is not serviceable.
e
d
a
b
c
f

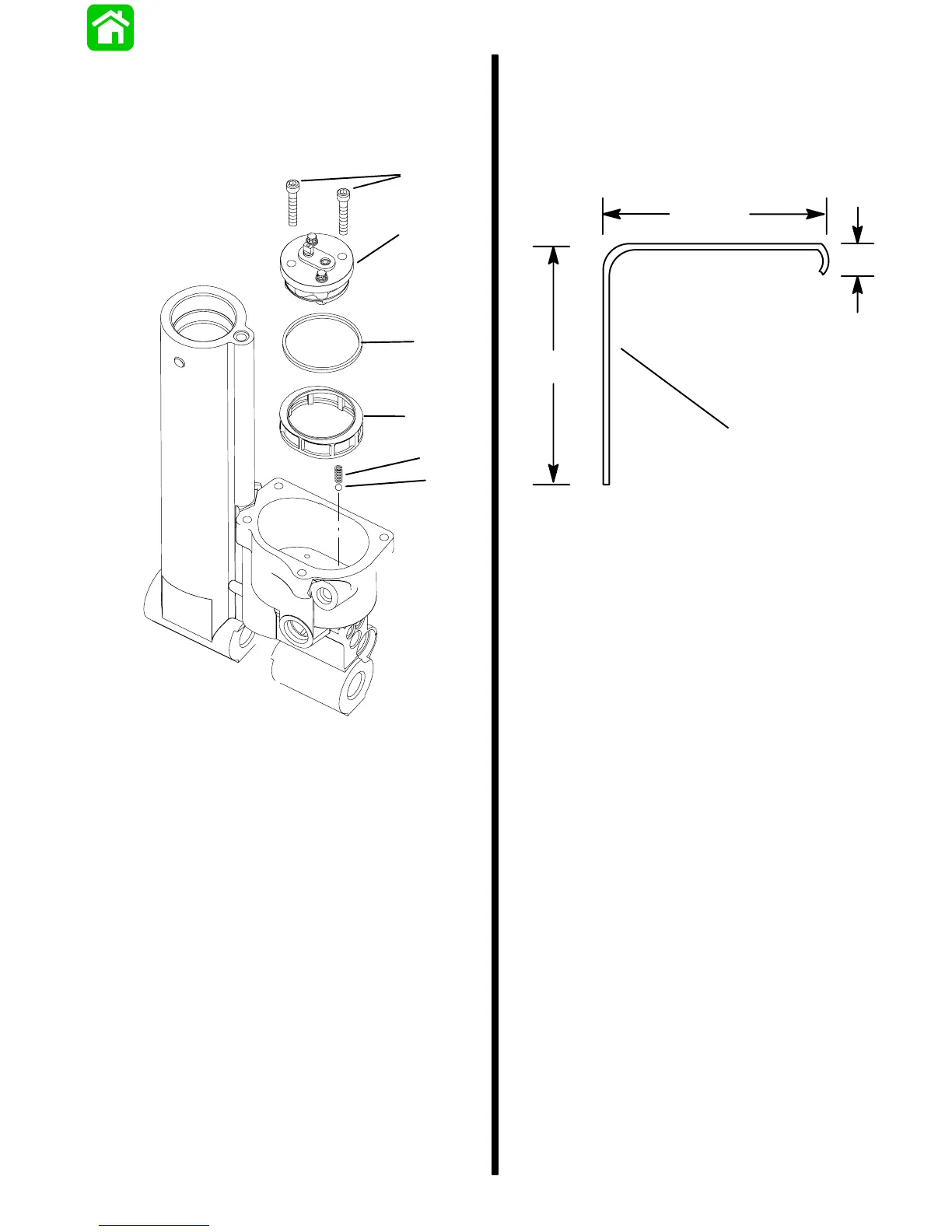

a - Screw (2)
b - Oil Pump
c - Spring
d - Filter
e - O-Ring
f - Down Relief Ball
Tilt Relief Valve Removal
NOTE: The following procedures requires the use of
a Snap-On blind hole removal tool #CG-4111 with
5/16” attachment #41-12. Or a removal tool can be
fabricated with the material and specifications listed
below.
4 1/2”
3 1/4”
1/4”
a
a - Removal Tool made from .060 Stainless Steel Rod
