Mercury 30 Service Manual

90-826148R2 MARCH 1997 ELECTRICAL - 2D-13

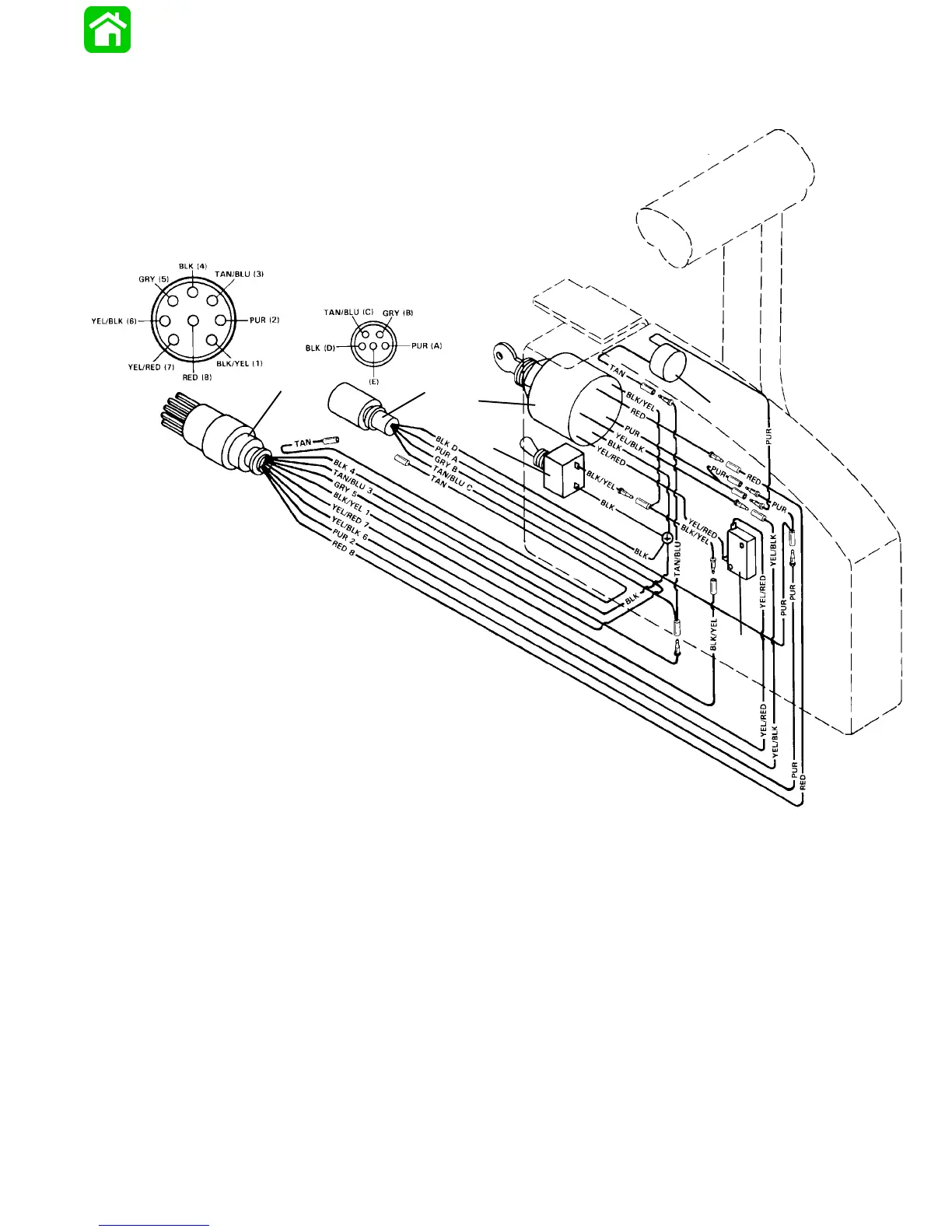

Commander 2000 Side Mount Remote Control (Electric Start
With Warning Horn) Wiring Diagram
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
a
c
d
e
f
b
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn

Mercury 30 Specifications

General

Horsepower	30 HP
Cylinders	3
Displacement	526 cc
Gear Shift	F-N-R
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20 in
Steering	Remote / Tiller
