Mercury 30 - Shock Rod Reassembly; Trim Motor Reassembly

5B-42 - MID-SECTION 90-826148R2 MARCH 1997

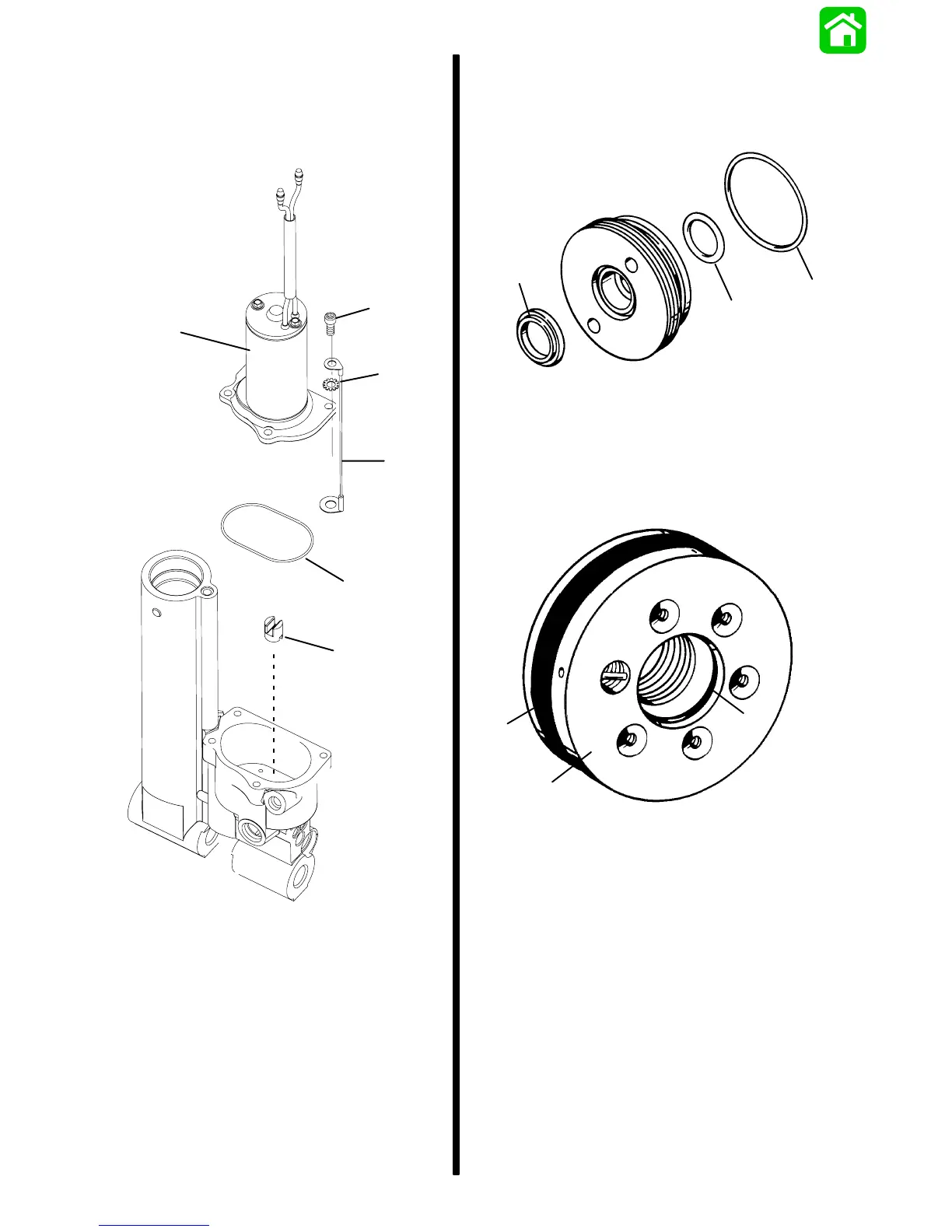

Trim Motor Reassembly
1. Align coupler between oil pump and motor.
2. Install trim motor and secure with four (4) screws.
Torque screws to 80 lb. in. (9.0 N·m).
c
f
e
d
b
a
a - Coupler
b - O-ring
c - Trim Pump Motor
d - Ground Strap
e - Lock Washer (1)
f - Screws (4) - Torque to 80 lb. in (9.0 N⋅m)
Shock Rod Reassembly
1. Install lubricated o-rings to end cap.
2. Install rod wiper.
51145
b
c
a
a - Rod Wiper
b - Inner O-ring
c - Outer O-ring
3. Install lubricated o-rings to shock piston.
51199
c
b
a
a - Shock Piston
b - O-ring
c - O-ring
