90-826148R2 MARCH 1997 IMPORTANT INFORMATION - 1B-9
Fuel Tank
Maintenance
The inside of the fuel tank should be cleaned once
eachseason.Dirtorwatermayhaveenteredthefuel
tank during refilling. Clean the tank by flushing with
clean, lead-free gasoline or kerosene.

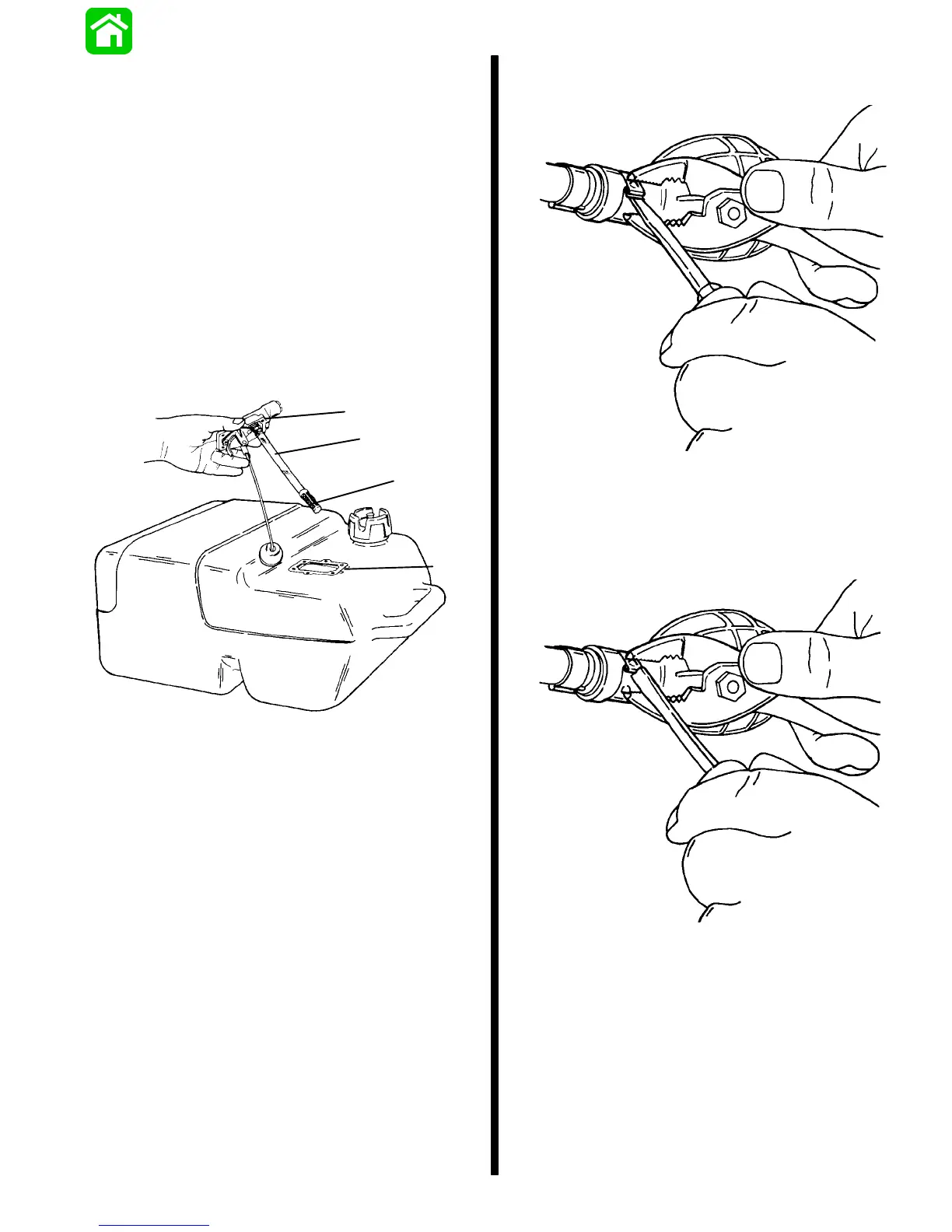

FUEL TANK FILTER
If a fuel restriction problem is encountered, the fuel
filter on end of outlet tube may be obstructed. Re-
move cover and inspect filter for varnish, dirt or de-
posits.Cleanfilterbyrinsinginclean,lead-freegaso-
line or kerosene.
a
b
c
d
51046
a - Fuel Tank Filter
b - Pick-Up Tube
c - Cover
d - Gasket
FUEL LINE AND PRIMER BULB
Periodically check fuel line and primer bulb for
cracks, breaks, restrictions or chafing. Check all fuel
line connections for tightness. All fuel line connec-
tions must be clamped securely.
Primer bulb assembly has 2 check valves: Fuel inlet
(toward tank) and a fuel outlet (toward engine).
The fuel inlet valve allows fuel to fill primer bulb but
closes to prevent fuel from returning to tank when
bulb is squeezed. The fuel outlet valve opens when
primerbulb issqueezed toallow fuelflow tocarbure-
tor,butclosesasbulbisreleasedtopreventfuelfrom
returning to primer bulb.
1. Toremovefuel line clamps,grip clampwithpliers
and bend over, lapping hook backward.
51115
2. To install fuel line clamps, grip hose clamp with
pliers and push down on hook with screwdriver
until hooks interlock.
51115
