Mercury 30 Service Manual

LOWER UNIT - 6-2390-826148R2 MARCH 1997
5. Positionshiftshaftsorampfacestowardspropel-
ler shaft.

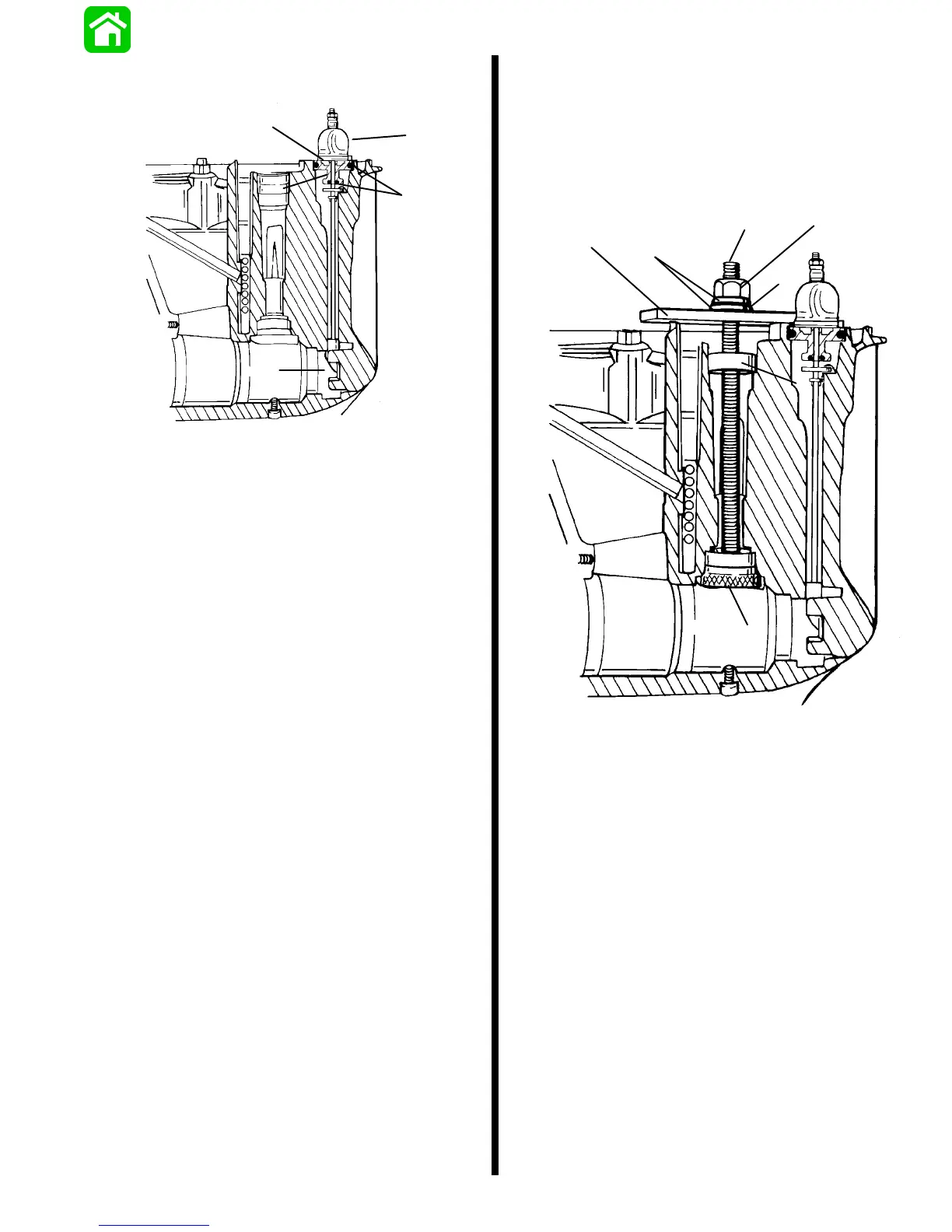

52841
a
b
c
e
d
a - O-rings
b - Carrier
c - Boot
d - Sta-strap
e - Ramp
Pinion Bearing Race
1. ApplySuperDutyGearLubricant(92-13783A24)
to O.D. of race.
2. Position race in gear housing (NUMBERS UP -
TAPERED SIDE FACING DOWN).
3. Draw race up into housing until seated.
52842
a
b
c
d
f
e
g
a - Threaded Rod (91-31229)
b - Washer (2) (12-34961)
c - Bearing (31-85560)
d - Plate (91-29310)
e - Pilot (91-825199)
f - Nut (11-24156)
g - Mandrel (91-825198)
