Mercury 30 Service Manual

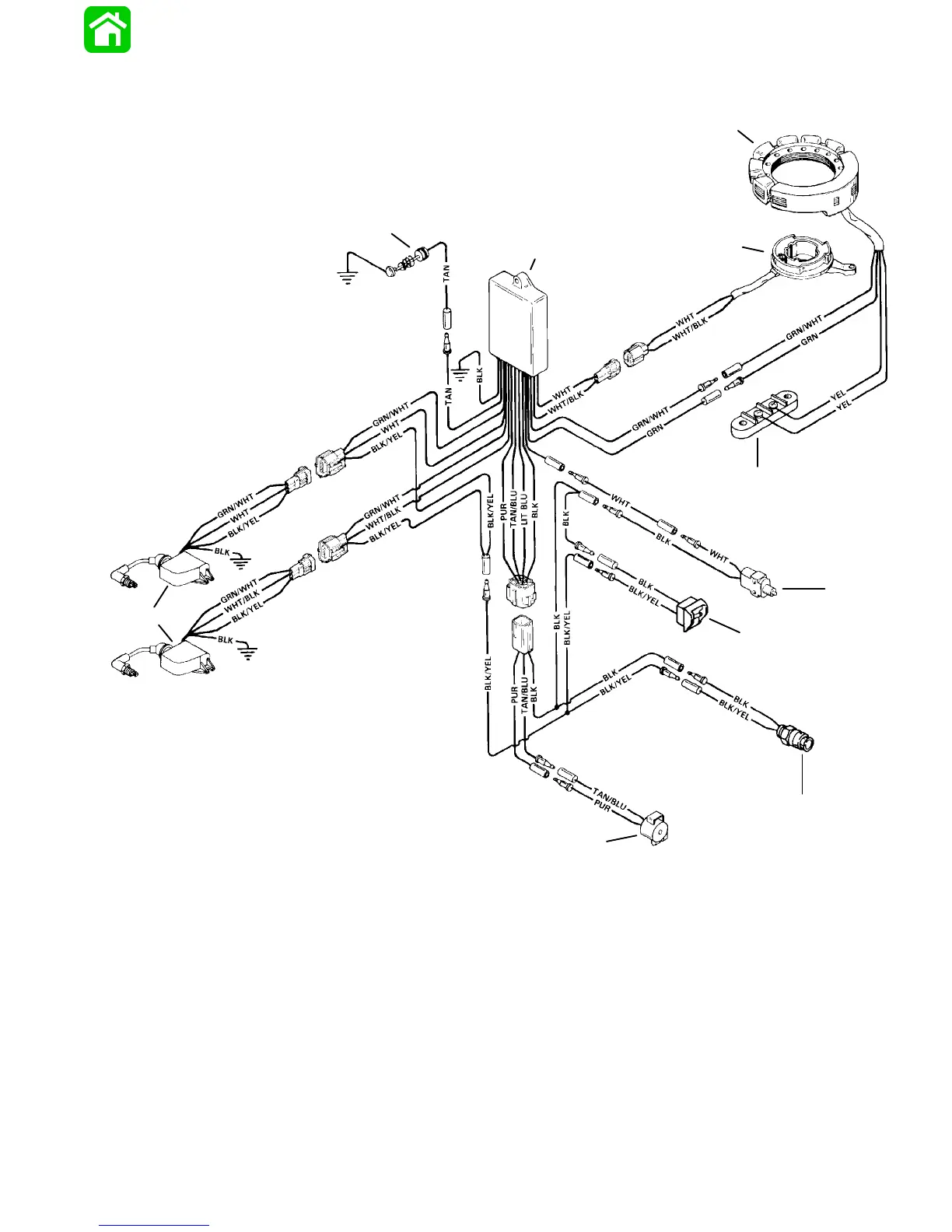

1 - Engine Temperature Sensor
2 - Timing and Protection Module (TPM)
3 - Trigger
4 - Stator
5 - Terminal Block
6 - Neutral Start Switch
7 - Emergency Stop Switch
8 - Stop Button
9 - Horn
10- Capacitor Discharge Module (CDM)
52618
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
Tan = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
1
2 3
4
5
6
7
8
9
10
90-826148R2 MARCH 1997 ELECTRICAL - 2D-1
30/40 Manual Start Ignition Diagram (S/N 0G380074 & Below)

Mercury 30 Specifications

General

Horsepower	30 HP
Cylinders	3
Displacement	526 cc
Gear Shift	F-N-R
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20 in
Steering	Remote / Tiller
