Mercury 30 Service Manual

90-826148R2 MARCH 19972D-24 - ELECTRICAL

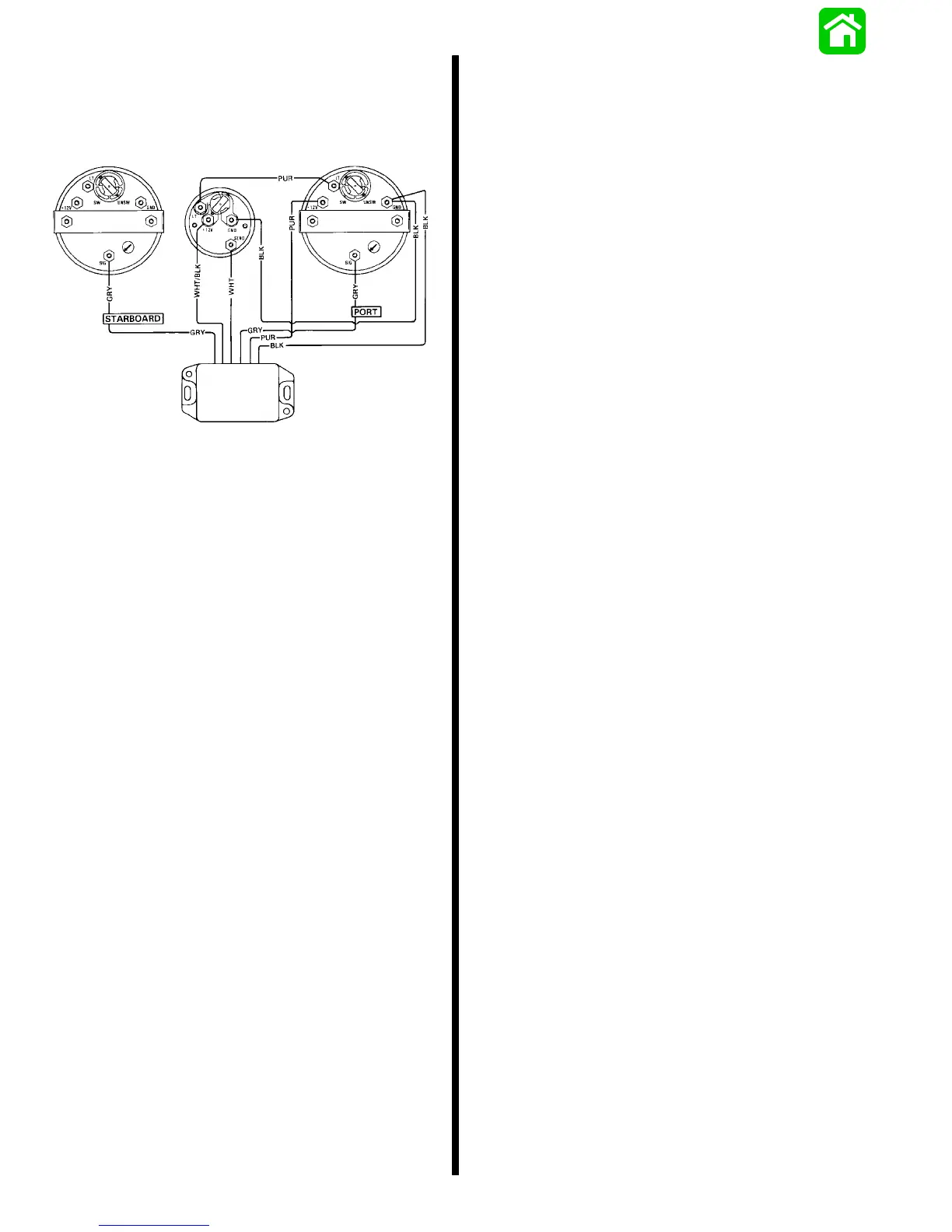

Wiring Diagram -- Gauge needle to point toward
fast running engine
Tachometer
Starboard Engine
Synchronizer
Gauge
Tachometer
Port Engine
Synchronizer
Box
52565
CLEANING GAUGES
Clean gauge by washing with fresh water to remove
sand and salt deposits. Wipe off with a soft cloth
moistened with water. The gauge may be scored or
damaged if wiped with abrasive material (sand, sa-
line or detergent compounds, etc.) or washed with
solvents such as trichloroethylene, turpentine, etc.

Mercury 30 Specifications

General

Horsepower	30 HP
Cylinders	3
Displacement	526 cc
Gear Shift	F-N-R
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20 in
Steering	Remote / Tiller
