90-826148R2 MARCH 1997 MID-SECTION - 5B-45

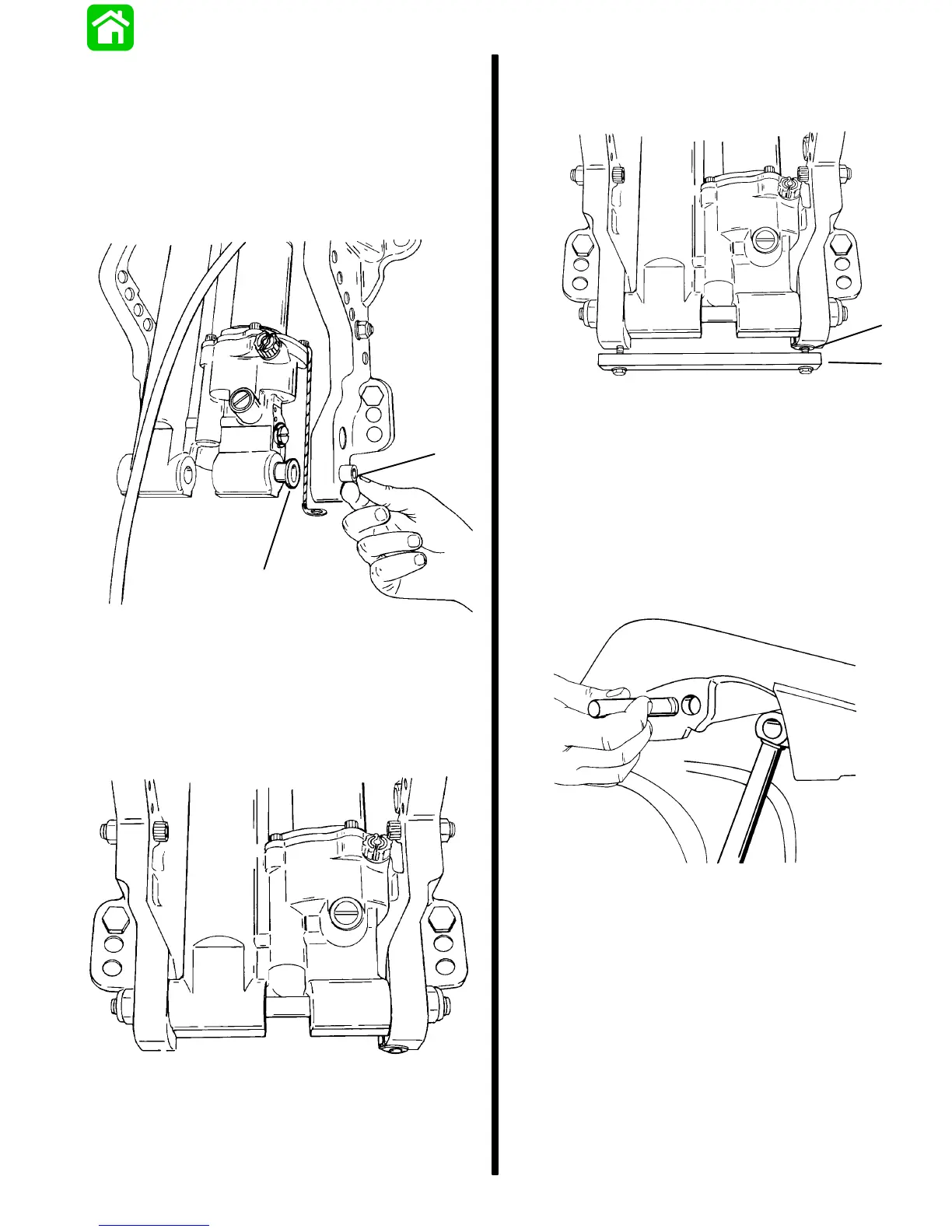

Power Trim System
Installation
1. Lubricate lower pivot pin, mounting holes and
bushings with 2-4-C Marine Lubricant.
2. Install lower pivot pin bushings into the clamp
brackets and trim unit.
a
b
a - Bushing (2) Install into each Clamp Bracket
b - Bushing (2) Install into each side of Trim Unit
3. Install lower pivot pin. Secure with flat washers
and nuts. Torque nuts to 18 lb. ft. (24.4 N·m).
4. Install sacrificial anode to clamp brackets. Fasten
ground strap between anode and clamp bracket.
Torque bolts to 60 lb. in. (6.8 Nâ‹…m).
a
b
a - Ground Wire
b - Sacrificial Anode
5. Lubricate the upper pivot pin and mounting holes
with 2-4-C Marine Lubricant.
6. Fasten shock rod with the upper pivot pin.
NOTE: Pivot pin should be installed with grooved end
inserted first.
