5B-46 - MID-SECTION 90-826148R2 MARCH 1997

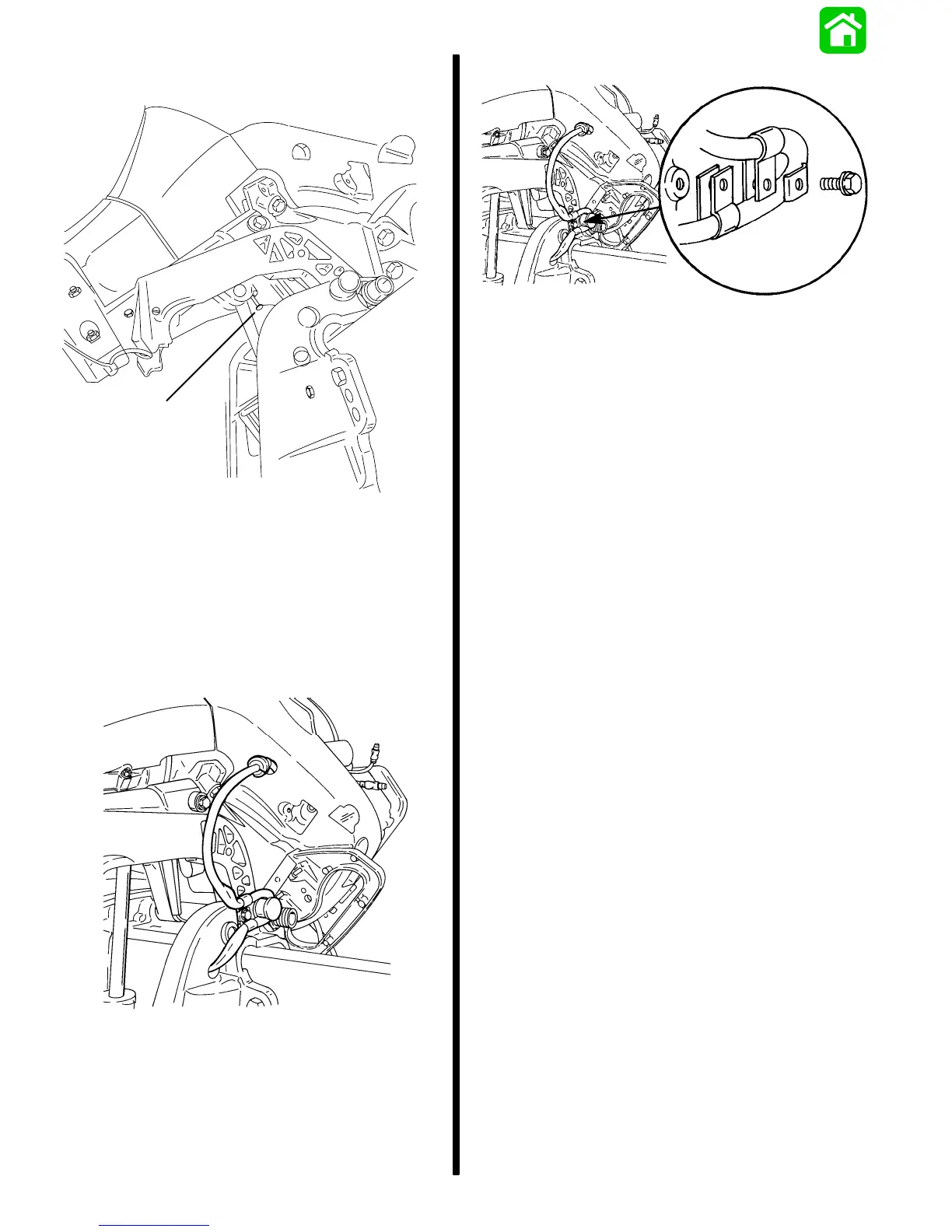

7. Secure upper pivot pin with trilobe pin. Press tri-
lobe pin in until its fully seated.
a
a - Trilobe Pin
8. Re-connect trim wire harness leads (see wiring
diagram Section 2D for proper connections).
9. Recheck fluid level (tilt/trim rod fully extended).
10. Route wire harness through clamp bracket and
cowling.
11. Secure wire harness with clamps as shown.

Mercury 30 Specifications

General

Horsepower	30 HP
Cylinders	3
Displacement	526 cc
Gear Shift	F-N-R
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20 in
Steering	Remote / Tiller
