Mercury 30 Service Manual

5C-6 - MID-SECTION 90-826148R2 MARCH 1997
3. Apply 2-4-C Marine Lubricant (92-90018A12) to
surface of upper pivot pin, pivot hole and shock
rod hole.

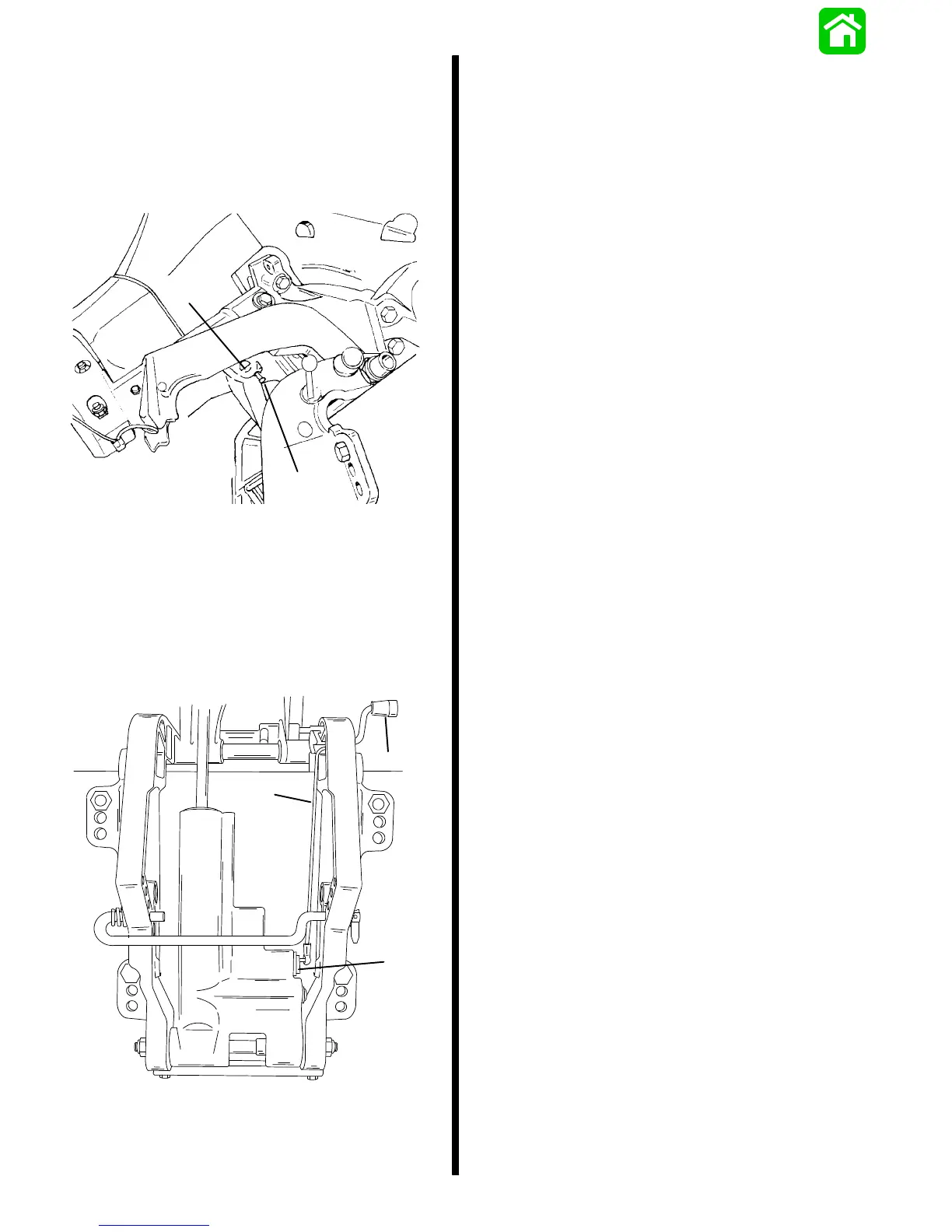

4. Position trim into position and drive pivot pin into
swivel bracket and through shock rod until pivot
pin is flush with swivel bracket. Drive trilobe pin
into its hole until seated.
a
b
a - Trilobe Pin
b - Upper Pivot Pin
5. Connect link rod onto cam lever.
6. Check manual release cam adjustment. Cam
must open and close freely. Adjust cam link rod
as necessary.
a
b
c
a - Link Rod
b - Cam Lever
c - Manual Release Lever

Mercury 30 Specifications

General

Horsepower	30 HP
Cylinders	3
Displacement	526 cc
Gear Shift	F-N-R
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20 in
Steering	Remote / Tiller
