Mercury 30 Service Manual

LOWER UNIT - 6-1390-826148R2 MARCH 1997

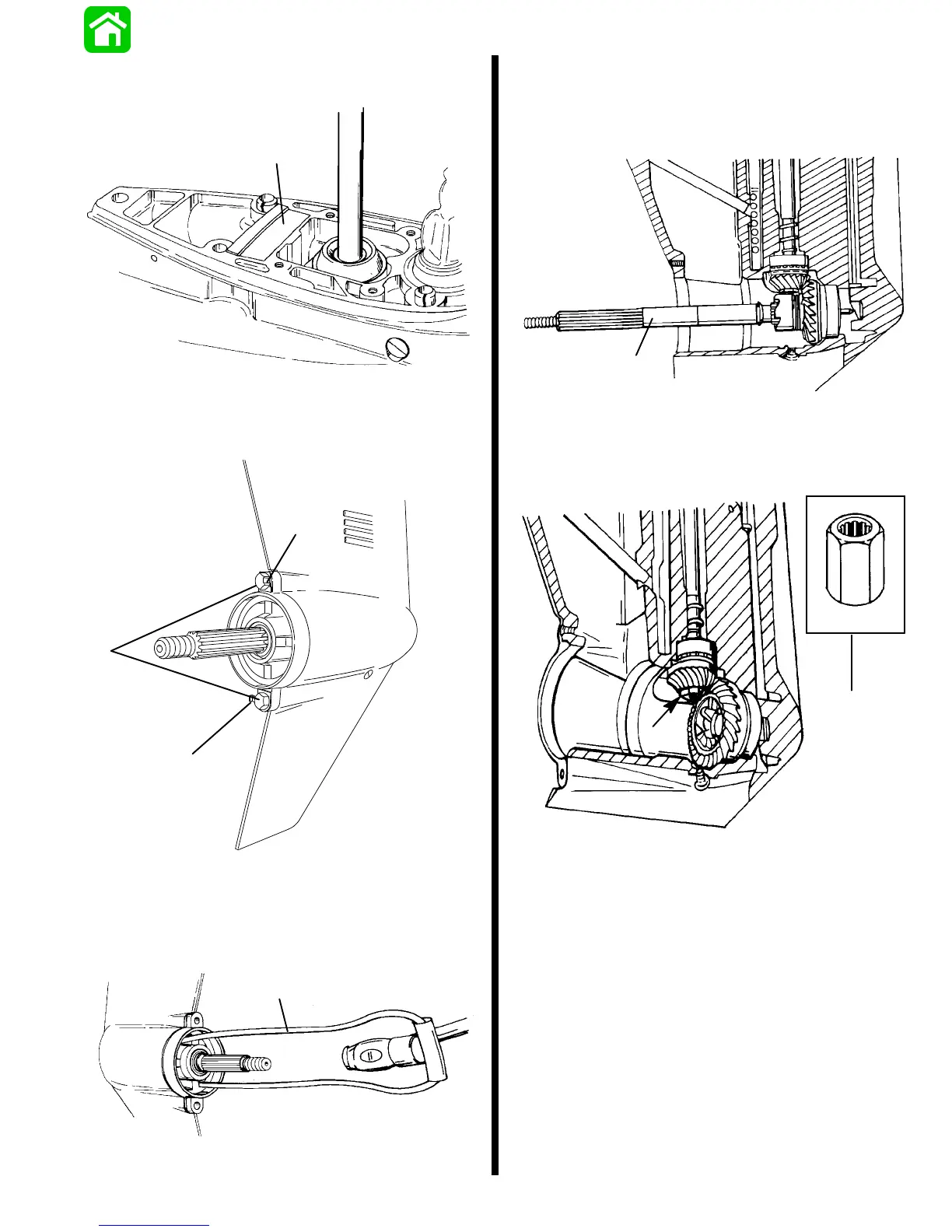

10. Remove and/orreplace exhaust deflectorplateif
damaged.
52832
a
a - Exhaust Deflector Plate
11. Removebearing carrierattaching bolts andlock-
ing tab washers. Discard tab washers.
a
b
b
a - Bolts and Tab Washers
b - Tab Washers
12. Using Puller (91-27780), remove carrier assem-
bly from gear case.
52829
a
a - Puller (91-27780)
NOTE: When removing propeller shaft assembly,
cam follower may dislodge. Retrieve follower from
gear housing
13. Remove propeller shaft assembly.
52864
a
a - Propeller Shaft
14. Remove pinion nut and discard.
15. Remove drive shaft assembly and pinion gear.
52864
51043
a
b
a - Drive Shaft Holding Tool (91-825196)
b - Pinion Gear

Mercury 30 Specifications

General

Horsepower	30 HP
Cylinders	3
Displacement	526 cc
Gear Shift	F-N-R
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20 in
Steering	Remote / Tiller
