90-826148R2 MARCH 19978-6 - MANUAL STARTER

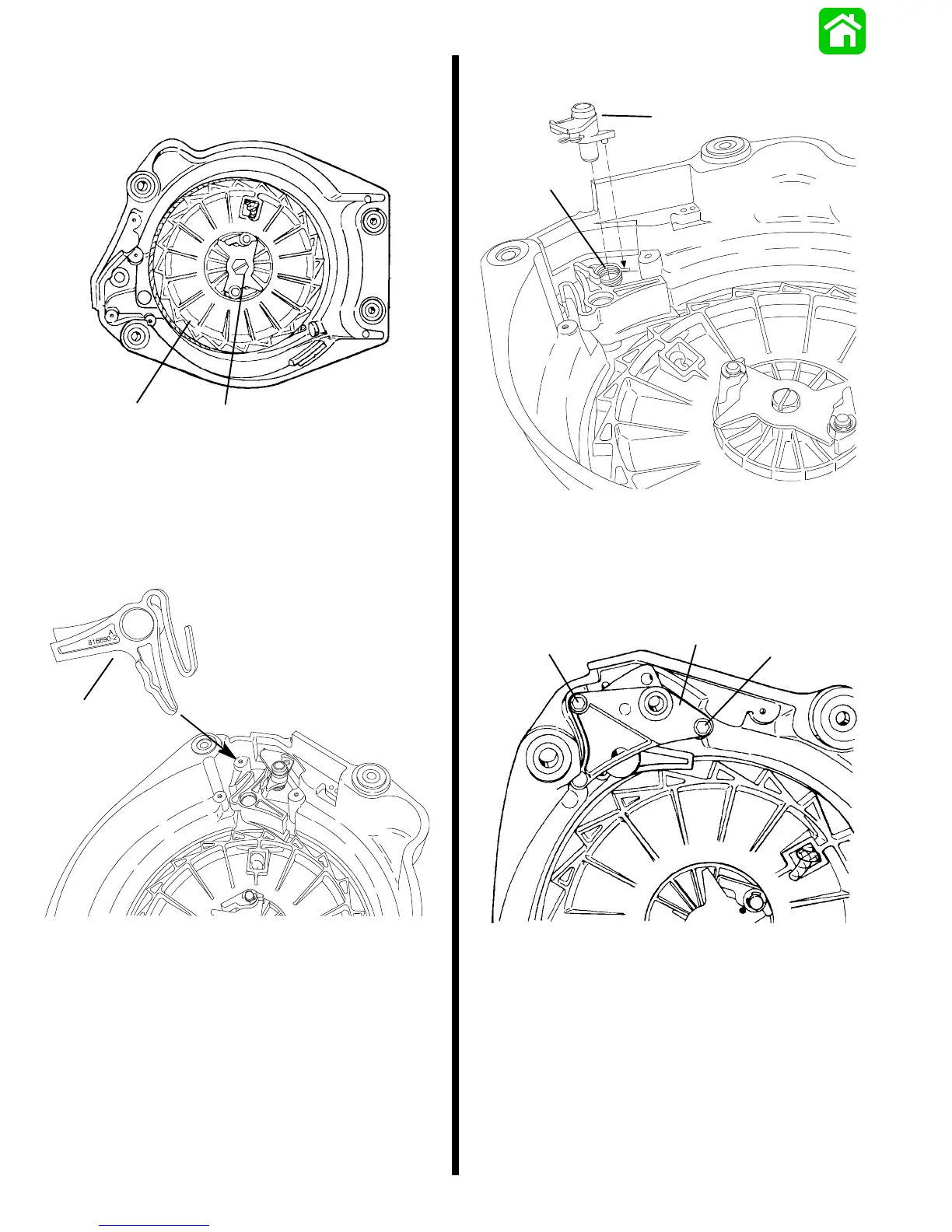

2. Install starter sheave to housing and secure in
placewithscrew.Torqueto135lb.in.(15.3N·m).
51605
b
a
a - Starter Sheave
b - Screw
3. Install interlock lever.
28374
a
a - Interlock Lever
4. Position cam lever spring into recess of starter
housing and re-install cam lever.
28375
a
b
a - Cam Lever
b - Cam Lever Spring
5. Install cam retainer and secure with screws.
51605
a
b
a
a - Screws
b - Cam Retainer
To Next Page
