4.0 Configuration

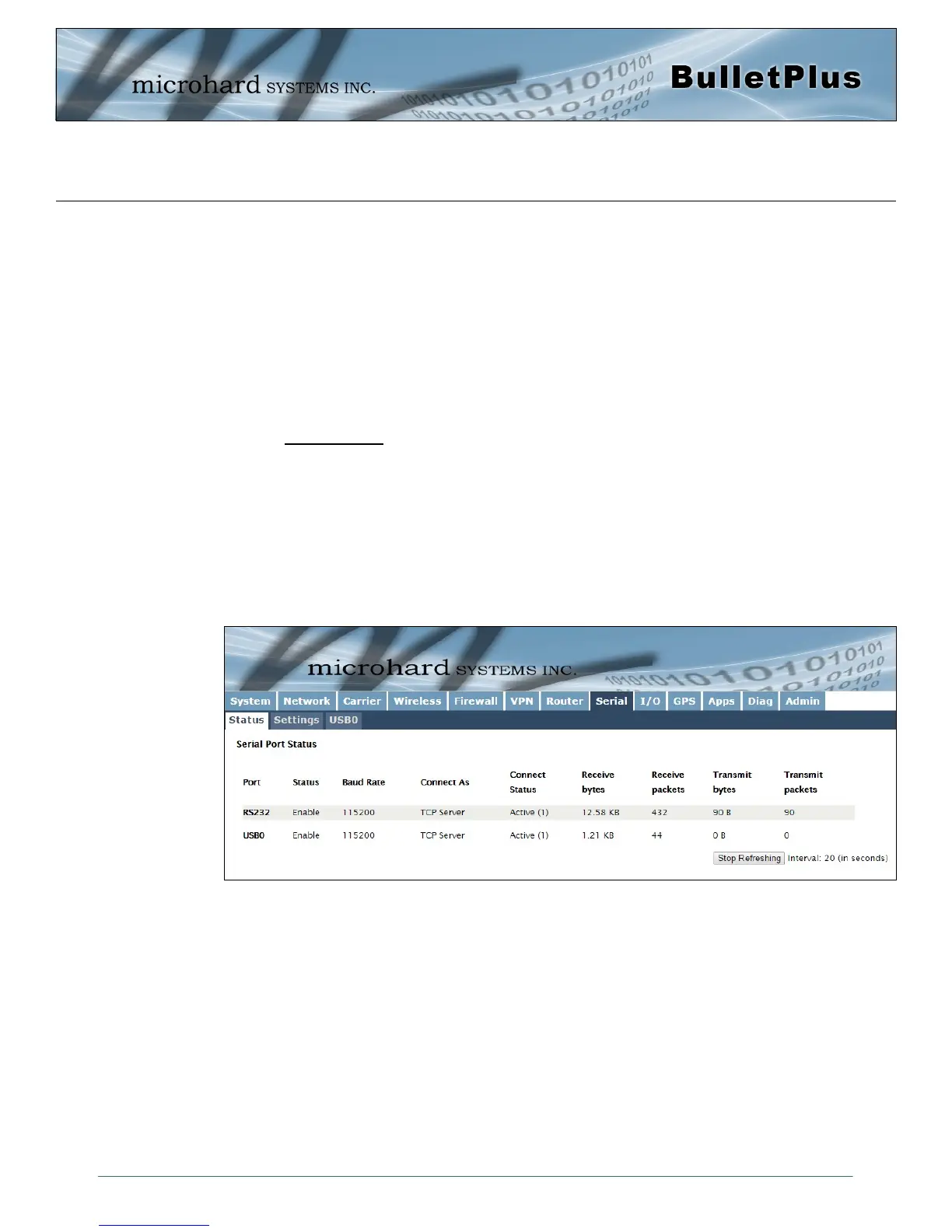

Image 4-8-1: Serial > Status
4.8 Serial
4.8.1 Serial > Status
The Serial > Status menu presents a summary of the RS232 Serial Data Port located on the side of the
BulletPlus, the port uses a standard DB-9 connector. If USB-to-Serial converters are connected they will
also appear as new tabs listed as USB devices. At this time the BulletPlus only supports select devices
using generic FTDI or Prolific USB-to-Serial drivers.
The Summary window shows a number of status items that aid in viewing the operation, statistics, and
troubleshooting of the RS232 or USB Serial Port.
General Status
 Port - Lists available RS232 or USB (Serial) ports available.
 Port Status - Shows if the port has been enabled in the configuration.
 Baud Rate - The current baud rate used to interface with the connected device.
 Connect As - The type of IP Protocol Config is displayed here (TCP, UDP, SMTP, PPP, etc)
 Connect Status - Shows if there are any current connections / if the port is active.
 Receive Bytes - Displays the total bytes received by the modem in the current session.
 Receive Packets - Displays the total packets received in the current session.
 Transmit Bytes - Displays the total bytes transmitted by the modem in the current session.
 Transmit Packets - Displays the total packets transmitted in the current session.
