4.0 Configuration

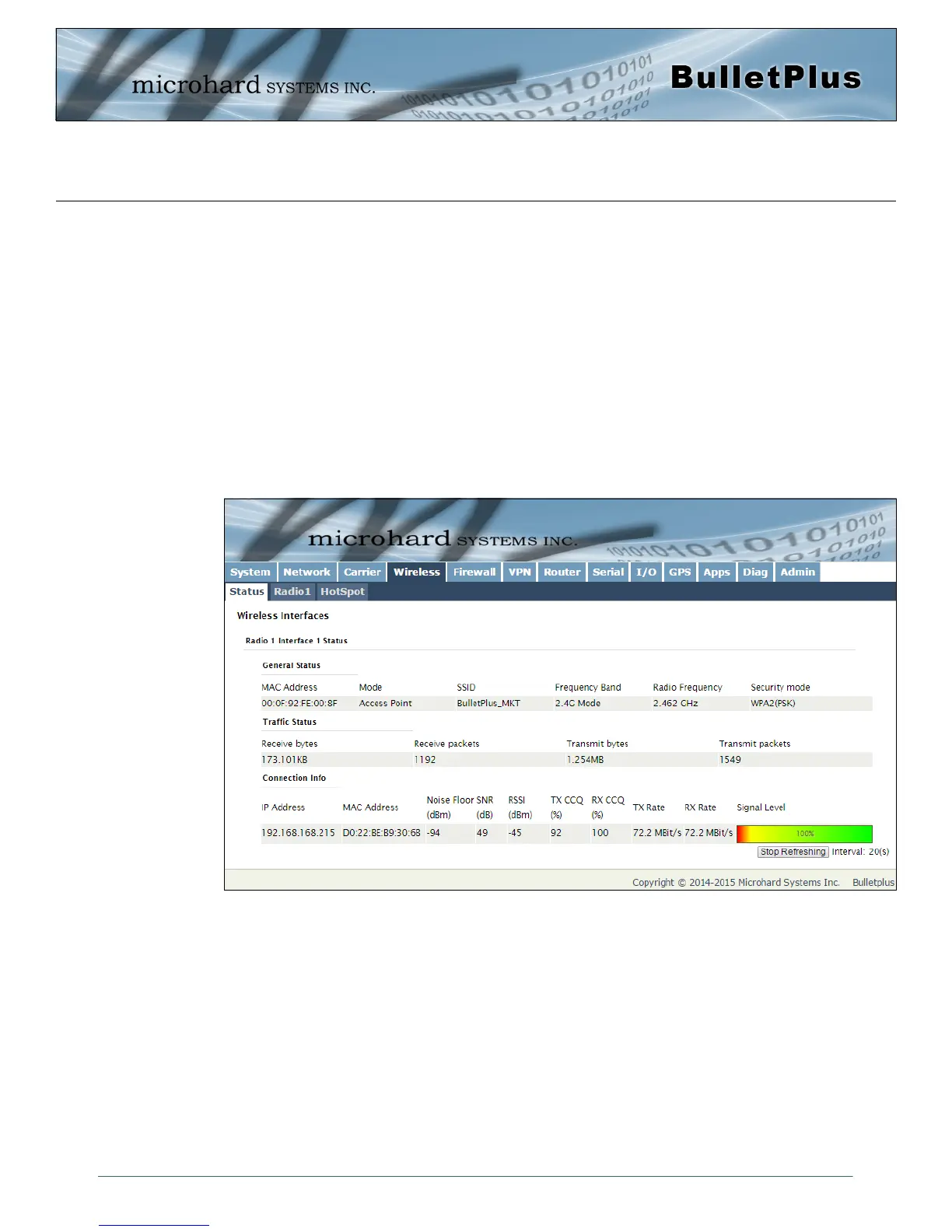

Image 4-4-1: Wireless > Status
4.4 Wireless (WiFi)
4.4.1 Wireless > Status
The Status window gives a summary of all radio or wireless related settings and connections.
The General Status section shows the Wireless MAC address of the current radio, the Operating Mode
(Access Point, Client), the SSID being used, frequency channel information and the type of security used.
Traffic Status shows statistics about the transmitted and received data.
The BulletPlus shows information about all Wireless connections in the Connection Info section. The
Wireless MAC address, Noise Floor, Signal to Noise ratio (SNR), Signal Strength (RSSI), The transmit and
receive Client Connection Quality (CCQ), TX and RX data rates, and a graphical representation of the
signal level or quality.
