3.0 Hardware Features
3.1.1 Mechanical Drawings

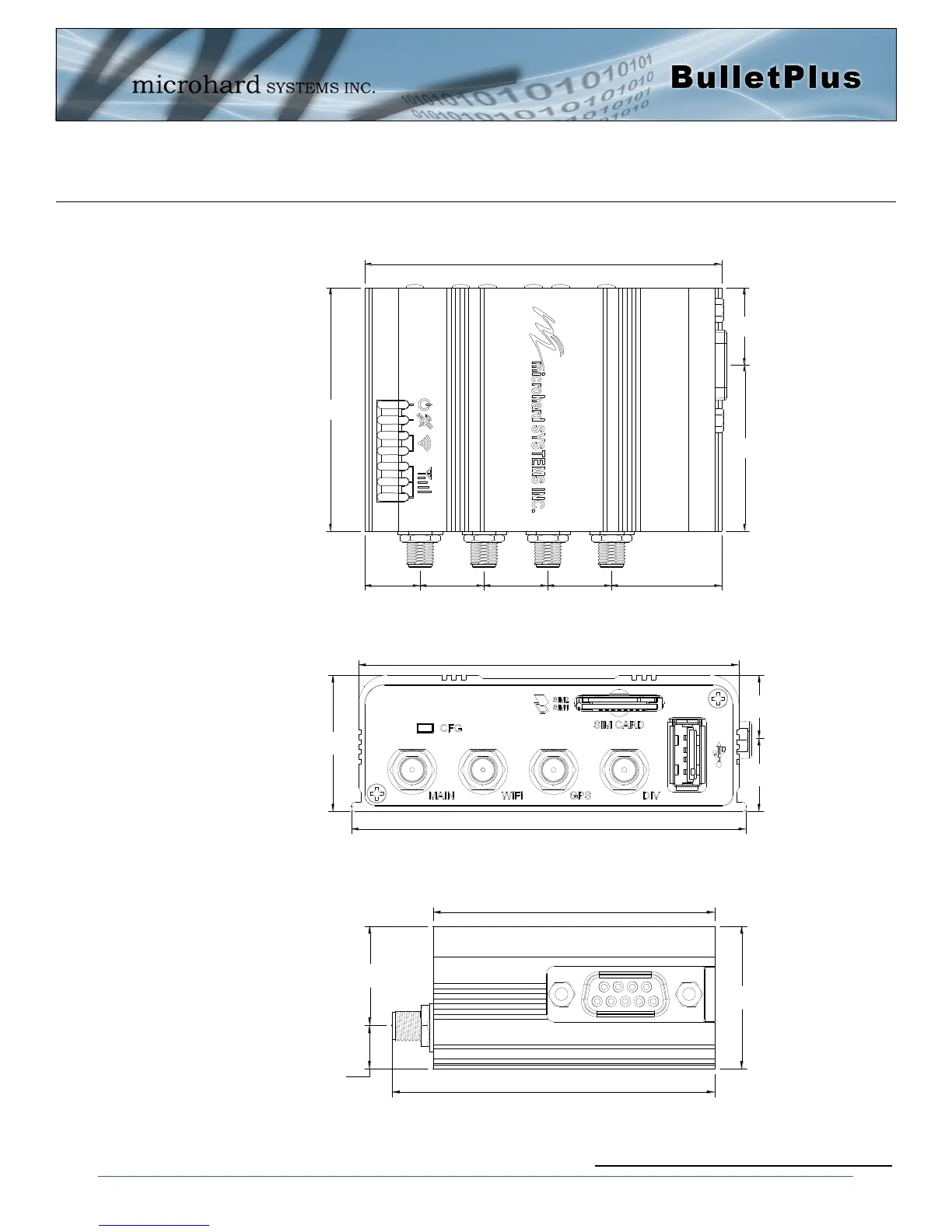

Drawing 3-1: BulletPlus Top View Dimensions
Drawing 3-2: BulletPlus Back View Dimensions
Drawing 3-3: BulletPlus Side View Dimensions
Note: All dimension units: Millimeter
