Installation
Rear Panel Connections
1. Insert one end of the power cord into the input power connector at the rear
of the degasser (refer to Figure 1-4) and the other end into an appropriate
power source.
2. Attach an appropriate regulator to the gas bottle. Leave the gas bottle shut-
off valve closed until instructed otherwise.
3. If the regulator has a 1/8-in. outlet, proceed to Step 4. If the regulator has a
1/4-in. outlet, attach the reducer fitting to the outlet of the regulator shut-off
valve.

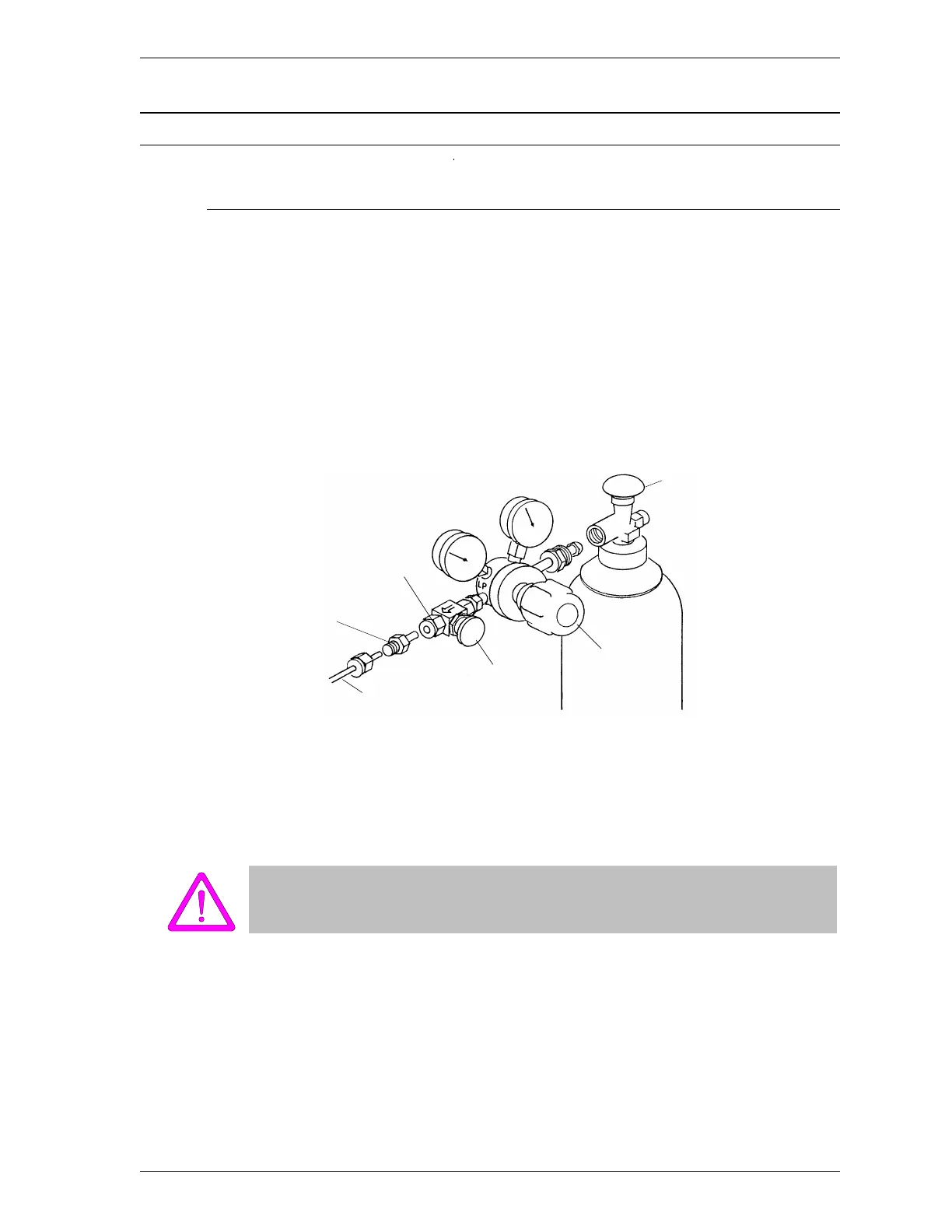

Figure 1-2. Connecting Gas Bottle to the Regulator
4. Tighten the regulator shut-off valve nut.
Do not over-tighten the fittings. Doing so can collapse the copper tubing and
cause a leak.
5. Attach the copper tubing to the brass reducer fitting.
Pressure
Control
Knob
Bottle Shut-Off Valve
Two-Stage Pressure
Reducing Regulator
Brass Reducer
Fitting
Shut-Off
Valve Nut
Regulator Shut-Off
Valve
Copper Tubing
SmartPrep Installation
Sep 98 1-5
