86 Chapter 9: Basic Operation
PRO6 Live Audio System
Owner’s Manual
Setting up a mix
The PRO6 has 32 configurable mix buses (16 aux and 16 matrix), each of which can be
used as aux mixes, subgroups or mix minus. All the mixes can also be set up as stereo
pairs or mono. 16 matrix outputs can also be accessed directly from input channels via
level controls, which gives the PRO6 the ability to provide 32 discrete mixes, plus left,
right and mono. The mix sections (input fast strips) and the mix and sends sections
(mix and master bays) provide mix control and navigation, while the bus mode
selection is via GUI only.
Similarly to the inputs and groups, identification of mixes is by colour coding.
The overview displays in the GUI channel strip (see Figure 13) show the status of the
mixes, which are colour coordinated to match those in the sends section of the control
surface.

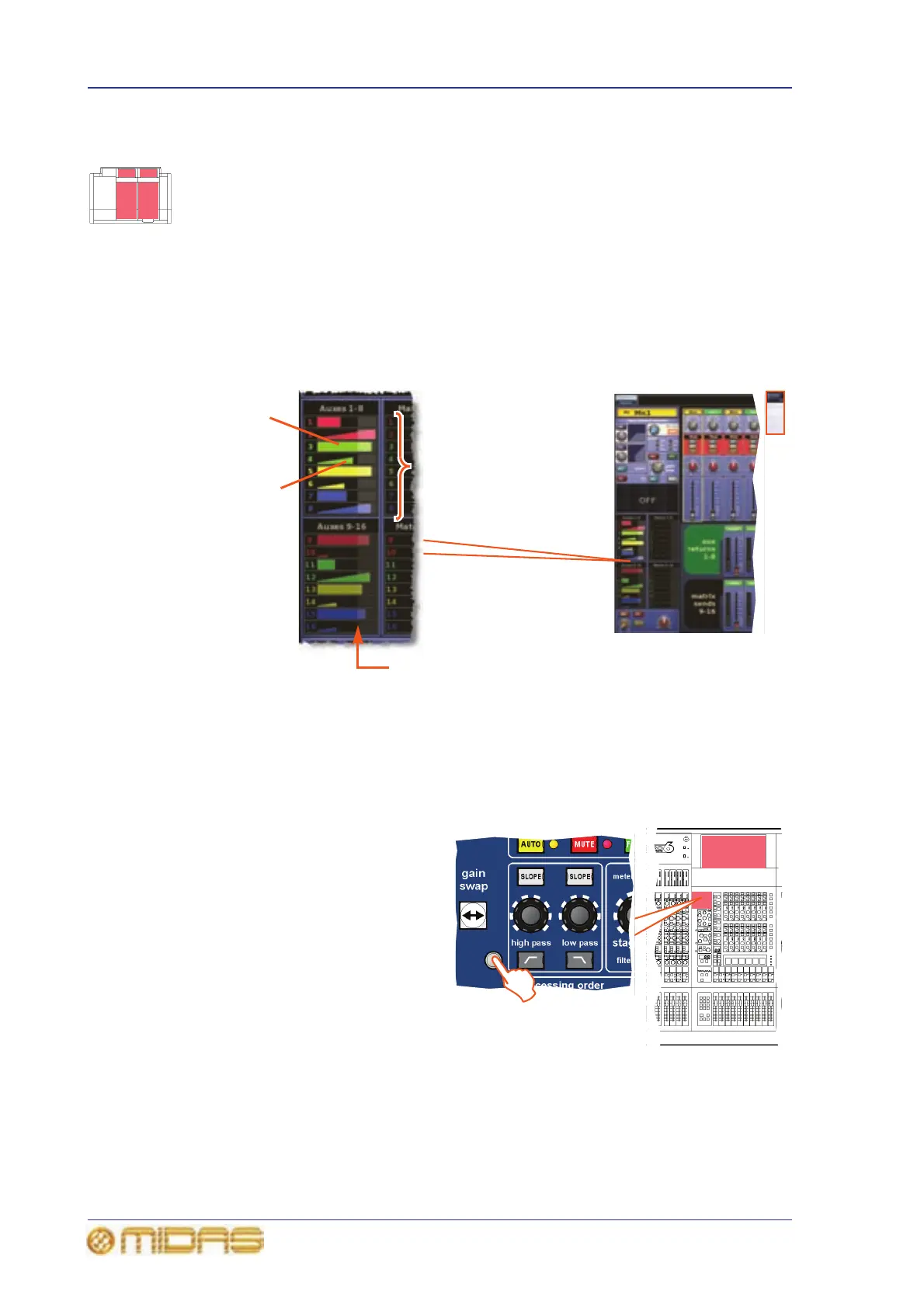

Figure 13: Sends sections of the mixes on the GUI (channel strip)
>> To select the mix bus mode
1 Select the mix bus (see “To select a mix bus” on page 53).
2 Press the quick access button
(adjacent to the filters section)
to assign the mix overview to
the channel strip. For example,
the aux send overview for
AuxS1.
Ramp shows that
this signal is
post-fader
This transition point across the eight mix
buses, where solid colours change to
translucent, indicates 0dB
Bar shows that
this signal is
pre-fader
Illuminated aux
numbers and ramp/bar
shows that these auxes
are on
