500 Appendix O: Parameters Affected By Stereo Linking
XL8 Live Performance System
Owner’s Manual
Inputs
This section shows the linked parameters of the input channels.
Input controls

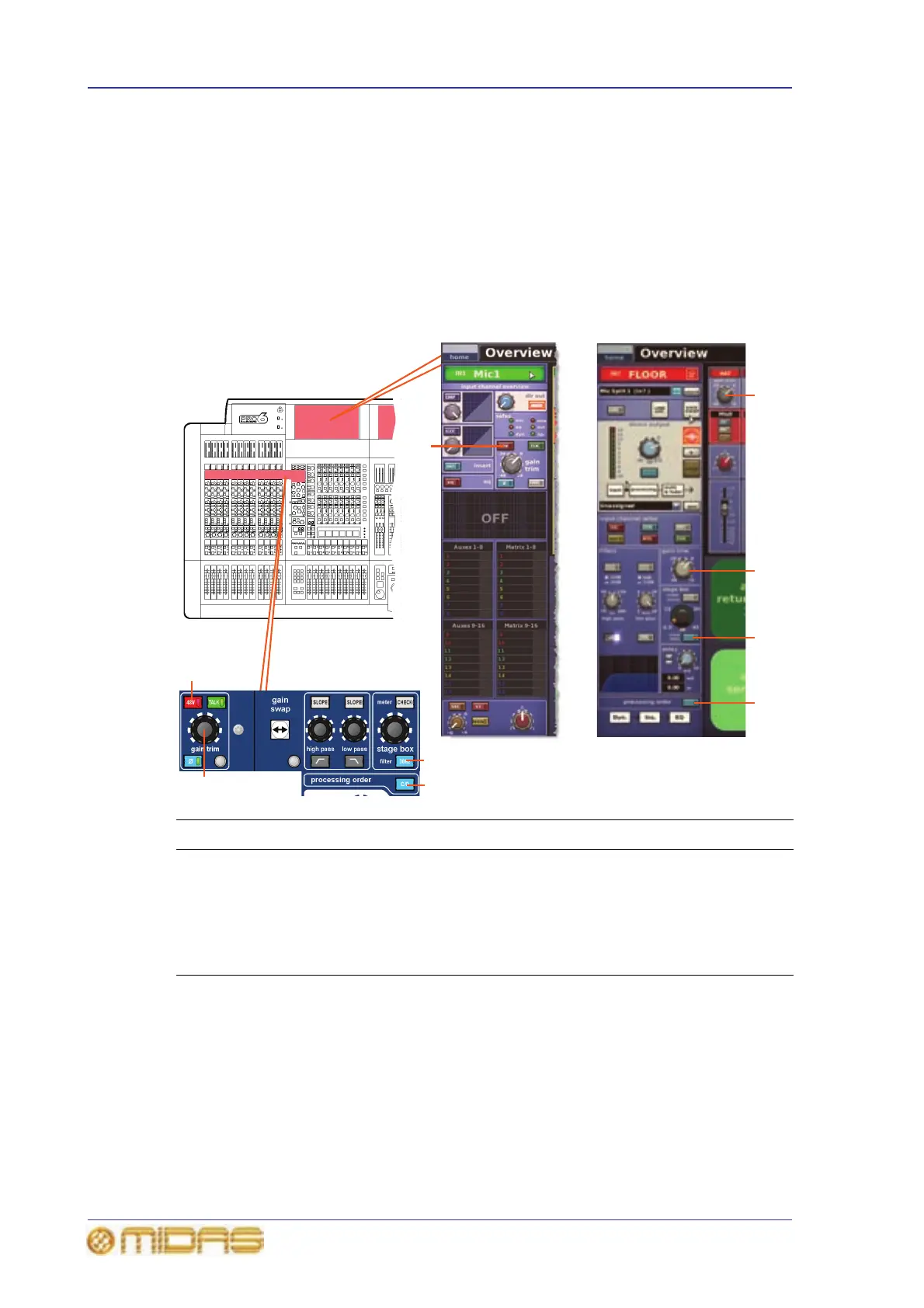

The following diagram shows the input control parameters that are linked across a
channel pair.
* Applicable to tape and primary inputs.
Item Control Parameter
1 gain trim control knob Digital trim level
2 48V switch* 48V phantom voltage on/off
3 30Hz switch 30Hz filter in/out
4 C/O switch*
Order of processing: Dyn.
JIns.JEQ or
EQ
JIns.JDyn.
3
1
3
4
2
Input channel
overview in GUI
channel strip
Configuration
processing area in GUI
channel strip
4
1
2
1
