Direct output

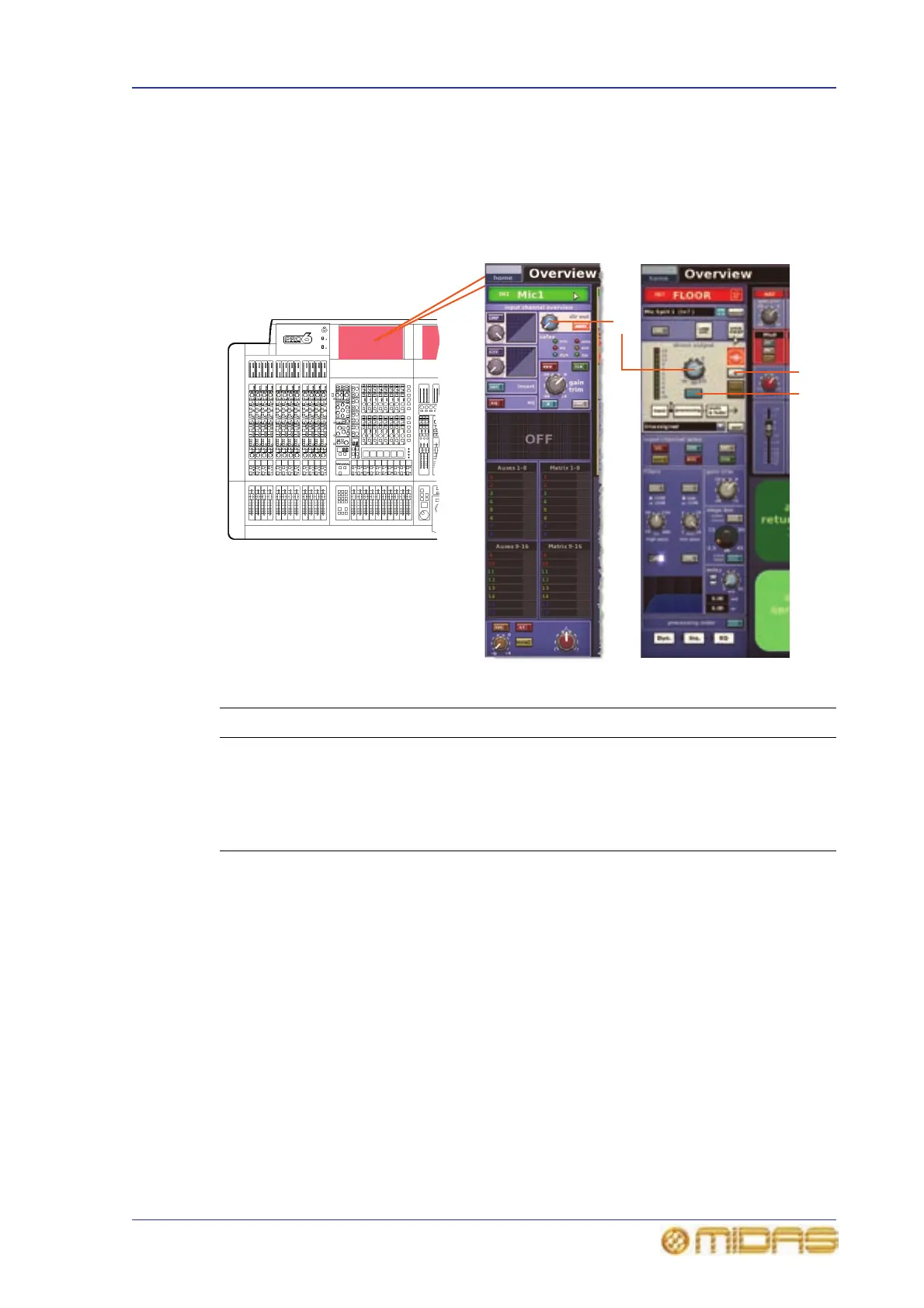

The following diagram shows the direct output control parameters that are linked across
a channel pair.
Direct input
Not applicable.
Item Control Parameter
1 Control knob Direct output level
2 B switch Direct output solo B in/out
3 Pushbutton Direct output tap-off point: “Post-fade and mute”,
“Pre-mute, pre-processing” or “Pre-mute, post-
processing”
2
1
Input channel
overview in GUI
channel strip
Configuration
processing area in GUI
channel strip
3
