294 Chapter 31: Outputs
PRO6 Live Audio System
Owner’s Manual
Talk
There is a talk switch in each
output fast strip and also on the
output ‘overview’ displays in the
GUI channel strip, which are
labelled “TALK” and “TLK”,
respectively.
If the TALK/[TLK] (internal)
switch in the talk mic section is
active, the talk buttons will
illuminate to prompt the
operator to select a bus that the
talk signals should be routed to.
These are also used to set up a
talk group after pressing one of
the talk/osc routing panel
buttons.
Dynamics and EQ
The control surface has a combined dynamics and EQ section that contains DYN and
EQ on/off buttons, and a listen LED (yellow) that illuminates when listen is active in
the output processing area to show when a channel has its dynamic side chain soloed.

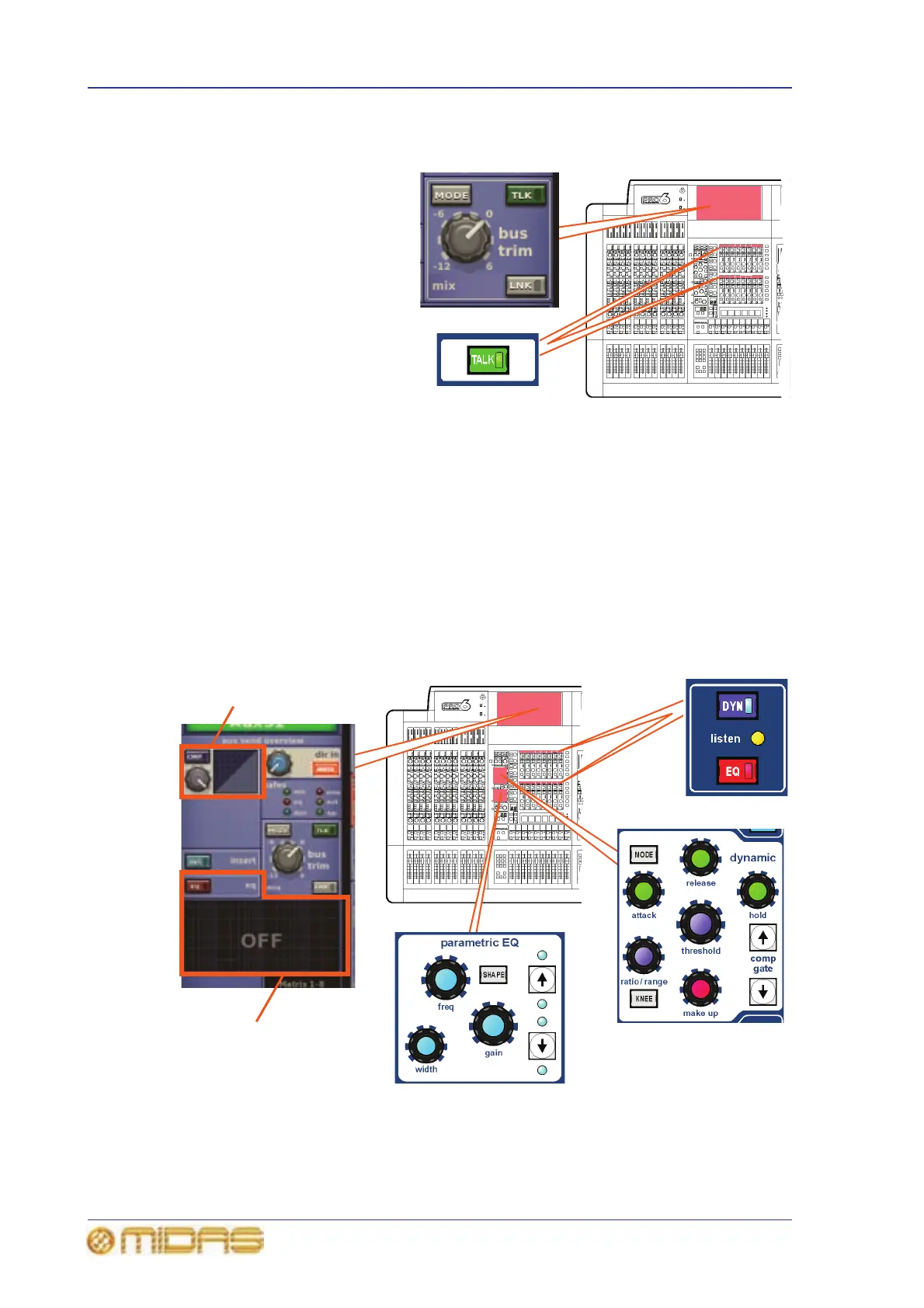

In the GUI channel strip overview display the aux, matrix and master outputs each
have a compressor section and an EQ section (both are highlighted in the diagram
below). Return outputs only have an EQ section. Clicking within either of these
sections will open their respective processing areas, which are described in the
following subsections.
Compressor section
EQ section
D zone
E zone
