174 Chapter 19: Assignable Controls (I Zone)
PRO6 Live Audio System
Owner’s Manual
Controlling a GEQ via the I zone
You can use the I zone to adjust the faders and controls, such as the high/low pass
filters, notch filters, slope etc., of an internal GEQ. For information on opening the
Graphic EQs screen and selecting a GEQ, see Chapter 15, “Graphic Equaliser (GEQ)”.
Similarly to the internal effects, there is an assignable controls panel on the GUI (see
“About the Assignable Controls window” on page 168). However, to accommodate the
faders there are, effectively, two levels of display, known as “overview” and “zoom”.
The overview display appears initially when you open the window of the GEQ, and lets
you adjust a group of GEQ faders simultaneously. Each LCD button in the I zone is
assigned to a group of faders. For identification, the groups are numbered, as shown in
the following diagram.

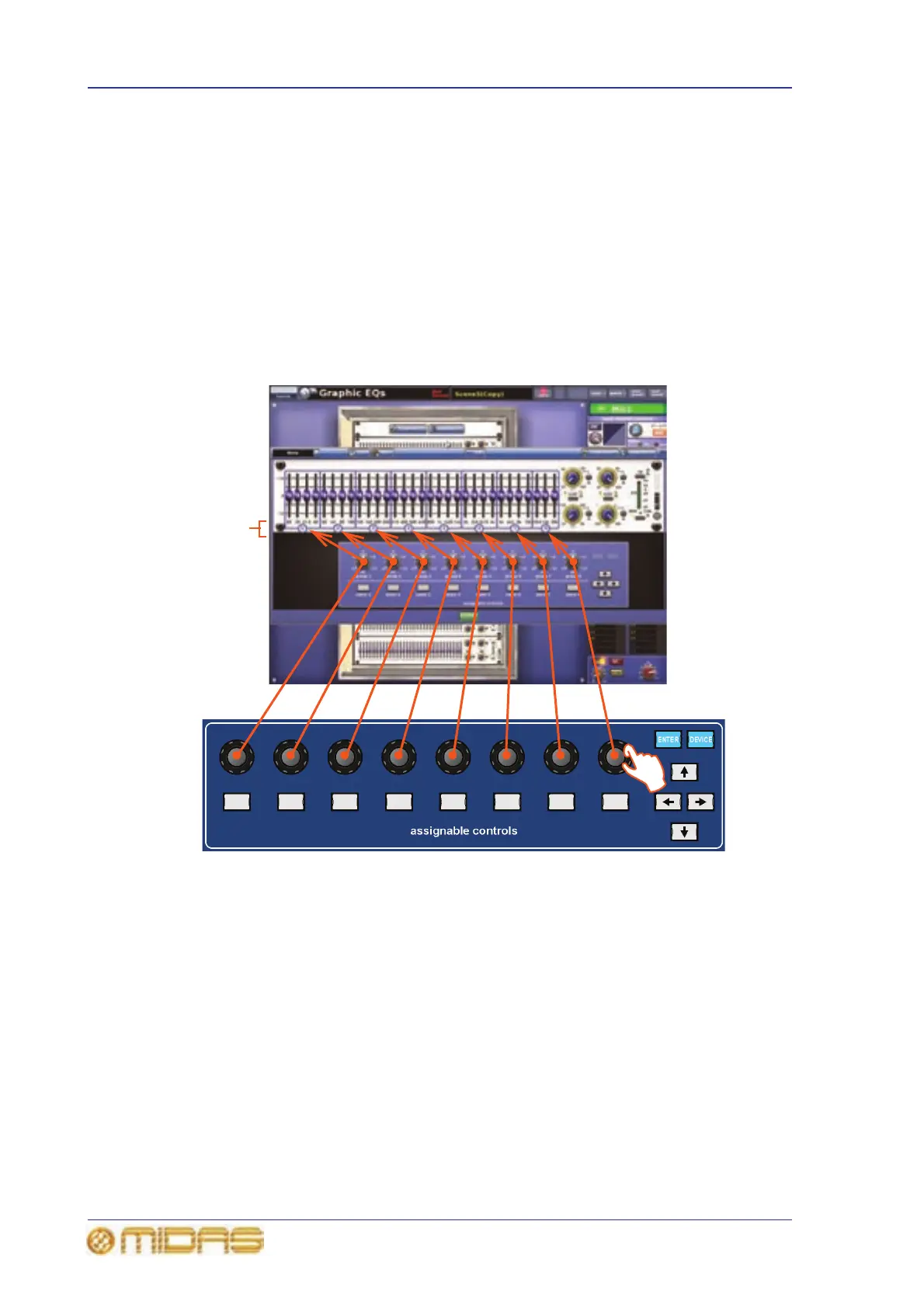

Figure 21: Fader group control knob assignments in the overview display
Fader group
ID numbers
(encircled)
Overview
display
I zone
