256 Chapter 30: Inputs
PRO6 Live Audio System
Owner’s Manual
Input channel areas of the control surface
The control surface has a total of 16 input fast strips, so that 16 input channels can be
at the control surface at any one time. The input fast strips are divided between the
12-channel input bay (left) and the 4-channel input bay (right). The main areas of the
control surface concerned with the input channels, such as the channel strips and

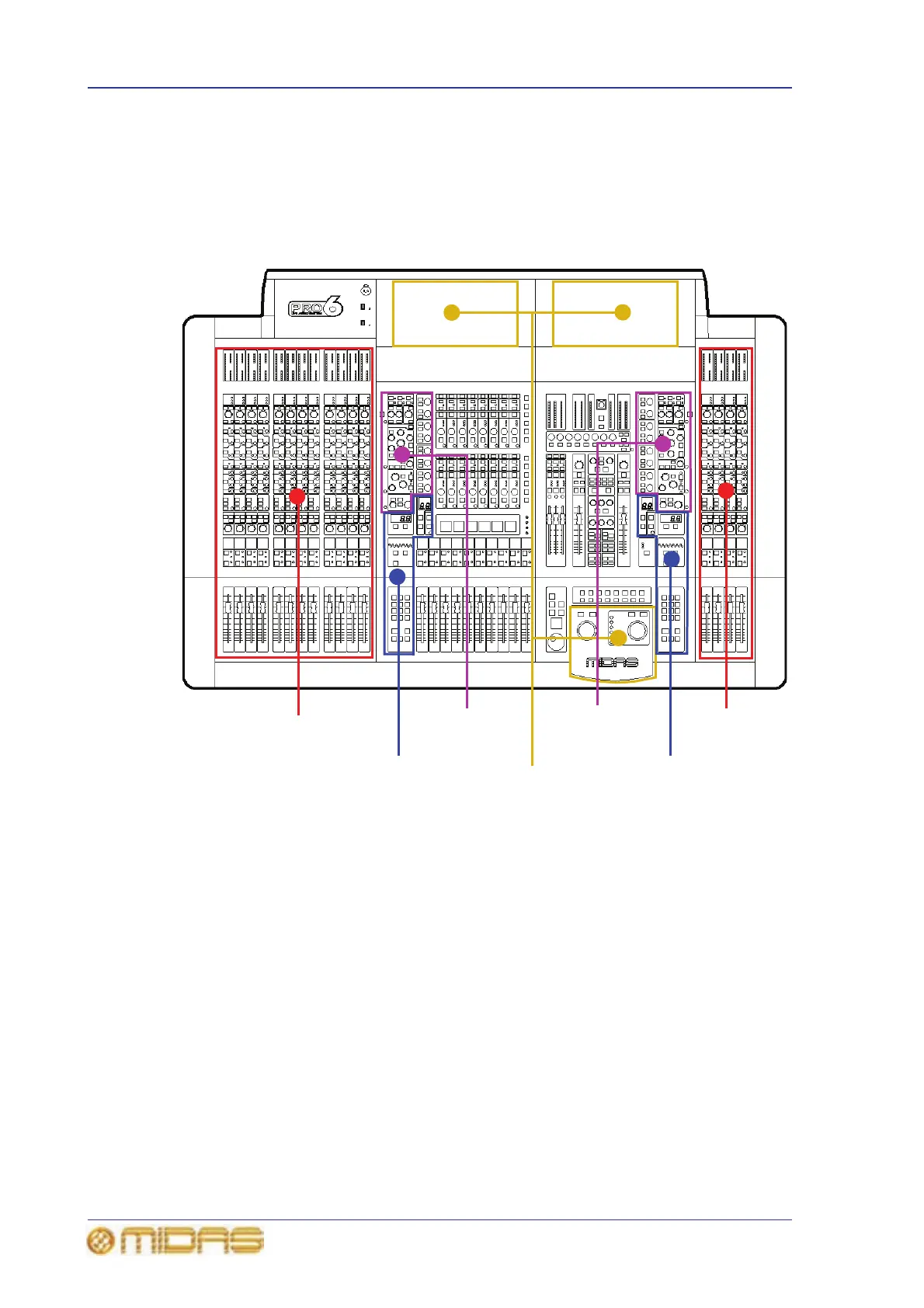

navigational sections, are shown in the following diagram.
Input fast zone
(4-channel bay)
Navigation area
(master bay)
Navigation area
(mix bay)
Input fast zone
(12-channel bay)
Channel strip and
mixes (master
bay)
Channel strip and
mixes (mix bay)
GUI control areas
