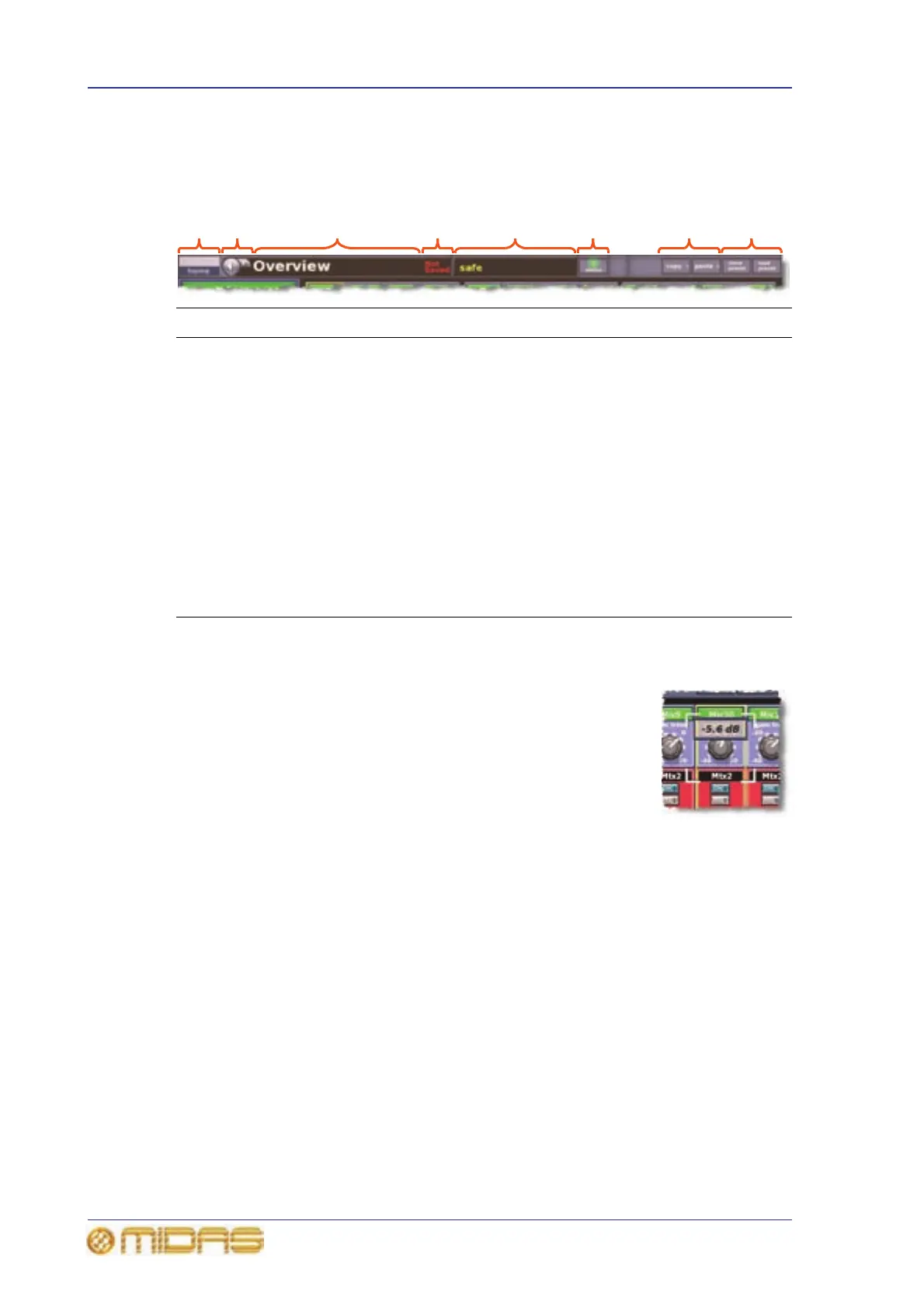

Common GUI screen elements
In general, you will see a banner at the top of both GUI screens that contains a number
of elements as follows:
Parameter values displayed on touch
You can configure the PRO6 (see “Changing the user interface
preferences” on page 228) so that the GUI displays the current
value (and dimension) of the control being adjusted.
Operating the GUI screen controls
This section shows you how to operate GUI screen elements, such as buttons, control
knobs, drop-down lists and sliders.
>> To switch a GUI button on/off
Click the button. If it has a status indicator, this will illuminate/extinguish to show that
it is on/off, respectively.
>> To adjust a GUI control knob or fader
Use a drag operation. Move the pointer up/down/left/right for adjustment.
Item Description
1 home button, opens the GUI main menu (see “GUI menu options” on
page 307).
2 Screen navigation buttons (see “To find a GUI screen that you recently
opened” on page 50).
3 Name of current screen.
4 “Not Saved” message appears when the currently selected scene/preset
library file has changes that have not been saved.
5 Title of currently selected scene.
6 status LED, indicates the health and status of the system (see “About the
Diagnostics screen” on page 354).
7 Copy and paste buttons (see “Using copy and paste” on page 98).
8 User library buttons (see “User library (presets)” on page 99).
