286 Chapter 31: Outputs
PRO6 Live Audio System
Owner’s Manual

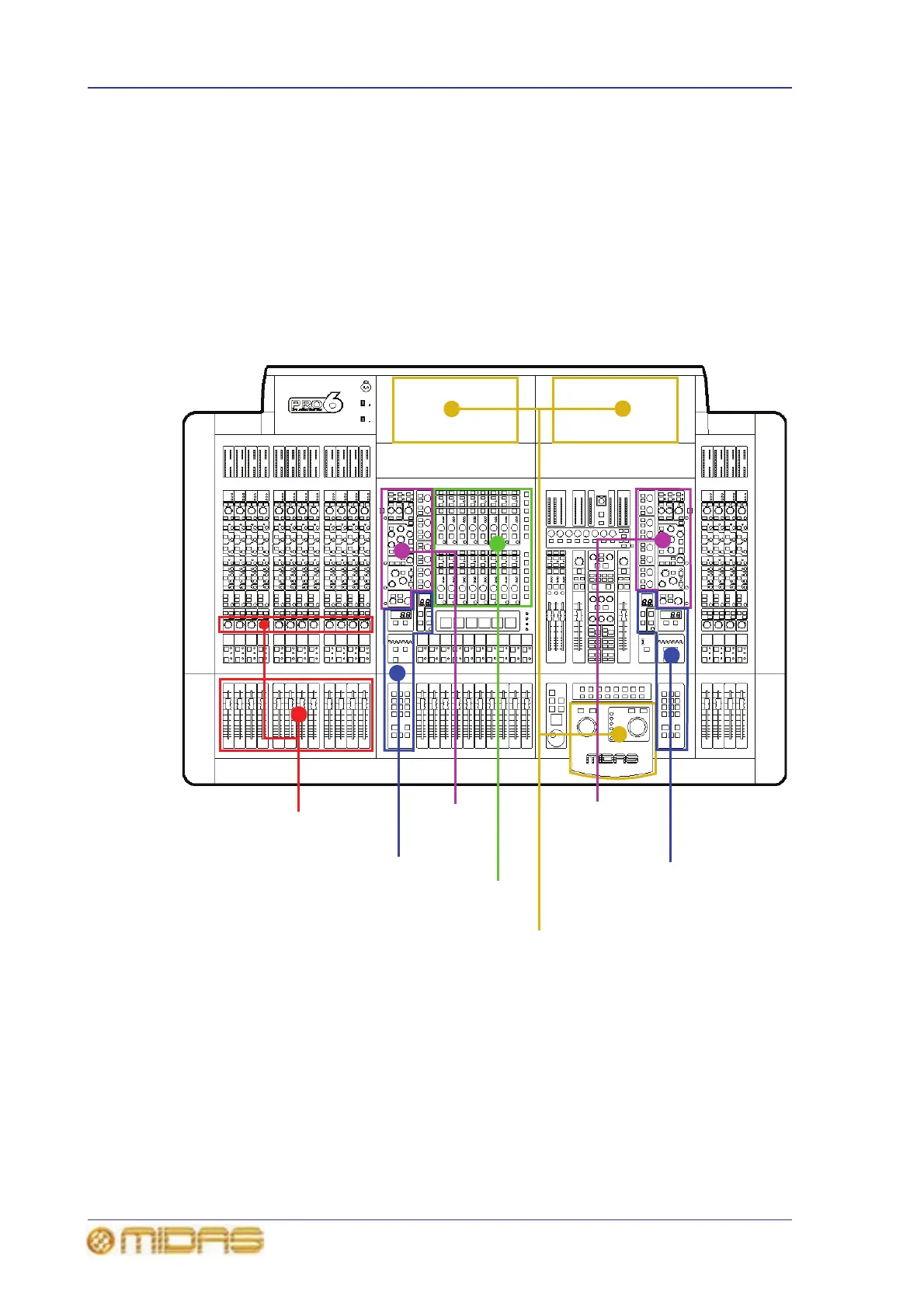

Output channel areas on the control surface
The mix and master bays house the areas on the control surface pertaining to the
outputs (see diagram below).
The mix bay houses the output fast zone, which contains two banks of output fast
strips. This bay also contains a channel strip, mix (sends) section and navigation area,
which are replicated on the master bay.
The GUI has a similar configuration to the control surface, whereby the GUI screen in
the mix bay has an output fast zone, and both GUI screens have a channel strip.
In general, operation of the outputs is via the mix bay, although this is configuration
dependent.
Input fast zone
(4-channel bay)
Navigation area
(master bay)
Navigation area
(mix bay)
Pan and fader ‘flip’
Channel strip
and mixes
(master bay)
Channel strip
and mixes
(mix bay)
GUI control areas
Output fast
zone
