Delay effect
The delay effect provides simple delay line based effects. Delay times can be specified
manually or by means of a ‘tempo-tap’ button. Three-mode delay algorithm: single -
one delay tap (mono or stereo processing); dual - two delay lines (stereo insert only);

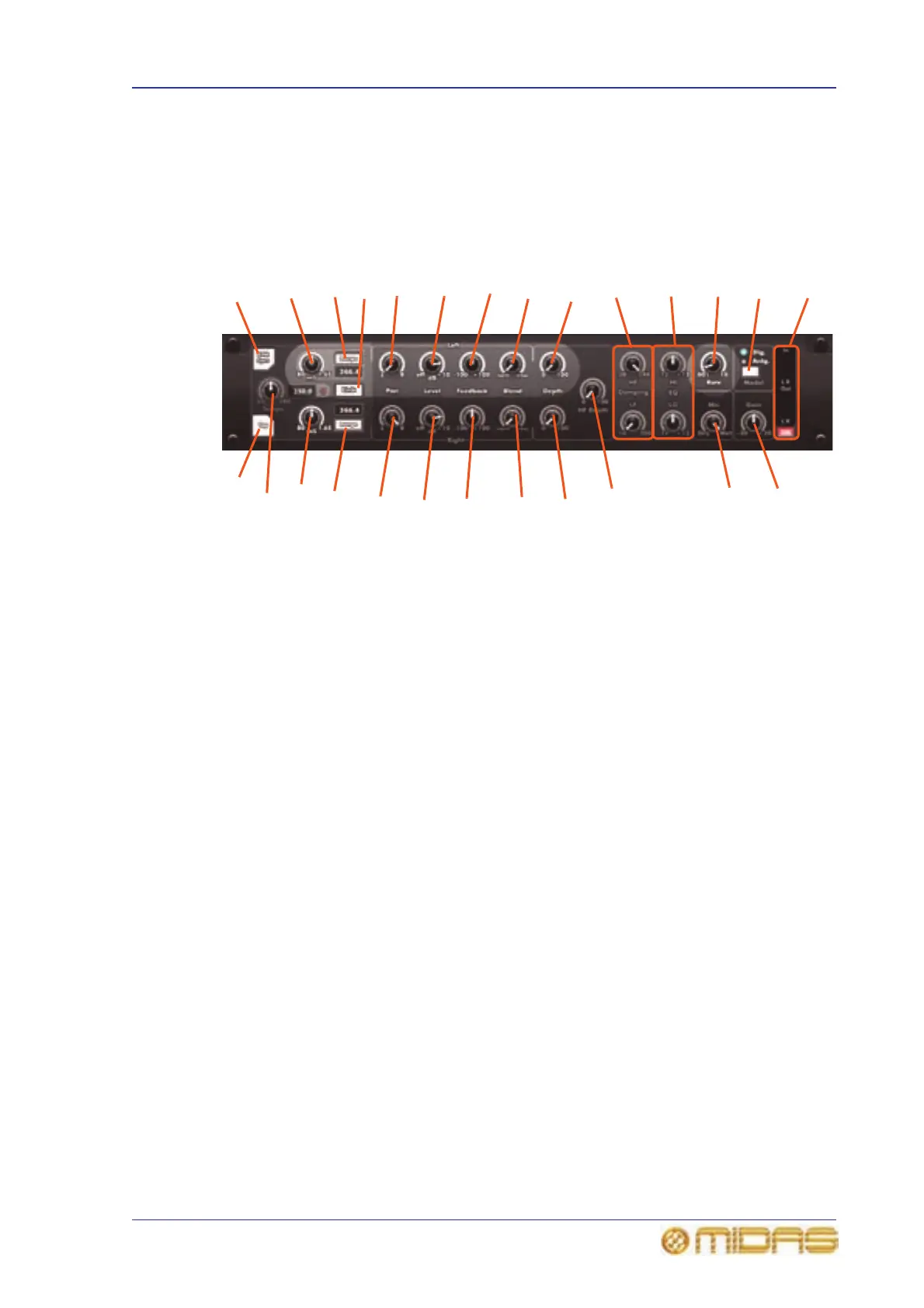

and ping-pong - two delay lines with cross feedback. In the diagram below, items 2 to
6 are for the left (top row) and right (bottom row) inputs.
1 BPM Sync button, for activating BPM (TAP
TEMPO) mode.
2 Left channel delay time control knob, for
entering the desired delay time. Value is shown
immediately below, in ms or BPM.
3 Range button, for selecting one of three
delay time ranges (1-25ms, 10-200ms or
80-1600ms). Value is displayed immediately
below.
4 Link button, for linking delay time of left
and right channels.
5 Pan control knob (left and right), for
panning channel between L (left) and R (right)
outputs.
6 Level control knob (left and right), for
adjusting the output level. Range is from off to
+10dB.
7 Feedback control knob (left and right),
adjusts the amount of negative/positive
feedback applied to delay. Controls the
number of repeats. Range is from -100% to
+100%.
8 Blend control knob (left and right),
adjusts the feedback blend from norm to cross.
9 Depth control knob (left and right),
adjusts depth of delay modulation. Range is
from 0 to 100.
10 Damping section, contains a HF control
knob that adjusts the HF attenuation of delay
repeats and an LF control knob that adjusts the
LF attenuation of delay repeats.
11 EQ section. HI control knob that adjusts
the amount of HF (high EQ) cut or boost
applied to the output. LO control knob adjusts
the amount of LF (low EQ) cut or boost applied
to the output. Range of both is -12 to +12,
with 0 at top dead centre.
12 Rate control knob, adjusts rate of delay
modulation. Range is between 0.001Hz and
10Hz, with 0.7Hz at top dead centre.
13 Model select button, selects digital or
analogue delay resolution. Current selection is
shown by the illumination of one of the LEDs
above (Dig. or Anlg.).
14 LR Out section. Contains an ON for
activating delay.
15 Gain control knob, adjusts the amount of
gain between -20 and +20, with 0 at top dead
centre.
16 Mix control knob, for adjusting the mix
between dry (0%) wet (100%).
17 HF Depth control knob adjusts depth of
delay modulation. Range is 0 to 100, with 50
at top dead centre.
18 Right channel Delay time control knob, for
entering the desired delay time.
19 Tempo control knob, adjusts the tempo in
tempo mode. Range is from 60 to 240 beats
per minute.
20 Tap button, for manually tapping the
tempo once the unit is in BPM Synch (TAP
TEMPO) mode.
20
18
3
5
1
8
7
2
3
5
6
9
17
9
8
6
19
13
10
11
15
4
7
12
14
16
