SQ1 Dynamics effect
For information on the Klark Teknik Square One Dynamics, refer to its Operator Manual
(part number DOC02-SQ1DYNAMIC).
3-Band Compressor effect
The 3-Band Compressor effect is for applying different compression profiles to different
areas of the audio spectrum.

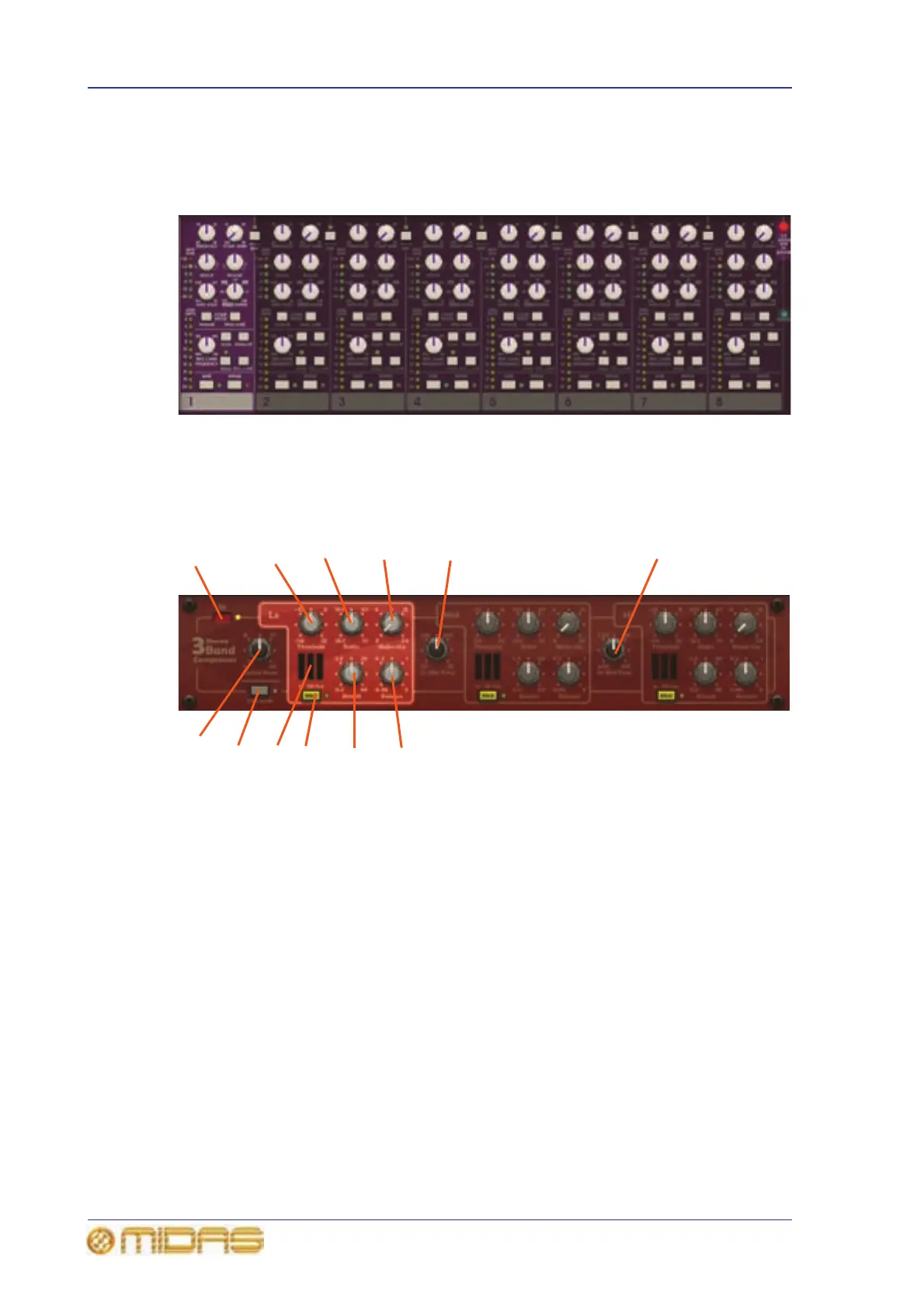

1 In button, switches the stereo 3-band
compressor in/out. It has an adjacent LED
(yellow) for in/out indication.
2 Threshold control knob (Lo, Mid and Hi
sections), for setting the threshold at which
compression begins. Range is -50dB to
+25dB.
3 Ratio control knob (Lo, Mid and Hi
sections), for setting the compression ratio.
Range is 25:1 to 1:1.
4 Make-Up control knob (Lo, Mid and Hi
sections), for boosting the output level of the
compressed signal. Range is 0dB to +24dB.
5 Release control knob (Lo, Mid and Hi
sections), for setting the release time of the
compressor. Range is 0.05sec to 3sec.
6 Attack control knob (Lo, Mid and Hi
sections), for setting the speed of the onset of
compression once the threshold has been
exceeded. Range is 0.2ms to 50ms.
7 SOLO button (Lo, Mid and Hi sections),
for listening to the compressor’s sidechain
filter. It has an adjacent LED (yellow) for
on/off indication.
8 Three-section meter, has individual meter
elements for input (In), gain reduction (GR)
and output (Out).
9 Soft Link button, for linking the left and
right channels. It has an adjacent LED
(yellow) for on/off indication.
10 Global Knee control knob, for setting the
rate of transition across the threshold.
11 Lo Mid Freq control knob, for setting the
crossover point between the Lo and Mid
compressors. Range is 40Hz to 1kHz.
12 Hi Mid Freq control knob, for setting the
crossover point between the Mid and Hi
compressors. Range is 640Hz to 16kHz.
10
1
8 69
3
5
2
7
4
11 12
