8 Chapter 2: PRO6 Live Audio System
PRO6 Live Audio System
Owner’s Manual

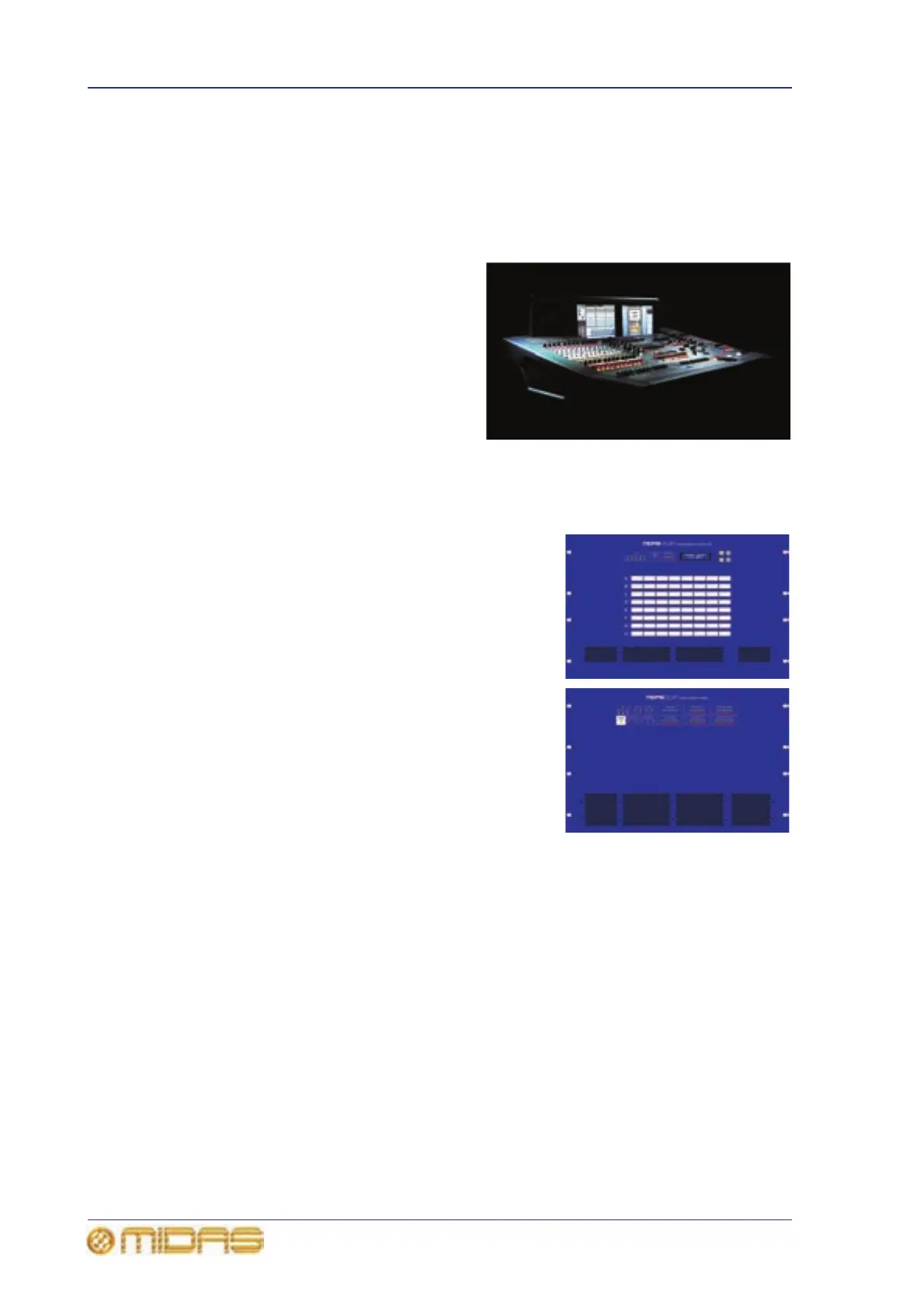

System components (standard supply)
The PRO6 Live Audio System is modular, allowing for some variations in physical
placement and system size. The standard PRO6 touring system package is configured
as a 14U rack (containing two DL3n1 units) in a single, easily portable flight case, with
an equally portable, flight-cased control surface and minimal cabling. This package
comprises:
• 1-off PRO6 Control Centre (in a flight
case). Its user-configurable modular
I/O rack (rear panel) will be populated
with the following modules (from top to
bottom):
• DL443 analogue Jack I/O module,
providing eight Jack line inputs and
eight Jack line outputs.
• DL441 analogue input (mic) module,
providing eight balanced mic/line
inputs.
• DL442 analogue output module, providing eight balanced line outputs.
• 1-off main 14U rack (in a flight case), which houses:
• 1-off DL351 Modular I/O. This is populated with
seven DL441 analogue input modules (56 main
inputs) and a DL442 analogue output module.
There are a total of 56-off XLR mic/line inputs
provided on the system.
• 1-off DL371 Audio System Engine. This is
populated with five cards, the two empty slots
being blanked off. (If the optional N+1
redundant DSP module card is fitted, there will
be six cards and one empty slot.)
• 4-off interconnecting (N+1) rack Cat 5e copper
cables.
• 2-off interconnecting (dual redundant) gigabit
HyperMac Cat 5e copper cables, each 100 m long.
• 8-off mains cables.
FOH and MON
The PRO6 Live Audio System can be used as a front of house (FOH) or stage monitor
(MON) system.
System buses
The PRO6 has comprehensive system buses to suit demanding applications,
comprising:
• 6-off solo buses, routable from all locations and allowing for dual operator and 5.1
use.
• 3-off master buses, routable from the 56 inputs and eight aux inputs, and six aux
buses.
