Filters

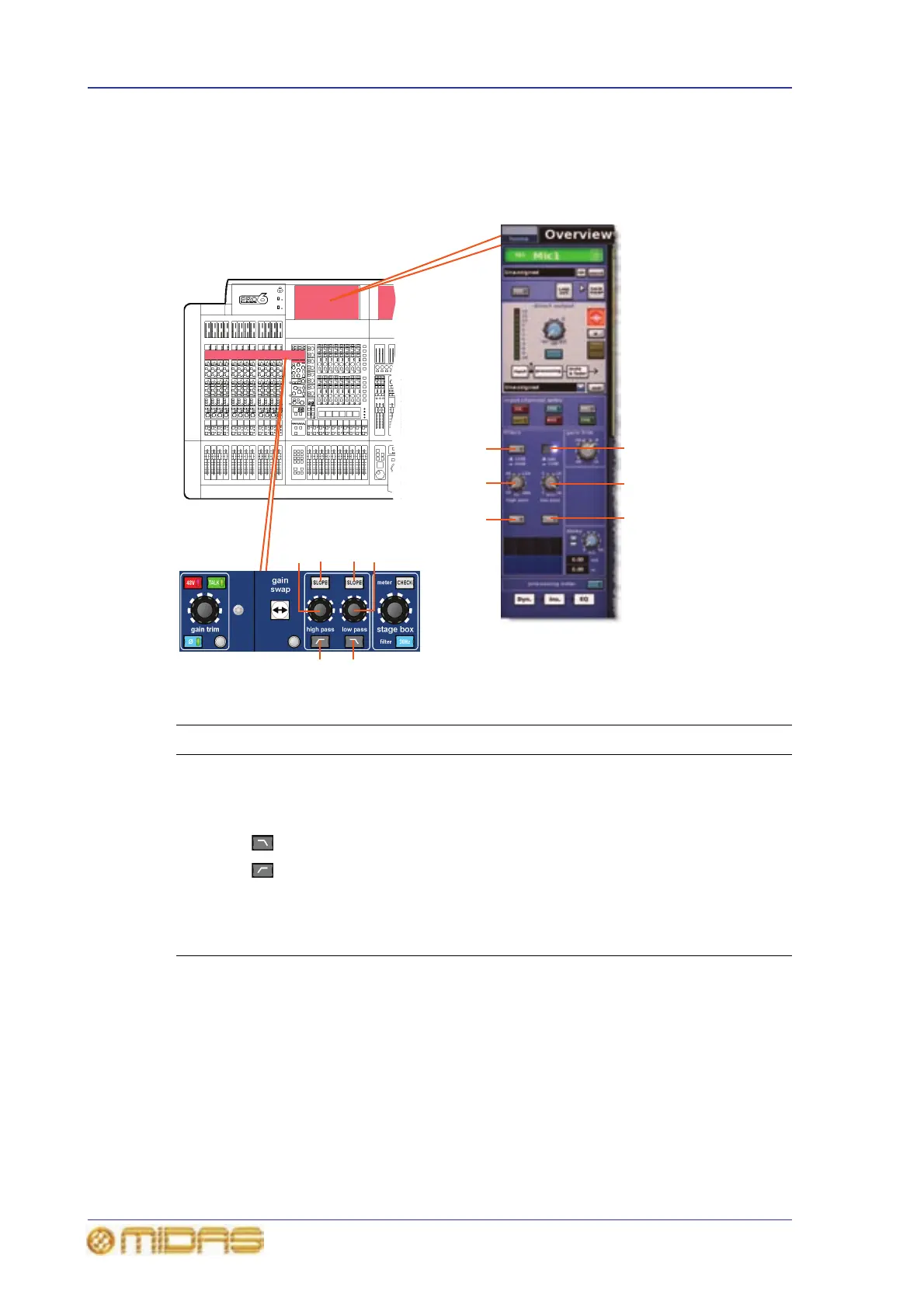

The following diagram shows the parameters of the filters section affected by stereo
linking.
Item Control Parameter
1 SLOPE pushbutton Low pass filter slope 6dB or 12dB
2
low pass control
knob
Low pass filter frequency
3
/[IN] switch
Low pass filter in/out
4
/[IN] switch
High pass filter in/out
5
high pass control
knob
High pass filter frequency
6 SLOPE pushbutton High pass filter slope 12dB or 24dB
1
3
2
6
4
5
6
1
Configuration
processing area in GUI
channel strip
5
4
2
3
