Inputs 503
XL8 Live Performance System
Owner’s Manual
Dynamics

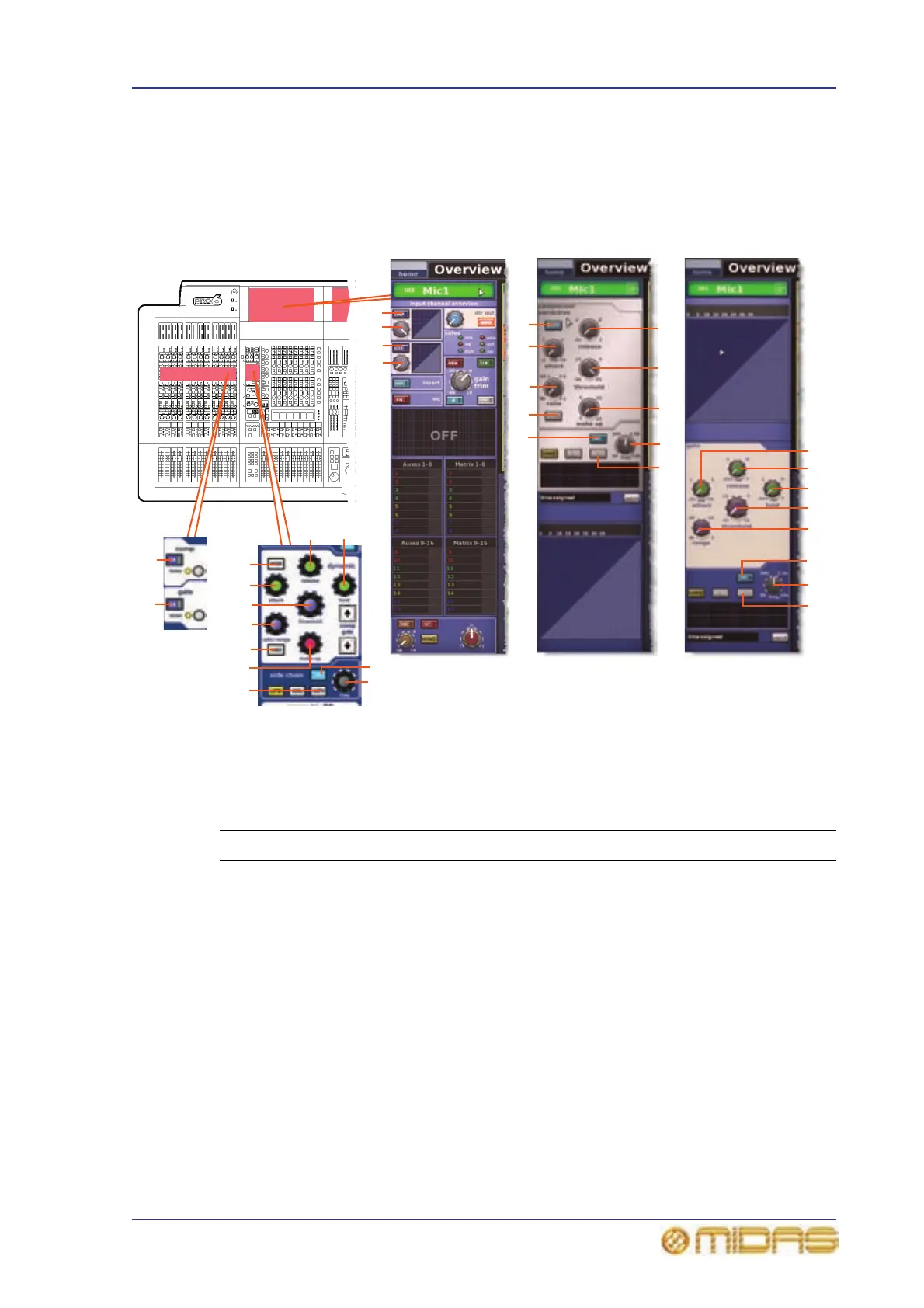

The following diagram shows the compressor and gate parameters of the dynamics
section affected by stereo linking.
Note: Only the corrective compressor is shown above, but this is typically the same for
the other compressor modes (adaptive, creative and vintage).
Item Control Parameter
1 ON/[CMP] switch Compressor on/off
2 threshold control
knob
Compressor threshold
3 release control knob Compressor release
4 make up control
knob
Compressor make up gain
5 attack control knob Compressor attack
6 ratio/range/[ratio]
control knob
Compressor ratio
7 MODE pushbutton Compressor mode: corrective, adaptive, creative
or vintage
8 KNEE pushbutton Compressor knee: hard, medium or soft
9 IN switch Compressor sidechain in/out
8
3/14
5/15
6/16
10/19
7
Compressor
processing area in
GUI channel strip
Gate processing
area in GUI
channel strip
17
2/13
4
input channel
overview in GUI
channel strip
2
13
1
12
14
17
13
16
15
19
18
20
3
2
4
8
9
7
10
11
6
5
1
12
11/20
9/18
