142 Chapter 15: Graphic Equaliser (GEQ)
PRO6 Live Audio System
Owner’s Manual
>> To patch a source to a GEQ
1 Open the window of the GEQ.
2 Open the GEQ source drop-down list. (An unpatched GEQ will have “None”
displayed in the text field.)
3 In the drop-down list, click the source
you want. For example, “Aux Send
3”. The new patching assignment will
appear in the source name field (as
shown right) and in the border on the
left of GEQ panel (see Table 19
“Graphic EQs screen” on page 139).
4 Click CLOSE to accept the change
and close the GEQ’s window.

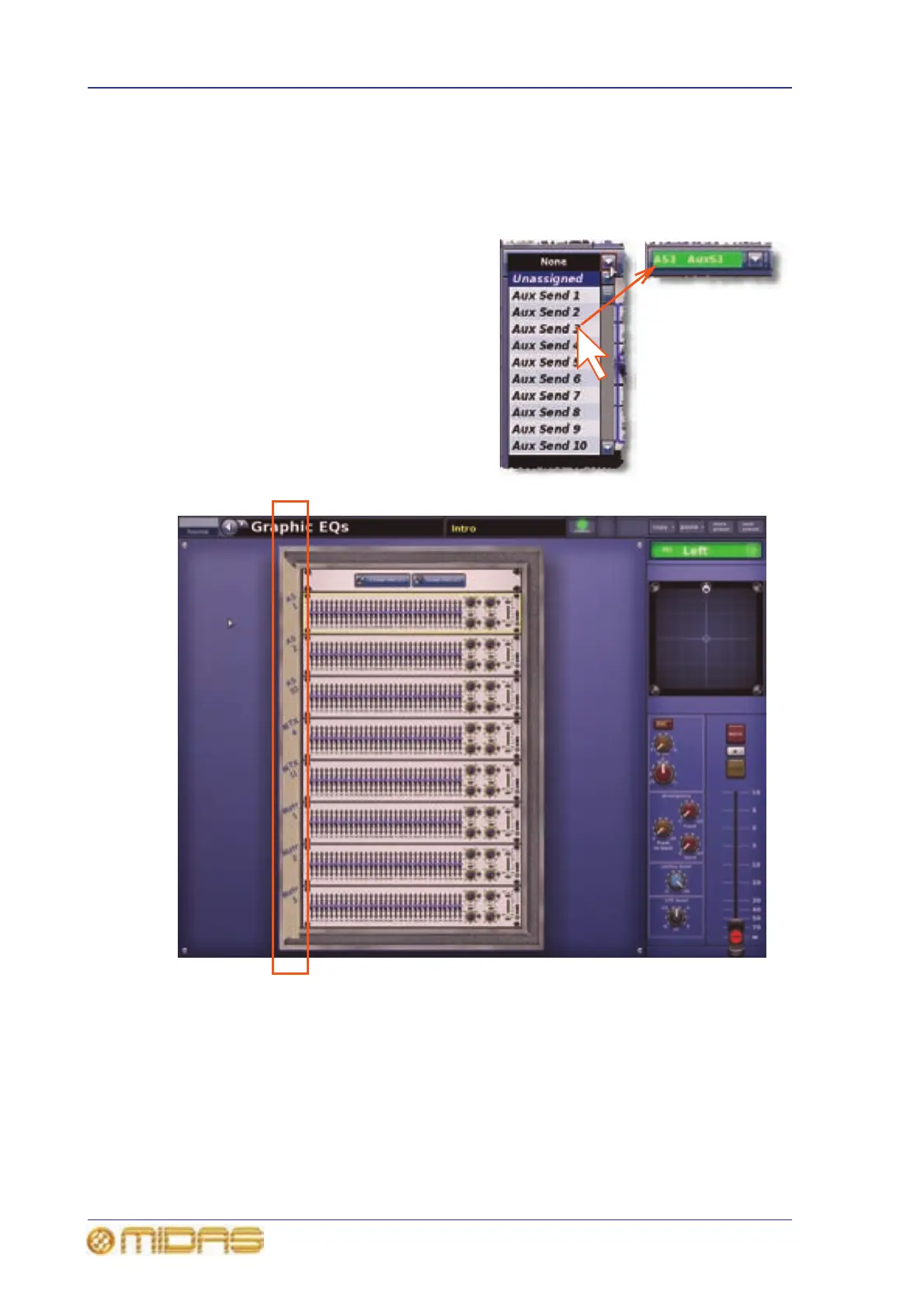

In the following typical example, each GEQ
in the rack has been assigned, as indicated
by the text to the left of each unit
(highlighted by the orange box).
