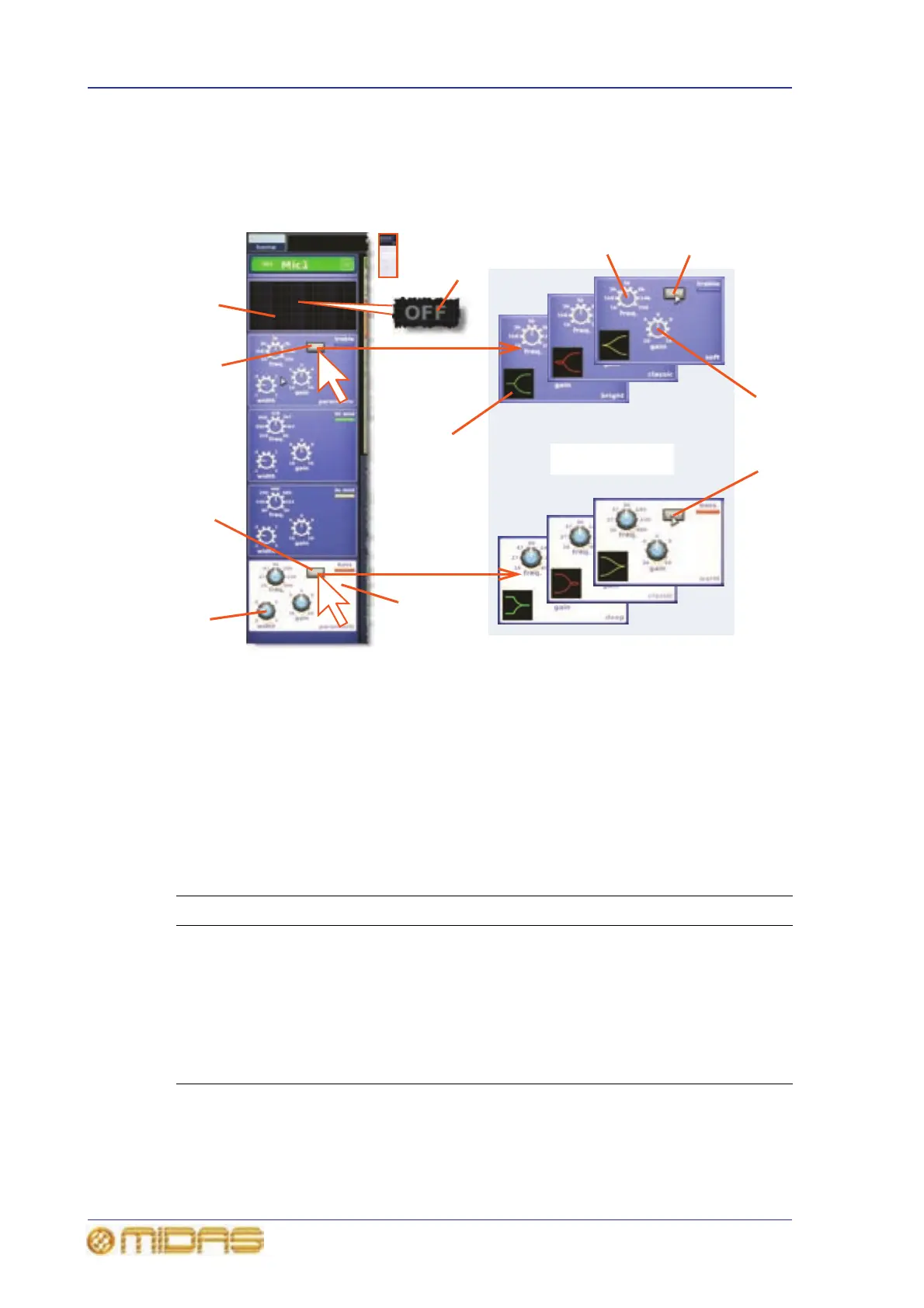

In the GUI channel strip, the EQ processing area (shown below) displays all four bands
simultaneously and has a graph that shows a colour-coded EQ envelope for each
selected band. Here, you can view the settings of the four bands simultaneously. The
GUI also shows the ranges available for each control knob and indicates the active
band, which is distinguished by its cream-coloured background.
The following table illustrates the recommended uses of the treble and bass shelving
modes.
Table 16: Recommended band mode usage
Band Mode Best
Treble Bright On single source material
Treble Classic All round EQ
Treble Soft For gentle shaping of pre-mixed material
Bass Deep On single source material
Bass Classic All round EQ
Bass Warm For gentle shaping of pre-mixed material
6
11
10 Graph of EQ envelope (see “EQ graph” on
page 277).
11 Highlighted section indicates active band.
12 Icon representing the shape of the
signal’s envelope; note how the treble modes
point to the left and the bass ones to the right.
13 “OFF” is displayed when the EQ is
switched off.
13
9
Treble and bass
shelving modes
9
9
10
11
8
7
12
