Midas PRO6

392 Appendix K: Parameters Affected By Scope
XL8 Live Performance System
Owner’s Manual
Configuration

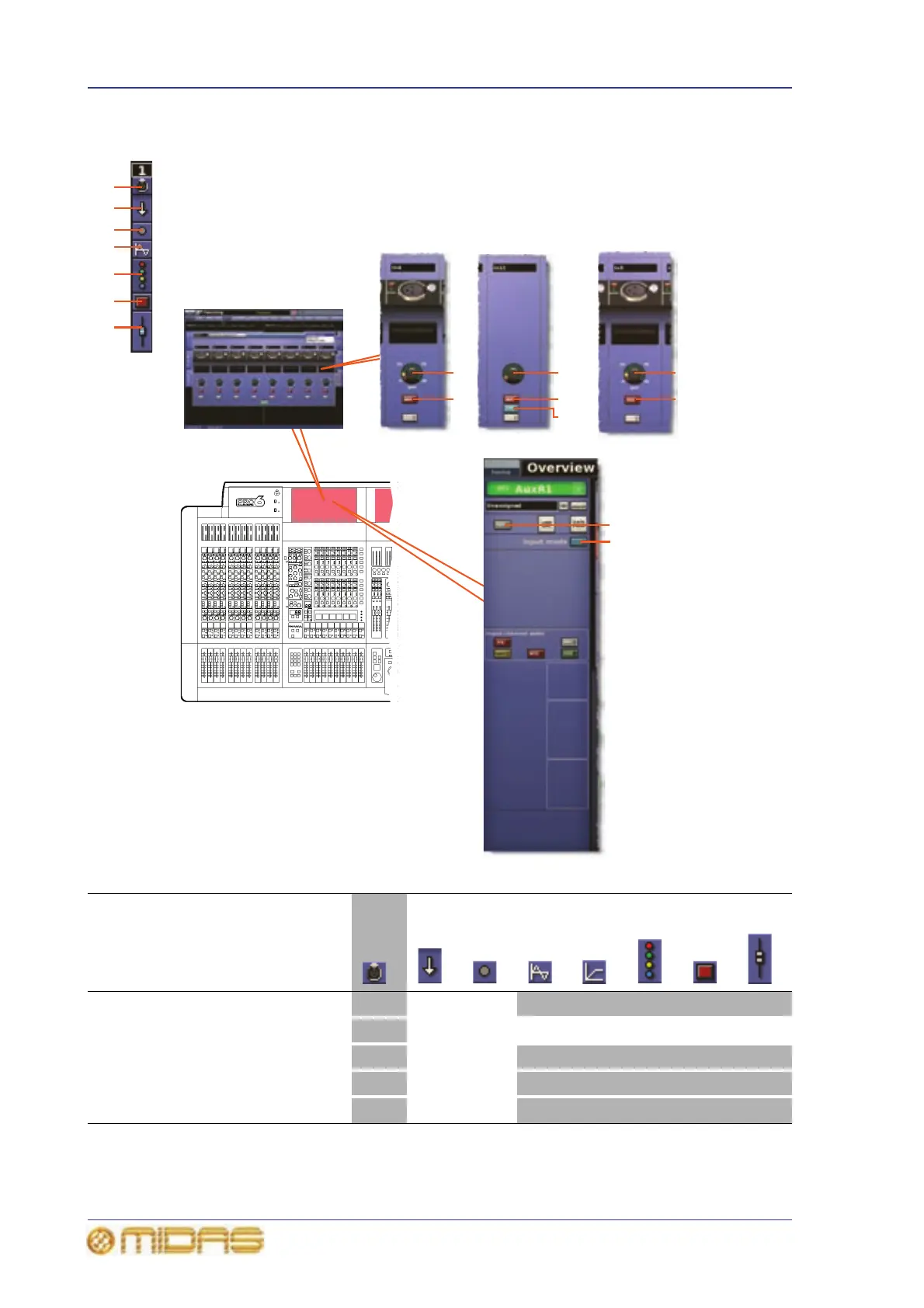

The following diagram details the scoped areas of the mic section in the return
channels.
ABCDEFGH
Item Parameter
1 Input zone N/A Yes Yes N/A N/A N/A N/A N/A
2 Link
N/A No No No No No No No
3 Gain of remote amplifier
N/A Yes Yes N/A N/A N/A N/A N/A
4 48V phantom gain
N/A Yes Yes N/A N/A N/A N/A N/A
5 30Hz filter
N/A Yes Yes N/A N/A N/A N/A N/A
D
F
G
H
B
C
A
1
2
DL351 Modular I/O
analogue input card
Configuration
processing area in
GUI channel strip
Mic splitter
channel
3
4
3
4
5
3
4
Line I/O analogue
input channel
