Appendix K: Parameters Affected By Scope
XL8 Live Performanc
e System
Owner’s Manual
Insert

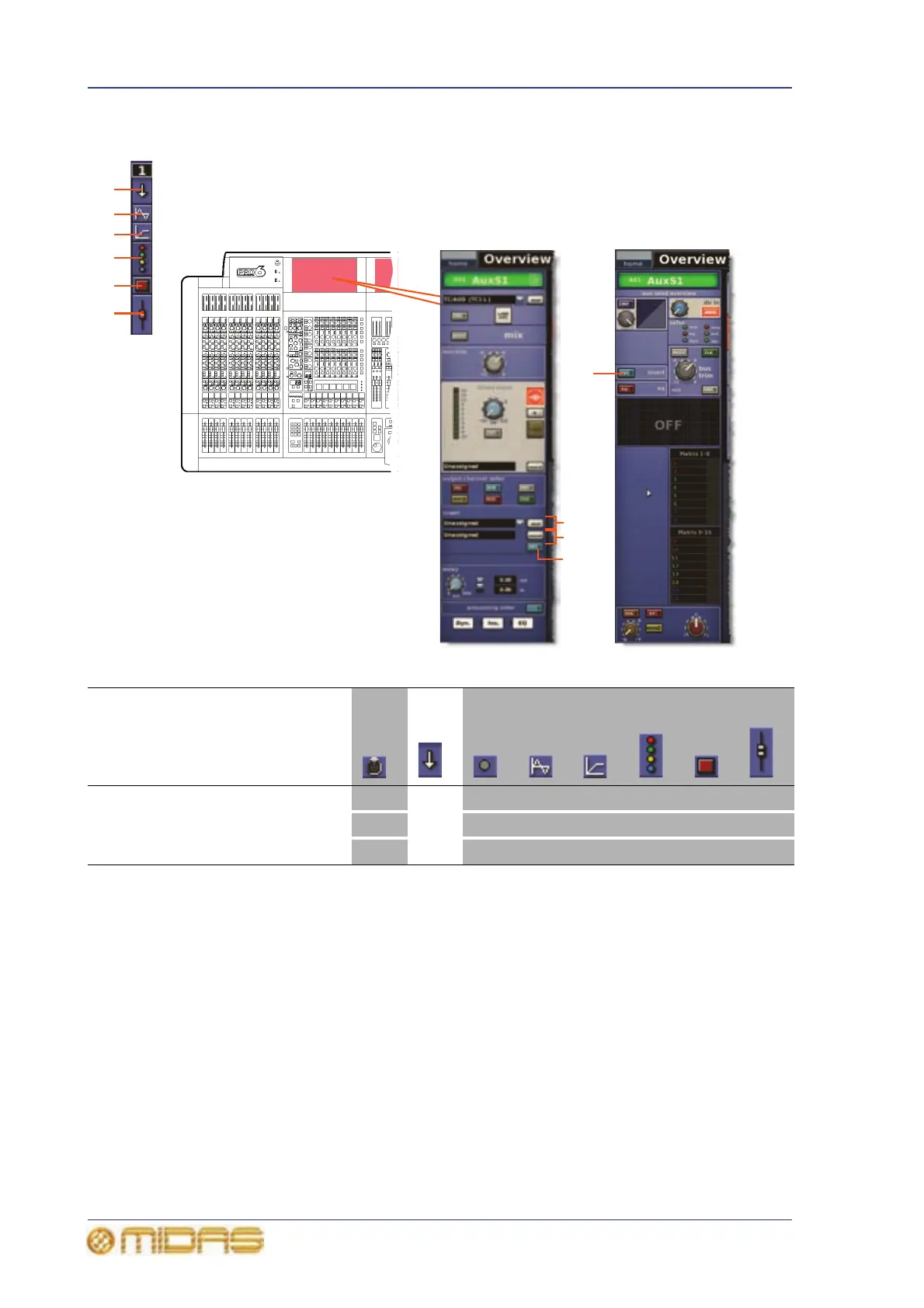

The following diagram details the scoped in
sert parameters of the aux channels.
AB
C
D
E
F
G
H
Item
Parameter
1
In/out
N/A
Yes
N/A
N/A
N/A
N/A
N/A
N/A
2
Insert send destination
N/A
No
N/A
N/A
N/A
N/A
N/A
N/A
3
Insert return source
N/A
No
N/A
N/A
N/A
N/A
N/A
N/A
E
F
G
H
B
D
2
3
1
Insert and configuration
processing area in GUI
channel strip
1
aux send overview in
GUI channel strip
425
427
