GEQ rack
419
XL8 Live Performance System
Owner’s Manual
GEQ

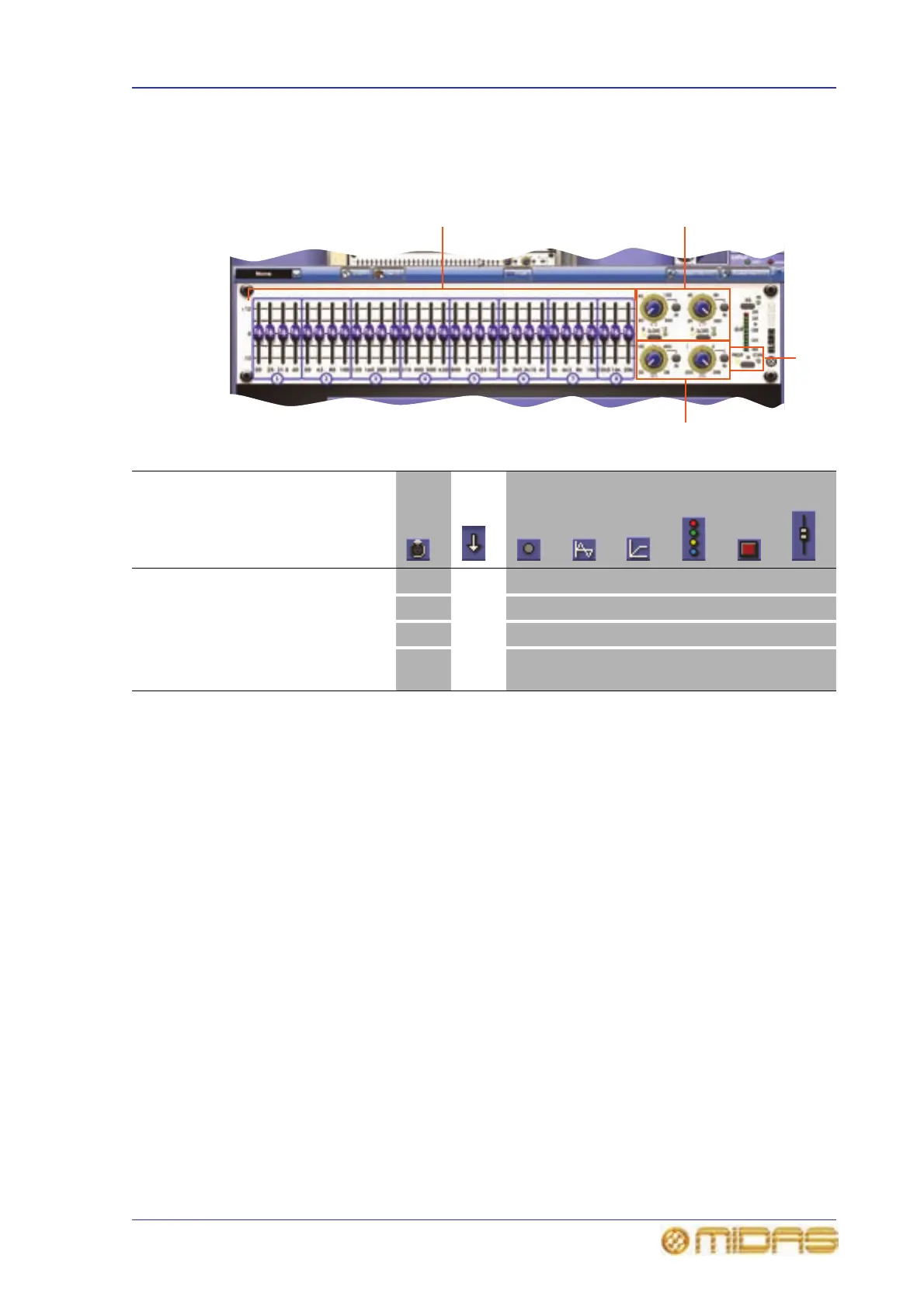

The following diagram
details the scoped pa
rameters of the GEQs, and shows the GEQ
window on the GUI screen.
AB
C
D
E
F
G
H
Item
Parameter
1
EQ band gains
N/A
Yes
N/A
N/A
N/A
N/A
N/A
N/A
2
HPF and LPF
N/A
Yes
N/A
N/A
N/A
N/A
N/A
N/A
3
Notch filters
N/A
Yes
N/A
N/A
N/A
N/A
N/A
N/A
4
GEQ mode (proportiona
l
/
constant Q)
N/A
Yes
N/A
N/A
N/A
N/A
N/A
N/A
2
1
3
4
444
446
