Inputs 431
XL8 Live Performance System
Owner’s Manual
DYN (dynamic) safe

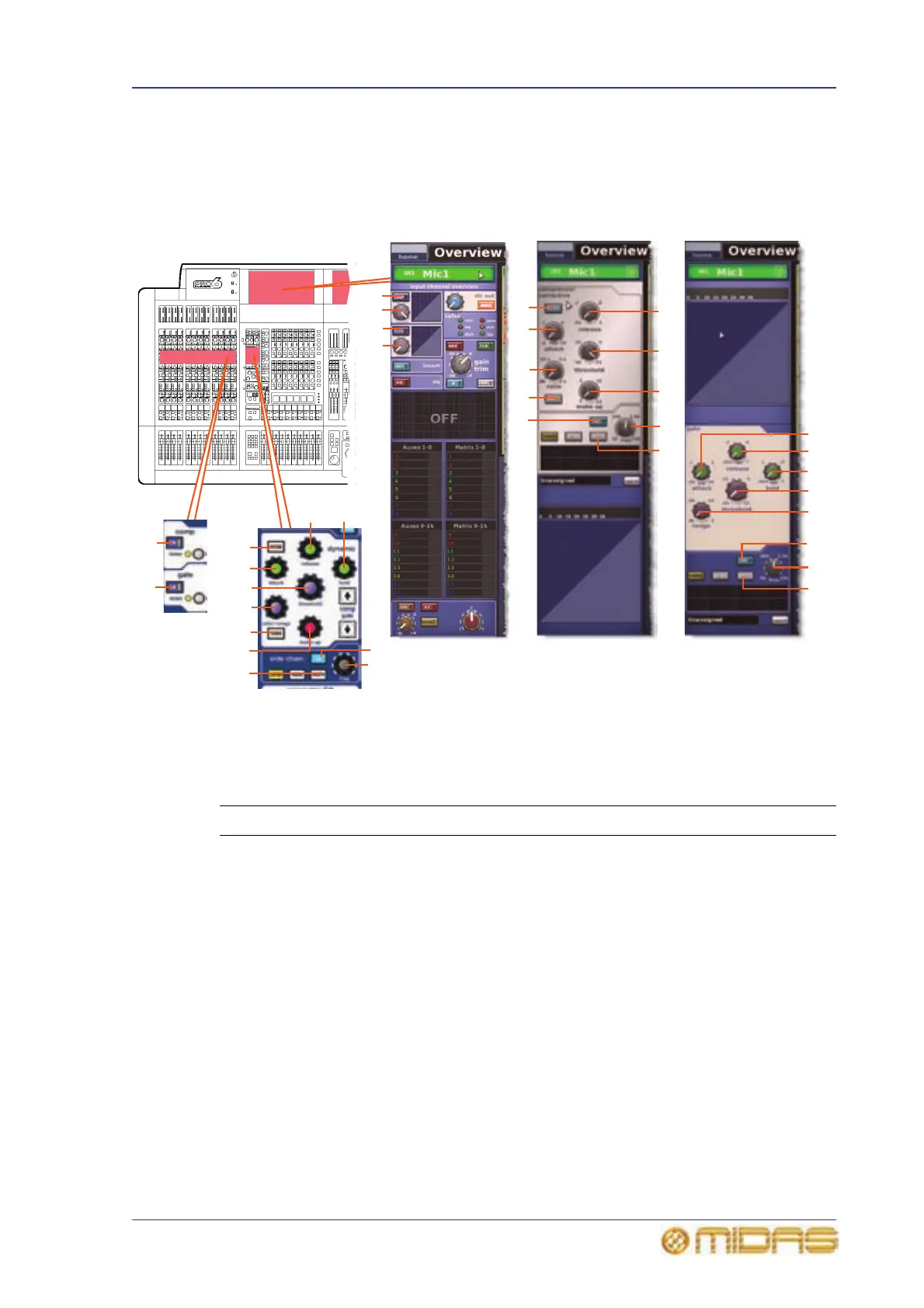

The following diagram details the parameters in the inputs protected by DYN safe.
Note: Only the corrective compressor is shown above, but this is typically the same for
the other compressor modes (adaptive, creative and vintage).
Item Control Parameter
1 ON switch Compressor on/off
2 threshold control
knob
Compressor threshold
3 release control knob Compressor release
4 make up control
knob
Compressor make up gain
5 attack control knob Compressor attack
6 ratio/range/[ratio]
control knob
Compressor ratio
7 MODE pushbutton Compressor mode: corrective (shown above),
adaptive, creative or vintage
8 KNEE pushbutton Compressor knee: hard, medium or soft
9 IN switch Compressor sidechain in/out
10 freq control knob Compressor sidechain frequency
