EQ safe

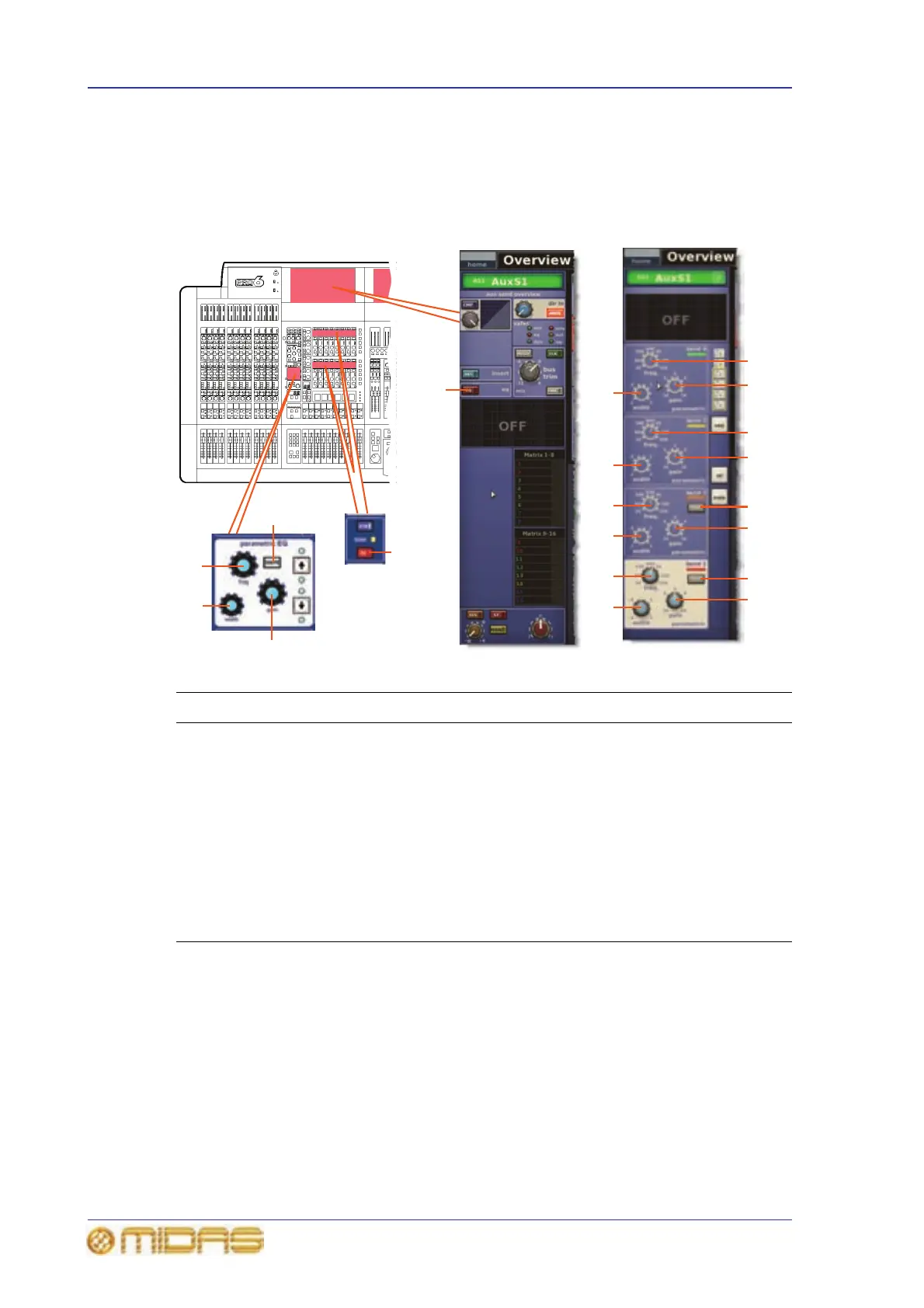

The following diagram details the parameters in the auxes protected by the EQ safe.
* Not shown in diagram.
Note: Although band 6 is not shown above, the items in the table also apply. This
band has items 2, 3 and 4, and also item 7.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5 SHAPE switch Band 1 shelving mode: bell, warm, high pass 6dB
or high pass 12dB
6 SHAPE switch Band 2 shelving mode: bell or high pass 24dB
7* SHAPE switch Band 6 shelving mode: bell, soft, low pass 6dB or
low pass 12dB
