Auxes (Aux Sends) 443

XL8 Live Performance System

Owner’s Manual

FADER safe

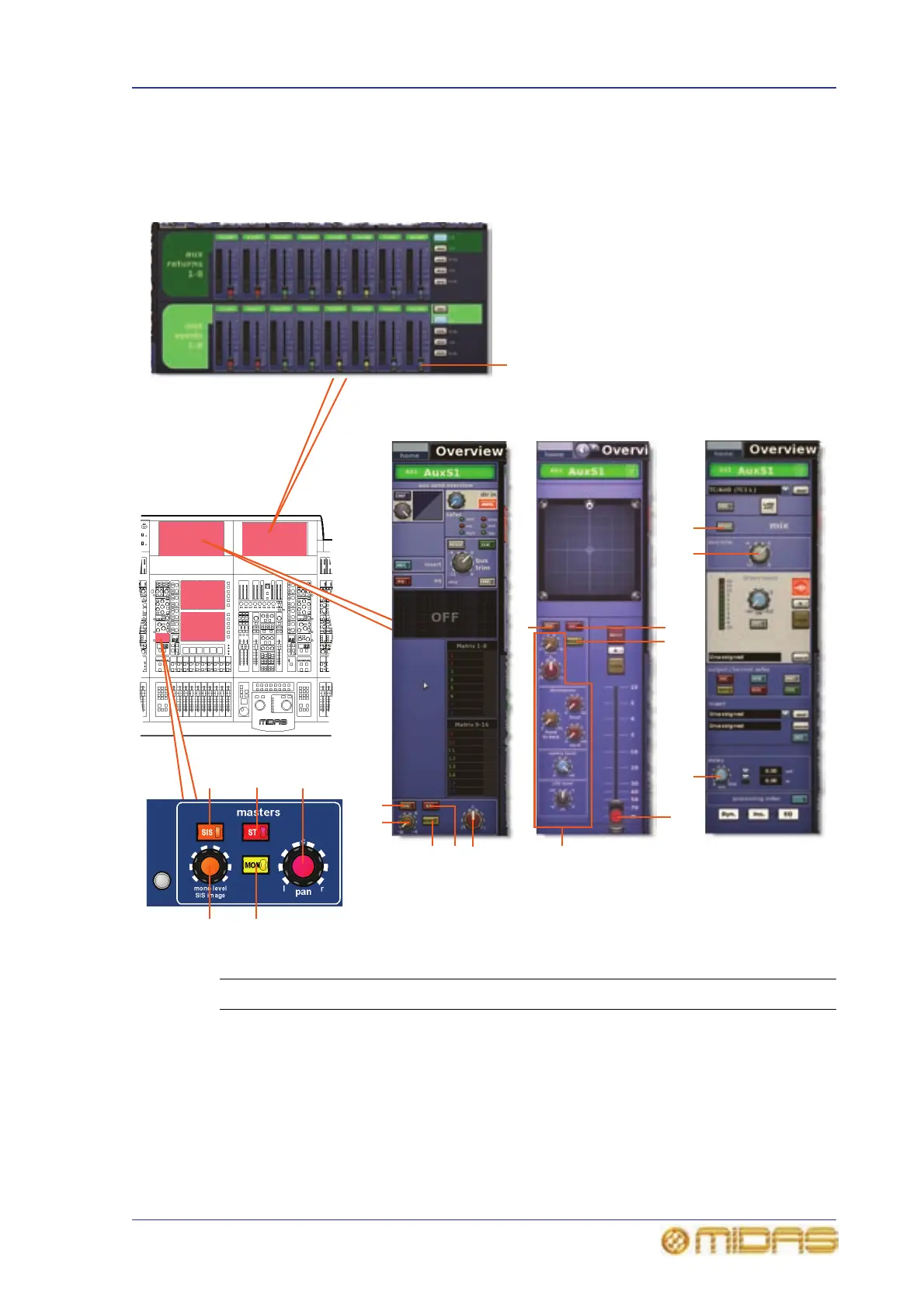

The following diagram details the parameters of the auxes protected by the FADER

safe.

Item Control Parameter

1 Fader Fader level

2 ST switch Stereo routing

3 MON switch Mono routing

4 SIS switch Spatial imaging system in/out

5 Panning control knobs Surround sound panning (includes all surround

parameters)

6 bus trim control knob Bus trim level

Masters processing

area in GUI

channel strip

aux send

overview in GUI

channel strip

Insert and

configuration

processing area in

GUI channel strip
