EQ safe

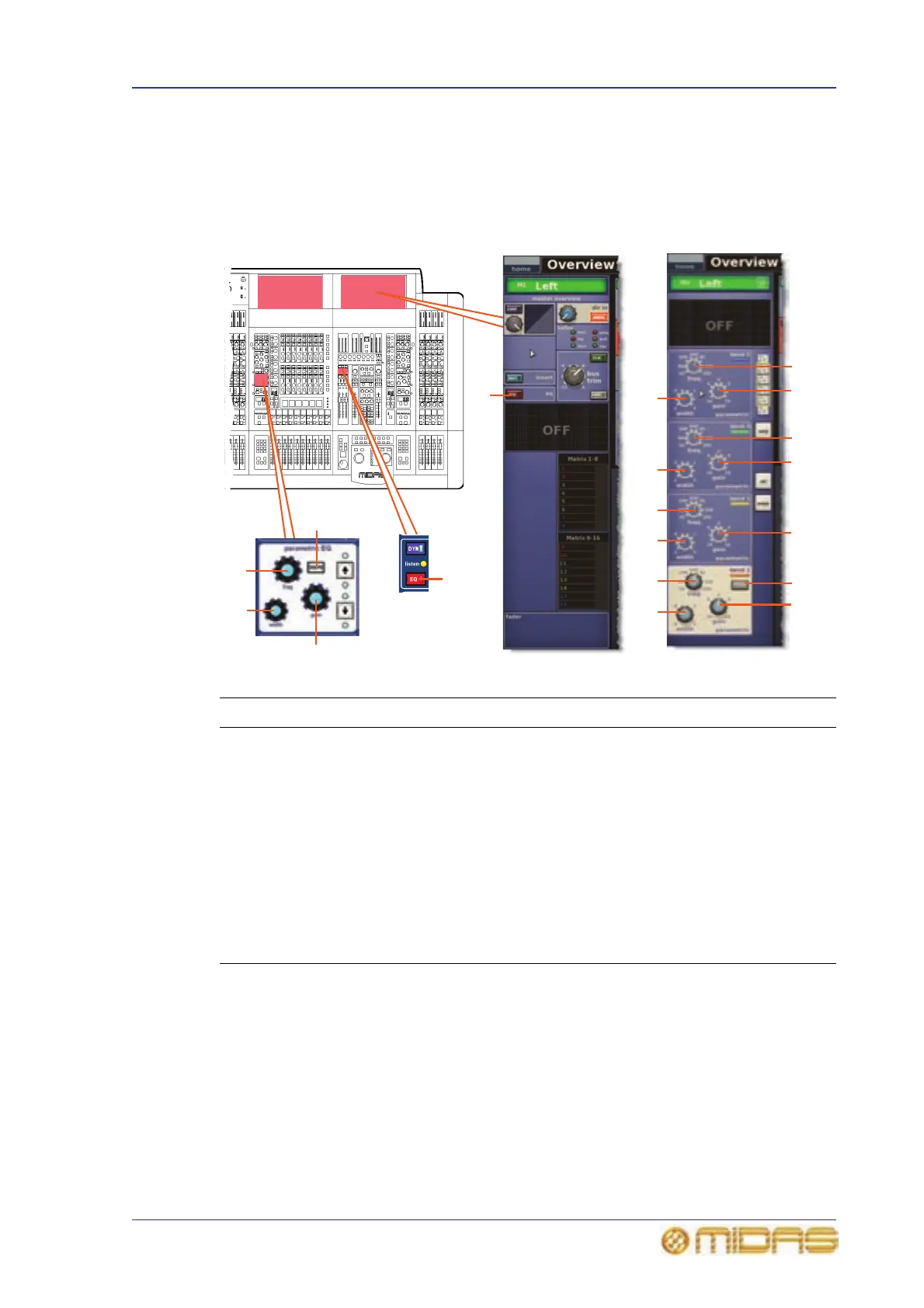

The following diagram details the master parameters protected by the EQ safe.
* Not shown in diagram.
Note: Although bands 1 and 6 are not shown above, the items in the table also apply.
Both bands have items 2, 3 and 4. Additionally, band 1 has item 6, and band 6 has
item 5.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5* SHAPE switch Selects band 6 shelving modes: bell, soft, low
pass 6dB or low pass 12dB
6* SHAPE switch Selects band 1 shelving modes: bell, warm, high
pass 6dB or high pass 12dB
7 SHAPE switch Selects band 2 shelving modes: bell or high pass
24dB
