Midas PRO6

Inputs 475
XL8 Live Performance System
Owner’s Manual
EQ
This section shows the parameters of the input EQ section affected by copy and paste.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5 SHAPE switch Treble shelving mode: peaking, bright, classic or
soft
6 SHAPE switch Bass shelving mode: peaking, deep, classic or
warm
7 SLOPE pushbutton High pass filter slope 12dB or 24dB
8 SLOPE pushbutton Low pass filter slope 6dB or 12dB
9 high pass control
knob
High pass filter frequency
10 low pass control
knob
Low pass filter frequency
11
/[IN] switch
High pass filter in/out
12
/[IN] switch
Low pass filter in/out
1
4
3
5/6
2
7
8
5
3
4
7
2
3
4
2
3
4
6
2
3
4
1
2
8
9
10
11
12

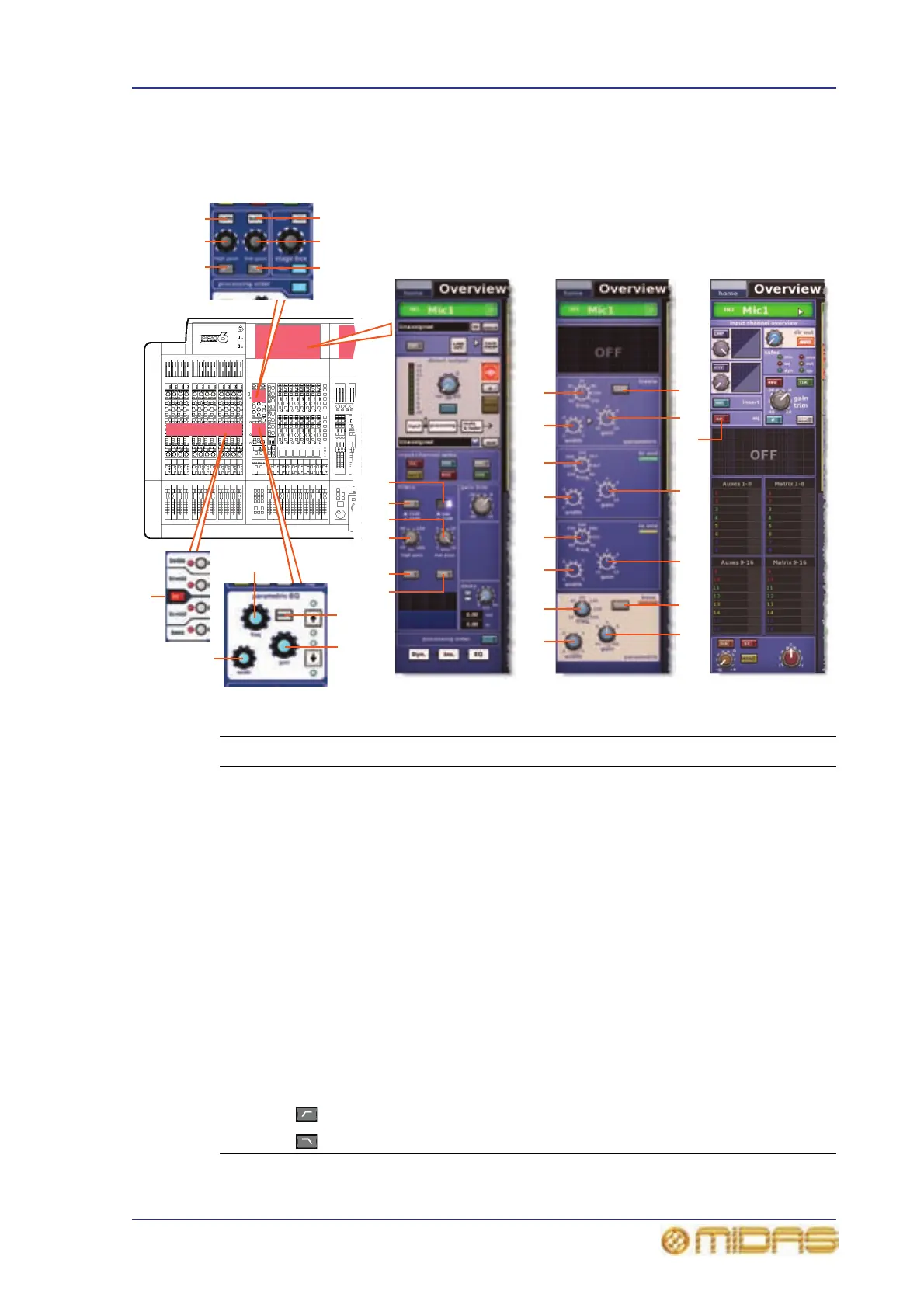

EQ processing area
in GUI channel
strip
input channel
overview in GUI
channel strip
Configuration
processing area in
GUI channel strip
9
11
10
12
