Master 495
XL8 Live Performance System
Owner’s Manual
Gate
Not applicable.
EQ (GEQ)

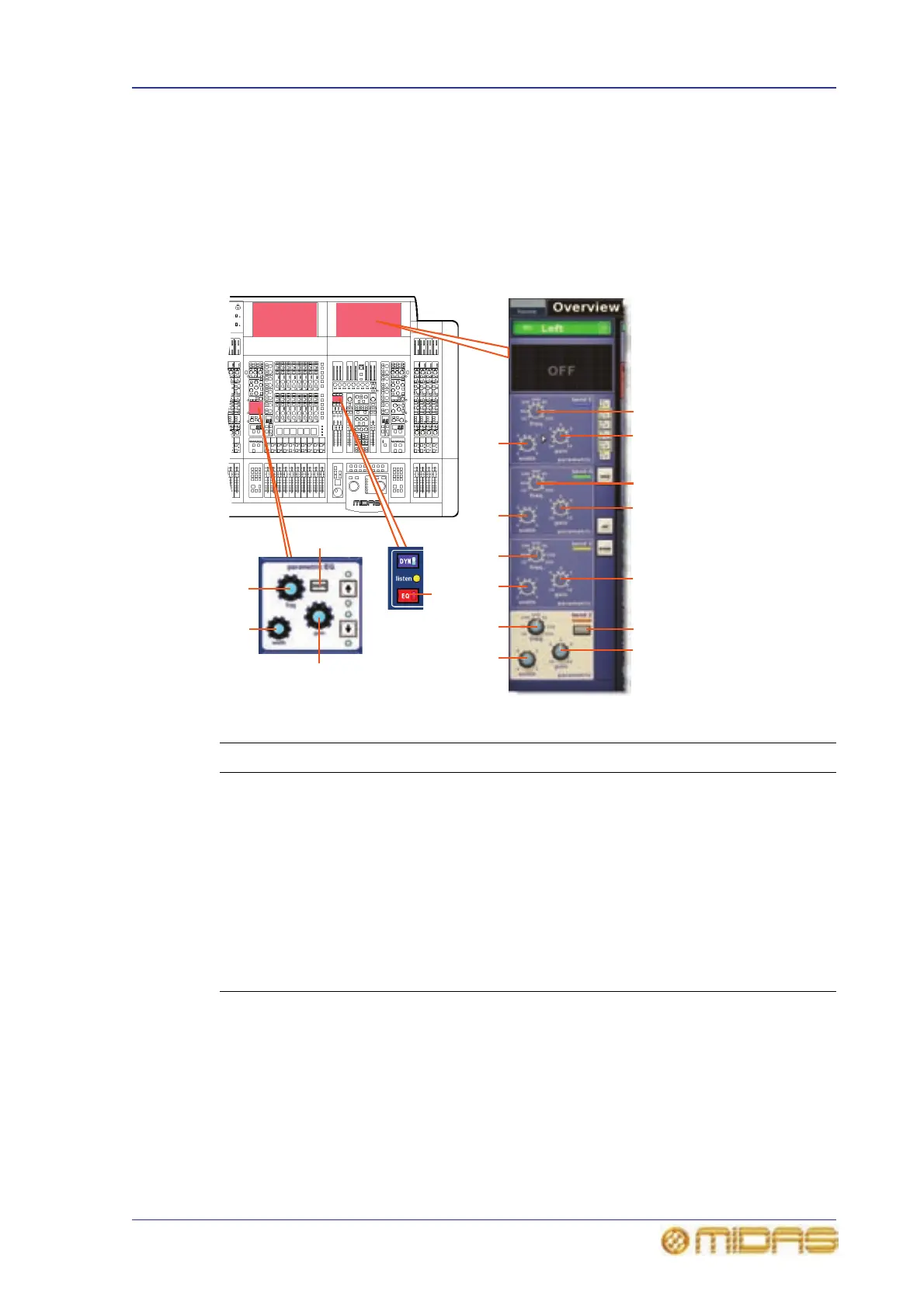

The following diagram shows the parameters of the EQ section (including the GEQ)
affected by copy and paste.
* Not shown in diagram.
Note: Although bands 1 and 6 are not shown above, the items in the table also apply.
Both bands have items 2, 3 and 4. Band 1 also has item 7, and band 6 also has item 5.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5* SHAPE switch Band 6 shelving mode: bell, soft, low pass 6dB or
low pass 12dB
6 SHAPE switch Band 2 shelving mode: bell or high pass 24dB
7* SHAPE switch Band 1 shelving mode: bell, warm, high pass 6dB
or high pass 12dB
1
EQ processing
area in GUI
channel strip
4
3
2
5/6/7
2
4
3
2
4
3
2
3
2
3
4
4
6
To Next Page
