64 Chapter 8: Patching
PRO6 Live Audio System
Owner’s Manual

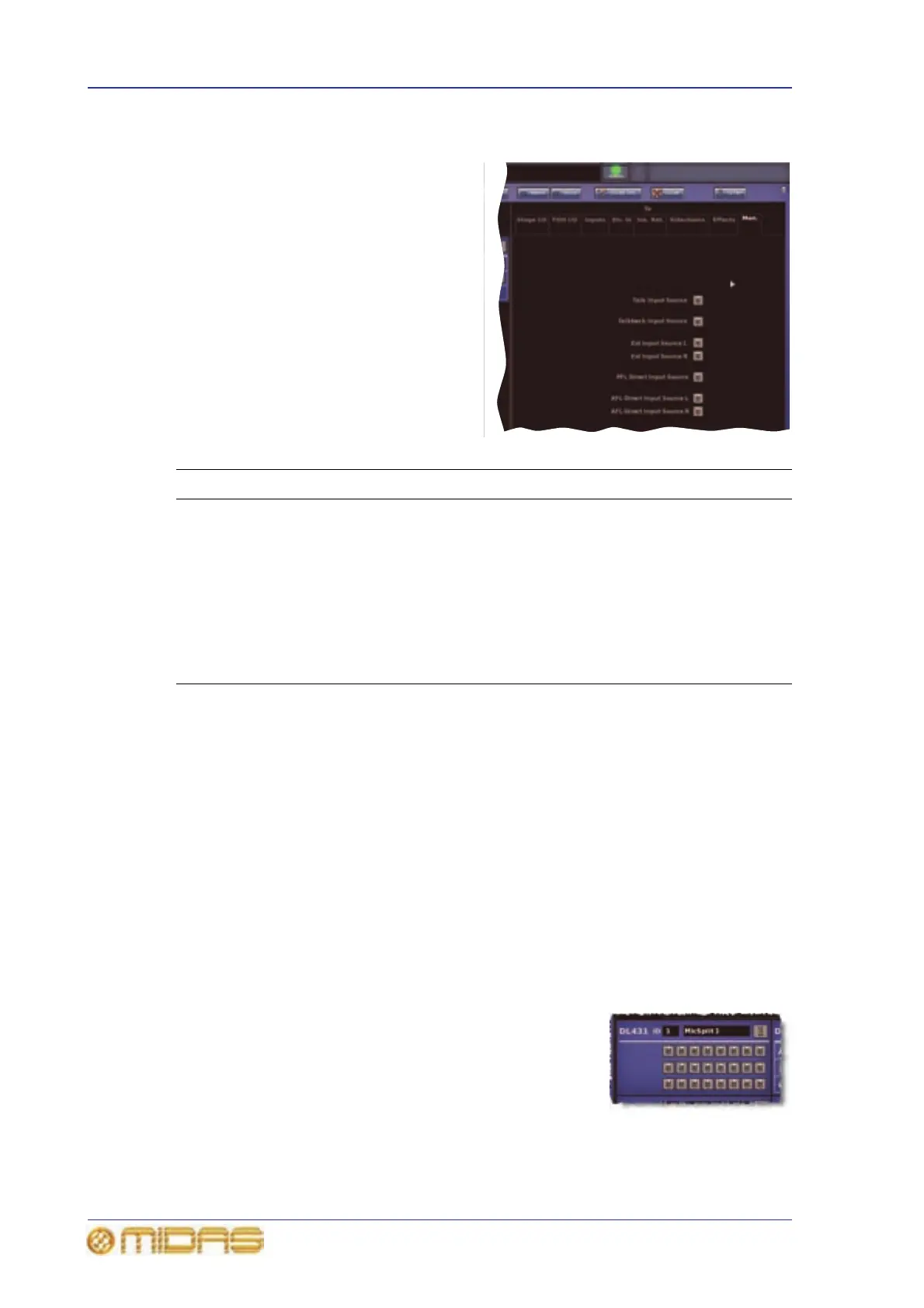

Mon. (Monitor) tab
The Mon. (Monitor) tab allows routing to
the communications and monitors.
These can also be found on the Monitors
screen (see Figure 29 “Monitor A and B in
the master bay” on page 198) as shown in
the following table.
Navigating to the Patching screen
You can access the Patching screen from various other screens in the GUI menu,
usually by clicking a source (source) or dest. (destination) button. When you click
one of these buttons, not only will the Patching screen open, but the appropriate tab in
the From/To section will be open as well. For a full list of patching routing on the
PRO6, see
About the devices on the stage and FOH I/O tabs
The following devices will, if selected (see “Setting up the I/O rack devices” on
page 71), appear on the I/O tabs of the From/To sections of the Patching screen.
The device options in the following subsections are available for selection from the
device type drop-down list in the AES50 Device Configuration window.
Mic Splitter option
The Mic Splitter device is the DL431 Mic Splitter.
For more information, go to our website
www.midasconsoles.com.
Mon. tab input Equivalent on the Monitors screen
Talk Input Source talk input
Talkback Input Source talkback input
Ext Input Source L external input L
Ext Input Source R external input R
PFL Direct Input Source pfl direct input
AFL Direct Input Source L afl direct input left
AFL Direct Input Source R afl direct input right
