Milestone LOGOS One - Back Side Connection Plate 230 V Version; Back Side Connection Plate 115 V Version

Milestone s.r.l.
MM098-002 – LOGOS ONE – Operator Manual
18

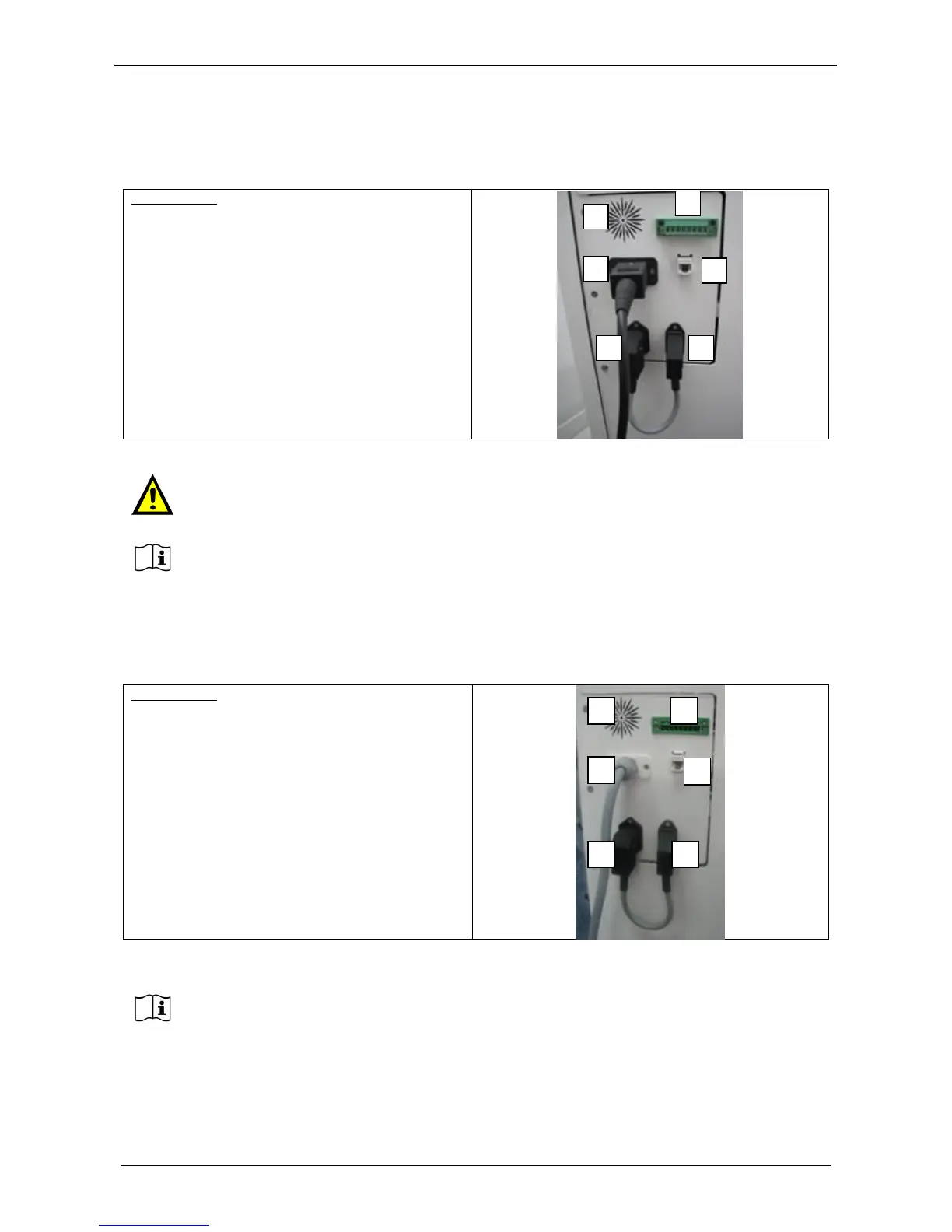

2.6.1 Back side connection plate 230V Version
On the back side of the LOGOS ONE are positioned the connection plates:
Description:
1. Speaker
2. Remote/external alarm connector
3. Ethernet/LAN plug
4. UPS side supply (controller power supply input)
5. UPS supplier socket (energy output to local ups
unit)
6. Main power supply
2.6.2 Back side connection plate 115V Version
On the back side of the LOGOS ONE are positioned the connection plates:
Description:
1. Speaker
2. Remote/external alarm connector
3. Ethernet/LAN plug
4. UPS side supply (controller power supply input)
5. UPS supplier socket (energy output to local ups
unit)
6. Main power supply
As separable power cord, it is strictly required to use power cord with wire size at least of
1.5mm² (equal to minimum AWG12). A size less of 1.5mm² (AWG12) cannot guarantee a
proper functionality of the unit and overheating of the power cord.
See also the Label of the instrument that provides some important information.
Always communicate the Serial Number of the unit to Customer Support.
See also the Label of the instrument that provides some important information.
Always communicate the Serial Number of the unit to Customer Support.
1
2
3
6
5
4
1
2
3
4
5
6
